NovaStar SP60 Pro

Name: NovaStar SP60 Pro
Brand: NovaStar
SKU: SP60 Pro
Availability: InStock

Premium sub-pixel LED controller with 20 Ethernet outputs, 17.69M sub-pixel capacity, Dynamic Booster, Image Booster, 2 independent 8K layers, and VMP software integration.

Contact for Pricing

✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time

Request a Quote

📄 Specifications V1.2.0

🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

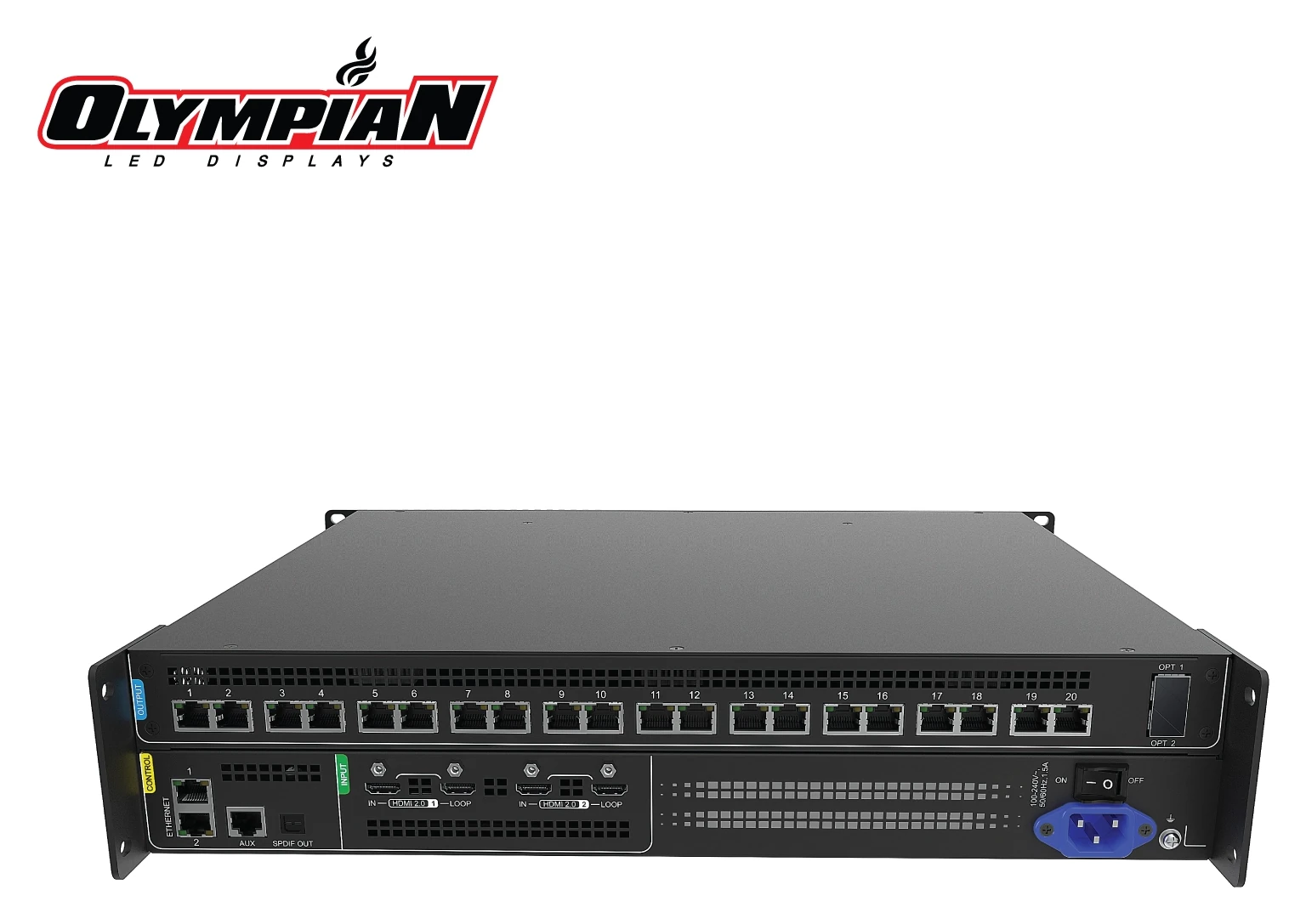

NovaStar SP60 Pro – COEX Series (view 2)

The SP60 Pro is a specialized LED display controller created by NovaStar specifically for sub-pixel (virtual pixel) screens. Equipped with 20 Ethernet ports and 2x 10G optical ports, it combines video processing and control functions with advanced sub-pixel rendering technology. Featuring 2x HDMI 2.0 inputs (with loop output), the SP60 Pro can work seamlessly with VMP (Vision Management Platform) software for enhanced operation and control. With support for mainstream sub-pixel layouts (Delta1, Delta3, Delta4, RGGB) and dynamic sub-pixel rendering technology offering three modes (Standard, Video, Document), it maximizes display content without changing physical pixel density. The controller features Dynamic Booster for real-time frame analysis to improve contrast and reduce power consumption by 20-40%, Image Booster 2.0 for enhanced image quality, and Full-grayscale calibration with NovaStar's high-precision system. Supporting 2 independent layers with up to 8K×2K resolution per layer, HDR10/HLG, 3D display, and ultra-low latency (less than 1ms in Send-Only mode), the SP60 Pro delivers exceptional visual performance for professional sub-pixel LED applications. The controller supports up to 128 customizable presets and includes comprehensive device monitoring capabilities.

Key Highlights

Specifically designed for sub-pixel (virtual pixel) LED screens

17.69 million sub-pixel load capacity

Supports Delta1, Delta3, Delta4, and RGGB sub-pixel layouts

Dynamic sub-pixel rendering with 3 modes: Standard, Video, Document

20x Gigabit Ethernet outputs — 659,722 px per port @ 60 Hz + 2x 10G optical portscapacity at other refresh rates →

2 independent layers with 8K×2K maximum resolution per layer

2x HDMI 2.0 inputs with loop output (up to 4K@60Hz or 8K@30Hz)

Dynamic Booster with 20-40% power savings and frame-by-frame optimization

Image Booster 2.0 for enhanced contrast, detail, and color

Full-grayscale calibration with C3200/CC60 camera support

HDR10 (SMPTE ST 2084, ST 2086) and HLG support


Ultra-low latency: 0 frame (less than 1ms) in Send-Only mode, 1 frame in All-In-One mode

3D display support with specialized receiving cards, emitters, and glasses

128 customizable presets for quick scene switching

HDCP 2.2 compliant (backwards compatible with HDCP 1.4/1.3)

SPDIF digital audio output

No rectangle restriction - load capacity based on actual pixel count

Mixed output via optical port and Ethernet

Built-in cascading control (up to 20 devices)

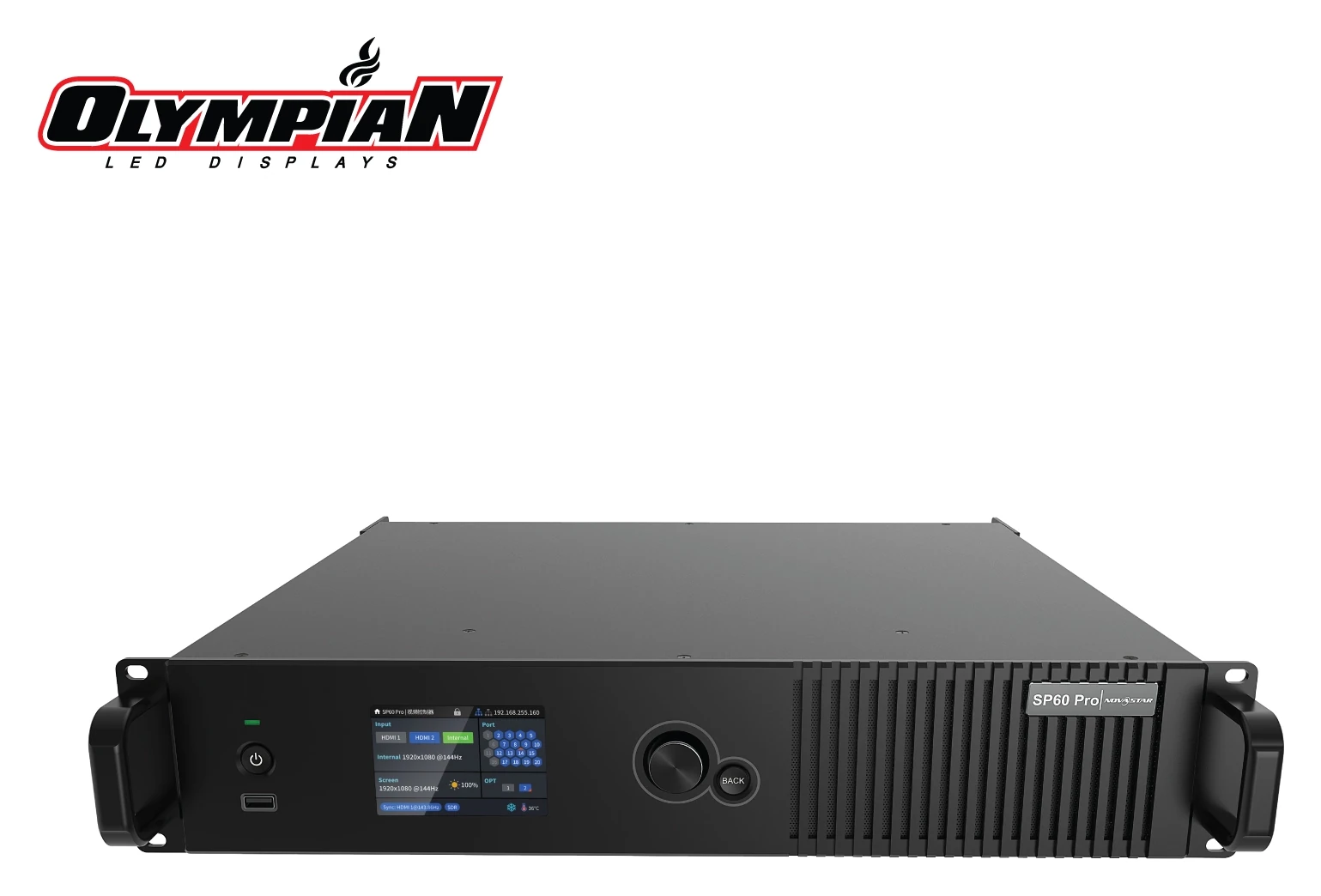

3.5-inch TFT touchscreen

VMP (Vision Management Platform) software integration


Compatible with A8s Pro, A10s Pro, MRV532, NV3210, BR624L, NS6323A receiving cards

Key Features

HDR

Tone-maps HDR sources onto the wall's own brightness range instead of clipping the highlights.

HDR10

Accepts HDR10 sources and maps their peak brightness onto what the wall can actually produce.

HLG

Accepts Hybrid Log-Gamma sources, the HDR format broadcast chains use.

Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.

Sub-Pixel

10G Fiber

10G optical I/O - single-mode twin-core reaches 10 km, multi-mode 300 m. SFP modules are not fitted at the factory.

Low Latency

Shortens the processing pipeline for live camera-to-wall work. Mutually exclusive with some scaling and effect features.

Dynamic Booster

Full-Grayscale Calibration

Preset

Saved scene setups - layout, sources and sizing - recalled in one action instead of being rebuilt live.

HDCP

Passes HDCP-protected sources, so consumer players and laptops display instead of showing a black or "protected content" frame.

SNMP Protocol

Art-Net Protocol

Cascading

Technical Specifications

Video Processing

Layers	2 layers
Maximum Pixels	17.69 million sub-pixels
Maximum Width	8192 pixels
Maximum Height	7680 pixels

Input Connectors

HDMI	2x HDMI 2.0 (with loop output, supports HDR10 and HLG, HDCP 2.2, max 4096×2160@60Hz or 8192×1080@60Hz, 10-bit and 8-bit)
AUDIO	1x SPDIF (digital audio output)

Input Resolution Capabilities

Input Resolutions

HDMI 2.0: up to 4096×2160@60Hz or 8192×1080@60Hz (Forced); Frame rates: 23.98-240 Hz

📊 Supported Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
4K — 4096×2160 (Forced)
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60
4K — 3840×2160
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60
2K1K — 2560×1440
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60/75/100
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/75/100/120
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/75/100/120
1K — 1920×1080
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60/72/75/100/120/144
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/72/75/100/120/144/240
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/72/75/100/120/144/240

📝 Important Notes:

Supports HDR10 and complies with SMPTE ST 2084 and SMPTE ST 2086 standards
Supports HLG (Hybrid Log-Gamma)
HDCP 2.2 compliant for HDMI inputs (backwards compatible with HDCP 1.4/1.3)
10-bit and 8-bit color depth support
Frame rate adaptive 23.98-240 Hz with decimal frame rate support
2x HDMI 2.0 inputs with loop output
Specifically designed for sub-pixel (virtual pixel) LED screens
Must be used with A8s Pro, A10s Pro, MRV532, NV3210, BR624L, or NS6323A receiving cards

Custom Resolution Calculator

Enter any resolution to calculate the maximum achievable frame rate for each input type. Bandwidth limits from NovaStar DCS (Device Configuration Schema).

Input Port

Width

Height

Color Format

Bit Depth

Presets:

Output & Connectivity

Ethernet Output	20x Gigabit Ethernet See per-port loading capacity
Fiber Output	2x 10G Fiber

Refresh	8-bit / port	8-bit / all 20 ports	10/12-bit / port	10/12-bit / all 20 ports
60 Hz	659,722	13,194,440	329,861	6,597,220
120 Hz	329,861	6,597,220	164,930	3,298,600
240 Hz	164,930	3,298,600	82,465	1,649,300

Physical Specifications

Power Input	100-240V~, 50/60Hz, 1.5A (82W max)
Dimensions	482.6 mm × 94.2 mm × 467.0 mm (19.0" × 3.7" × 18.4")
Net weight	7.4 kg (16.3 lbs)
IP Rating	IP20
Packing box	660.0 mm × 570.0 mm × 210.0 mm (26.0" × 22.4" × 8.3")

Working Modes

• All-In-One Controller

• Send-Only Controller

Software

COEX VMP 1.5.1
Compatible Software	VMP

COEX Series Comparison

Compare models in the COEX Series to find your perfect fit:

Model	Ports	Layers	Loading Capacity (60Hz)	Price	View
KU20 Lower Tier	6x Ethernet	-	3.9 million pixels	$927	View
MX20 Lower Tier	6x Ethernet	3 layers	3.9 million pixels	$1,667	View
MX30 Lower Tier	10x Ethernet	3 layers	6.5 million pixels	$2,584	View
CX40 Pro ⚡ 5G	6x 5G Ethernet	3 layers	9 million pixels	$8,048	View
MX40 Pro Lower Tier	20x Ethernet	4 layers	9 million pixels	$8,868	View
SP60 Pro You're Here	20x Ethernet	2 layers	17.69 million sub-pixels	Contact for Pricing	View
MX2000 Pro Upgrade Option	-	4 layers	Up to 35.38 million pixels	$4,417	View
MX6000 Pro Upgrade Option	-	4 layers	Up to 141 million pixels	$8,600	View

Tip: Select products above to compare detailed specifications side-by-side

In-depth comparisons: SP60 Pro vs KU20 · SP60 Pro vs MX20 · SP60 Pro vs MX30 · SP60 Pro vs CX40 Pro · SP60 Pro vs MX40 Pro · SP60 Pro vs MX2000 Pro · SP60 Pro vs MX6000 Pro

Frequently Asked Questions

What size LED wall can the SP60 Pro drive?

The SP60 Pro can drive 17.69 million sub- pixels with 20 Ethernet outputs, suitable for medium to large-scale LED displays.

Is the SP60 Pro suitable for rental applications?

Absolutely. The SP60 Pro is designed for professional rental, staging, and touring applications where reliability is critical.

What software controls the SP60 Pro?

The SP60 Pro is configured and controlled with VMP, a free download from Olympian LED.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
