NovaStar A8s Pro
A single A8s Pro supports resolutions up to 512×512@60Hz.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

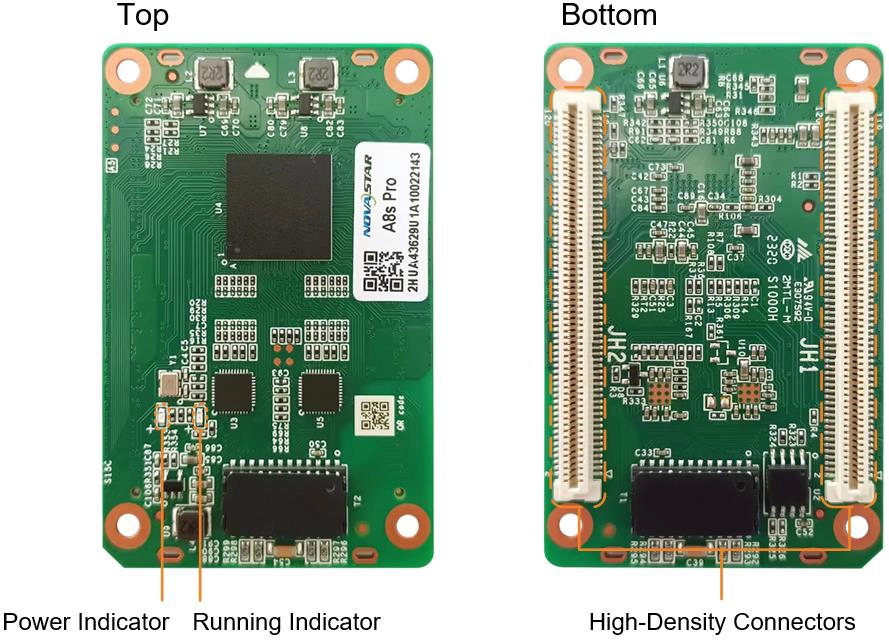

A single A8s Pro supports resolutions up to 512×512@60Hz. This receiving card supports the exclusive Multi-layer Grayscale Calibration, Thermal Compensation 2.0, and Image Booster 2.1 technologies of NovaStar. With other various functions, such as HDR, Pixel Level Brightness and Chroma Calibration, Seam Correction with Mobile Phones, Quick Adjustment of Dark or Bright Lines, Low Latency, 3D, Individual Gamma Adjustment for RGB, 90° Image Rotation, and Free Image Rotation, it can greatly improve the brightness, grayscale and color performance from every aspect, offering users an ultimate visual experience with a uniform, smooth and lifelike image. The A8s Pro uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 40 groups of parallel RGB data, 64 groups of serial data (expandable to 128 groups of serial data), or 30 groups of 4-LED sub-pixel data.
Key Highlights
Key Features
Technical Specifications
Output & Connectivity
| Ethernet Output | 1x Gigabit Ethernet |
Physical Specifications
| Dimensions | 70.0 mm × 45.0 mm × 8.3 mm (2.8" × 1.8" × 0.3") |
| Net weight | 17.2 g |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features — each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the A8s Pro for my LED modules?
The A8s Pro is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the A8s Pro?
The A8s Pro works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
