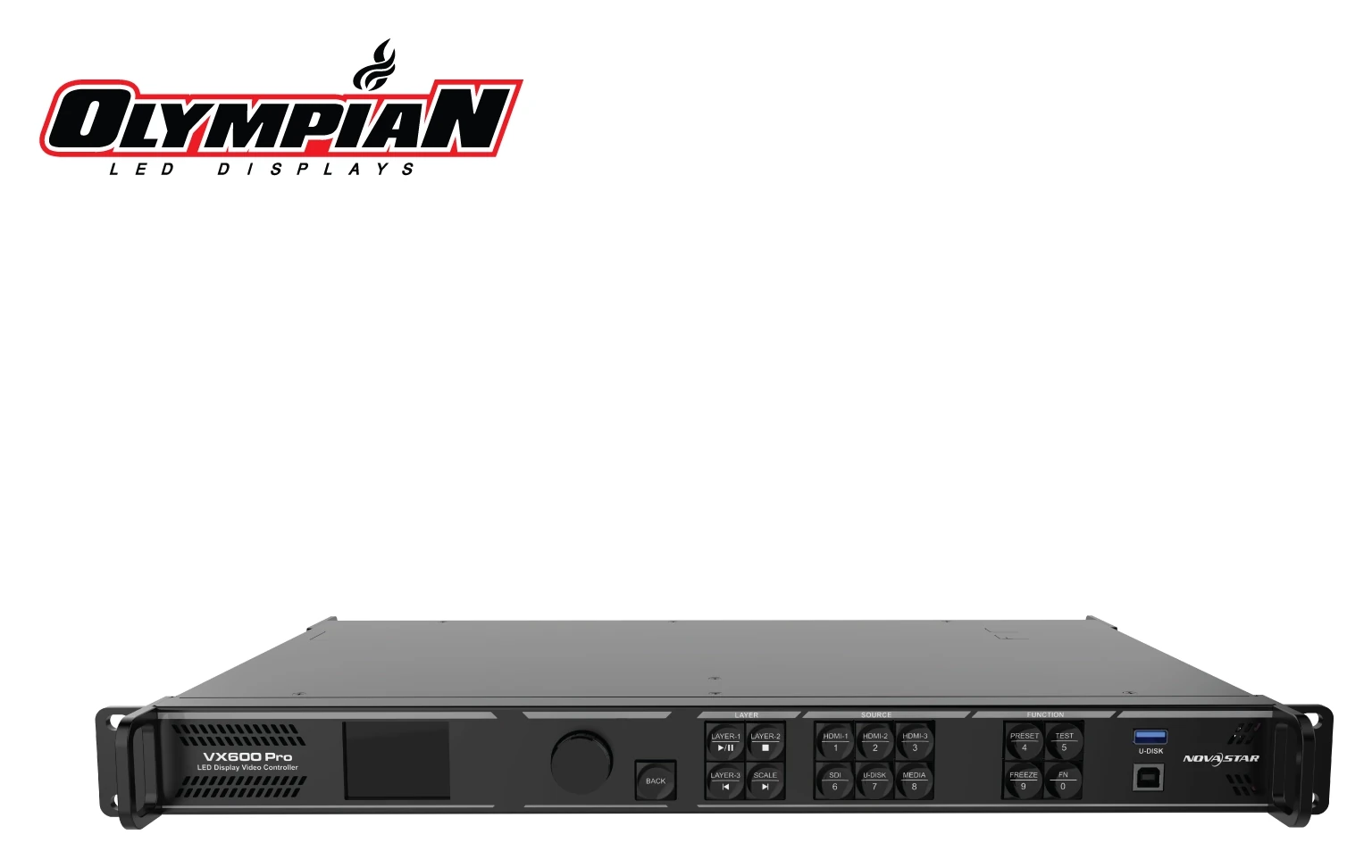

NovaStar VX600 Pro
The VX600 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 6 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 3.9 million pixels, the VX600 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site. The VX600 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency and pixel-level brightness and chroma calibration.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Key Highlights
Key Features
3D
Genlock
4K
10G Fiber
Light Sensor
Free Layout
Low Latency
Color Calibration
12-bit
Brightness and Chroma Calibration
Technical Specifications
Video Processing
| Layers | 6x 2K layers |
| Maximum Pixels | 3.9 million pixels |
| Maximum Width | 10240 pixels |
| Maximum Height | 8192 pixels |
| Max Input Resolution | 4K×2K@60HZ |

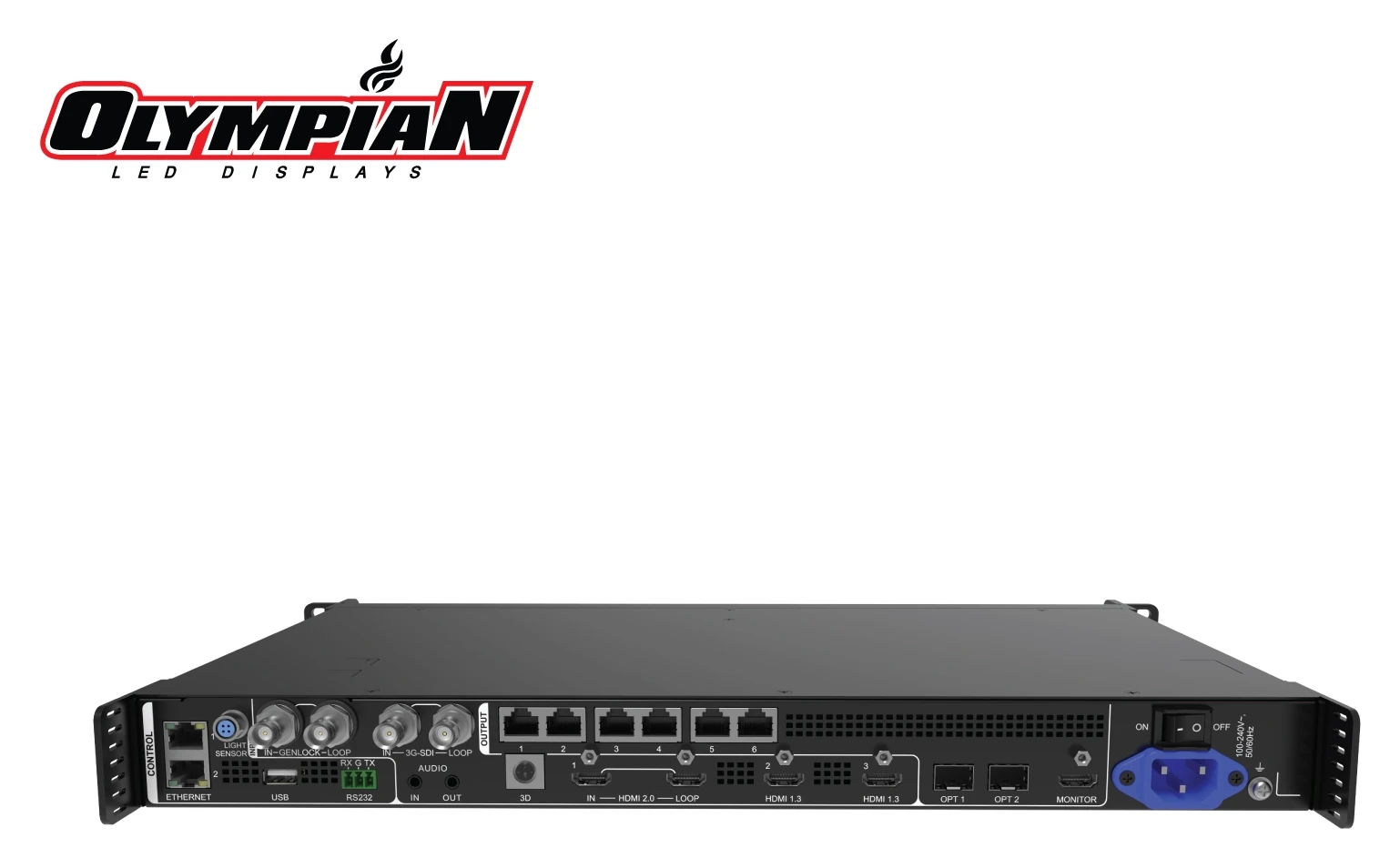

Input Connectors
| HDMI | 1x HDMI 2.0 (IN & LOOP), 2x HDMI 1.3 |
| FIBER | 1x 10G Fiber (OPT 1) |
| SDI | 1x 3G-SDI (IN & LOOP) |
| USB | 1x USB 3.0 (Play images or videos saved in a USB drive.) |
Input Resolution Capabilities
| HDMI 2.0 | |
| Standard | 4096×2160@60Hz |
| Max. width | 8192 (8192×1080@60Hz) |
| Max. height | 8188 (1080×8188@60Hz) |
| HDMI 1.3 | |
| Standard | 1920×1080@60Hz |
| Max. width | 2048 |
| Max. height | 2048 |
| SDI 3G-SDI | |
| Standard | 1920×1080@60Hz |
📊 HDMI 2.0 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| Ultra-Wide 4K×1K — 3840×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/85 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/100 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
📊 HDMI 1.3 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
📊 3G-SDI Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 1080p — 1920×1080 | ||||
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
Custom Resolution Calculator
Enter any resolution to calculate the maximum achievable frame rate for each input type. Bandwidth limits from NovaStar DCS (Device Configuration Schema).
Output & Connectivity
| Ethernet Output | 6x Gigabit Ethernet |
| Fiber Output | 2x Fiber |
| Monitoring | 1x HDMI 1.3 (monitoring) |
| Audio I/O | 3.5mm Audio Input/Output |
Physical Specifications
| Dimensions | 482.6 mm × 302.2 mm × 50.1 mm (19.0" × 11.9" × 2.0") |
| Net weight | 3.9 kg (8.6 lbs) |
| Packing box | 565 mm × 450 mm × 175 mm (22.2" × 17.7" × 6.9") |
| Total weight (packed with paper box) | 6.5 kg (14.3 lbs) |
| Flight case | 517mm × 471mm × 94mm (20.4" × 18.5" × 3.7") |
| Total weight (packed with flight case) | 9.2 kg (20.3 lbs) |
Features
Working Modes
| • Video Controller |
| • Fiber Converter |
| • ByPass Mode |
Software
| Firmware V1.3.1 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT, Unico, VICP |
Frequently Asked Questions
What size LED wall can the VX600 Pro drive?
The VX600 Pro can drive 3.9 million pixels with 6 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the VX600 Pro suitable for rental applications?
Absolutely. The VX600 Pro is designed for professional rental, staging, and touring applications where reliability is critical.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
