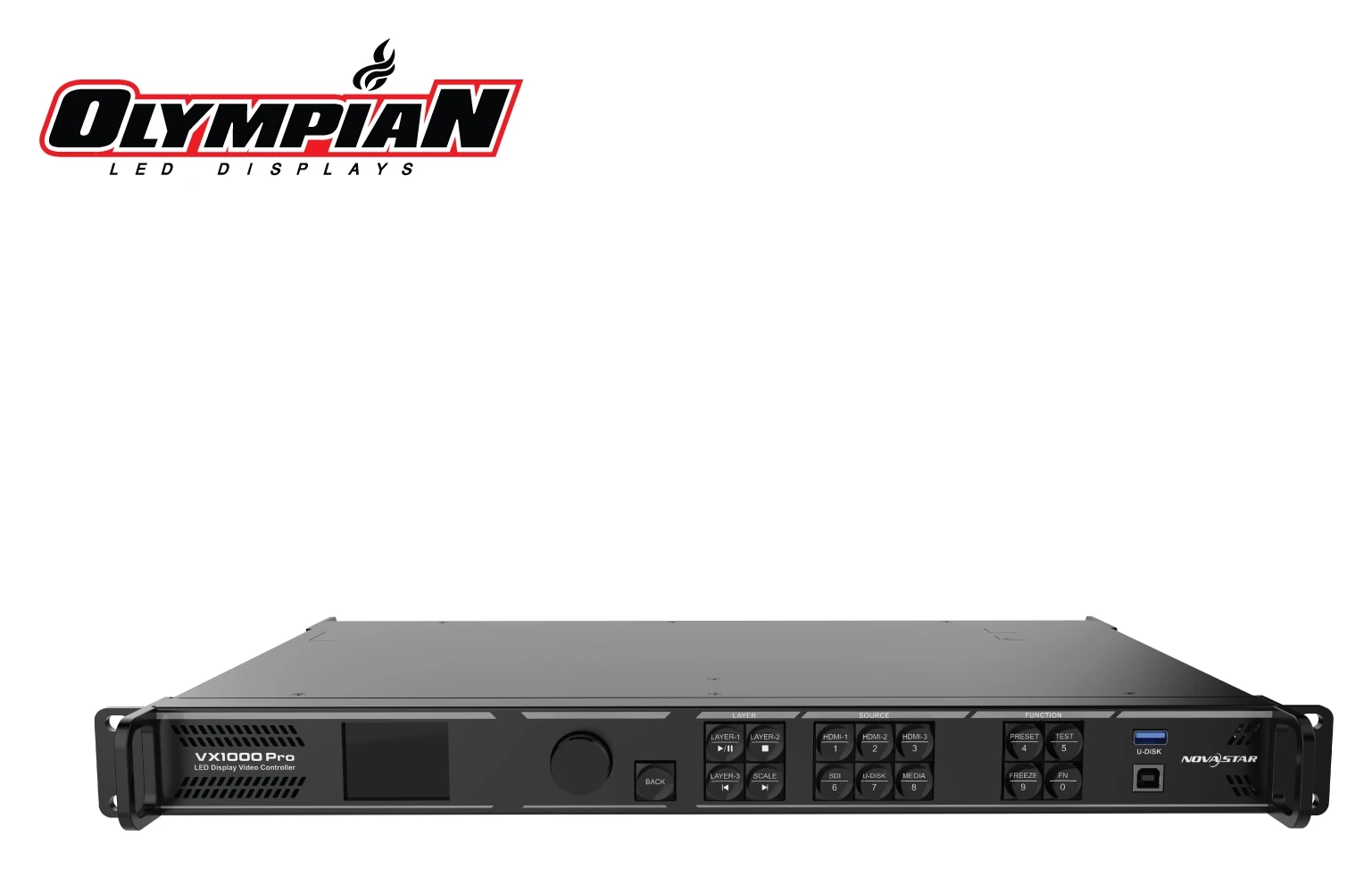

NovaStar VX1000 Pro
The VX1000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The VX1000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 10 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 6.5 million pixels, the VX1000 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site. The VX1000 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency and pixel-level brightness and chroma calibration.
Key Highlights
Key Features
Operating the VX1000 Pro
The VX1000 Pro is set up and run from NovaStar's Unico software, in the browser at the controller's own address - no dongle, no licence. These are its eight workspaces, with Unico's own icons.
Technical Specifications

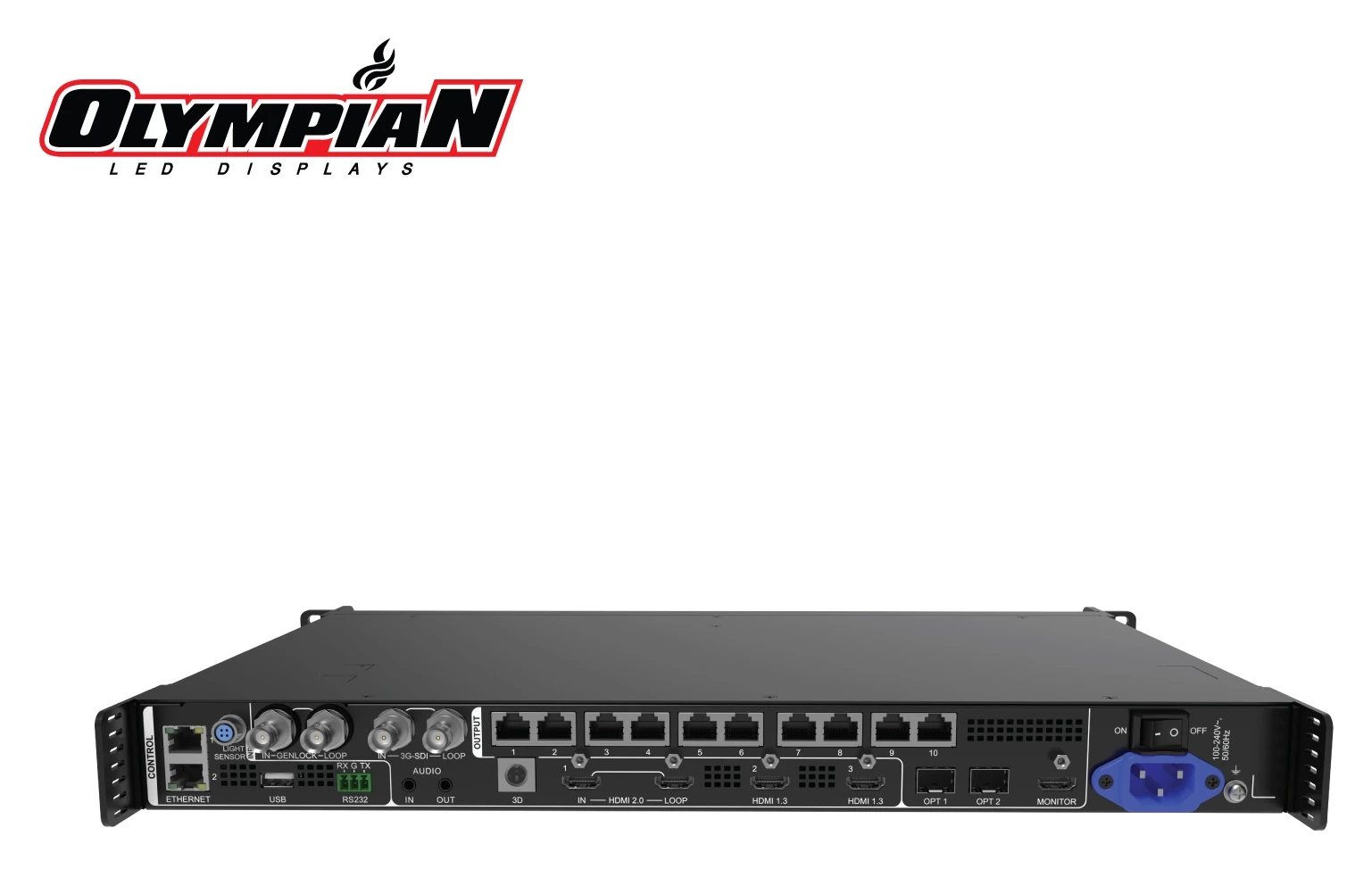

VX1000 Pro Rear Panel
Video Processing
| Layers | 6x 2K layers |
| Maximum Pixels | 6.5 million pixels |
| Maximum Width | 10240 pixels |
| Maximum Height | 8192 pixels |
| Max Input Resolution | 4K×2K@60HZ |
| Output frame rates | 23.98 / 24 / 25 / 29.97 / 30 / 47 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 85 / 95 / 100 / 119.88 / 120 / 144 / 240 Hz |
Input Connectors
| HDMI | 1x HDMI 2.0 (IN & LOOP), 2x HDMI 1.3 |
| FIBER | 1x 10G Fiber (OPT 1) |
| SDI | 1x 3G-SDI (IN & LOOP) |
| USB | 1x USB 3.0 (Play images or videos saved in a USB drive.) |
Input Resolution Capabilities
| HDMI 2.0 | |
| Standard | 4096×2160@60Hz |
| Max. width | 8192 (8192×1080@60Hz) |
| Max. height | 8188 (1080×8188@60Hz) |
| HDMI 1.3 | |
| Standard | 1920×1080@60Hz |
| Max. width | 2048 |
| Max. height | 2048 |
| SDI 3G-SDI | |
| Standard | 1920×1080@60Hz |
📊 HDMI 2.0 Resolution & Format Capabilities — 4096×2160, 3840×1080, 1920×1080, 1280×720
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| Ultra-Wide 4K×1K — 3840×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/85 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/100 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
| 720p — 1280×720 | ||||
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120/144/240 | |
📊 HDMI 1.3 Resolution & Format Capabilities — 1920×1080, 800×600
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| SVGA — 800×600 | ||||
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120/144/240 | |
📊 3G-SDI Resolution & Format Capabilities — 1920×1080
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 1080p — 1920×1080 | ||||
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
Custom Resolution Calculator
Enter any resolution to calculate the maximum achievable frame rate for each input type. Bandwidth limits from NovaStar DCS (Device Configuration Schema).
Output & Connectivity
| Ethernet Output | 10x Gigabit Ethernet |
| Fiber Output | 2x 10G optical (SFP cages) OPT 1 is self-adaptive - video input or output. OPT 2 does output copy, backup, or loop. Three combinations: input+output, input+loop, or output+copy/backup. Single-mode twin-core reaches 10 km, multi-mode 300 m. Optical modules are not fitted at the factory - order SFPs separately. |
| Monitoring | 1x HDMI 1.3 (monitoring) |
| Audio I/O | 3.5mm Audio Input/Output |
Control & Sync
| 2x ETHERNET | Control ports for device control and firmware upgrade over Unico. Per-port LEDs show link (top left) and traffic (top right). |
| USB | USB 2.0 control port - cascade up to 5 devices with the Ethernet port, update firmware from a USB drive, and import or export device logs and EDID files. Separate from the USB 3.0 media port on the input side. |
| RS232 | 3-pin phoenix connector (RX / TX / G) for third-party AV control systems. |
| GENLOCK IN-LOOP | External sync reference, bi-level and tri-level, 24-60 Hz. IN accepts the signal, LOOP passes it to the next device. Not fitted on the VX400 Pro. |
| LIGHT SENSOR | Ambient light sensor input for automatic screen brightness. |
| 3D | 3D emitter connector - pairs with compatible active glasses. Enabling 3D with a Side-by-Side or Top-and-Bottom source halves the device's output capacity. |
Physical Specifications
| Dimensions | 482.6 mm × 302.2 mm × 50.1 mm (19.0" × 11.9" × 2.0") |
| Net weight | 3.9 kg (8.6 lbs) |
| Packing box | 565 mm × 450 mm × 175 mm (22.2" × 17.7" × 6.9") |
| Total weight (packed with paper box) | 6.5 kg (14.3 lbs) |
| Flight case | 517mm × 471mm × 94mm (20.4" × 18.5" × 3.7") |
| Total weight (packed with flight case) | 9.2 kg (20.3 lbs) |
Power & Environment
| Power input | 100-240V~, 50/60 Hz, 2A-0.8A |
| Rated power consumption | 44 W |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Operating humidity | 5% to 85% RH, non-condensing |
| Storage temperature | -10°C to 60°C (14°F to 140°F) |
| Storage humidity | 5% to 95% RH, non-condensing |
| Noise level | 45 dB(A) typical at 25°C / 77°F |
| In the box | 1x Power cord, 1x Ethernet cable, 1x HDMI cable, 2x Silicone dustproof plugs, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval, 1x Safety Manual |
| Optional | Remote control (item code M07020005) |
Working Modes
| Mode | What it does | Latency |
|---|---|---|
| Video Controller | Full processing - layers, scaling, crop, colour management. The default, and what you buy the box for. | 1-2 frames low latency / 2-3 standard |
| Fiber Converter | Converts between optical and electrical with no processing - the box becomes a CVT-class converter. | 0 frames |
| ByPass | Sends the source straight to the cabinets with video processing switched off. Lowest possible delay for live camera-to-wall work. | 0 frames low latency / 1 standard |
| Genlock and low latency are not mutually exclusive in Video Controller mode, but cannot both be enabled in ByPass mode. | ||
Software
| Firmware V1.3.1 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT, Unico, VICP |
Frequently Asked Questions
What size LED wall can the VX1000 Pro drive?
The VX1000 Pro can drive 6.5 million pixels with 10 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the VX1000 Pro suitable for rental applications?
Absolutely. The VX1000 Pro is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the VX1000 Pro?
The VX1000 Pro is configured and controlled with NovaLCT, Unico, VICP, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
