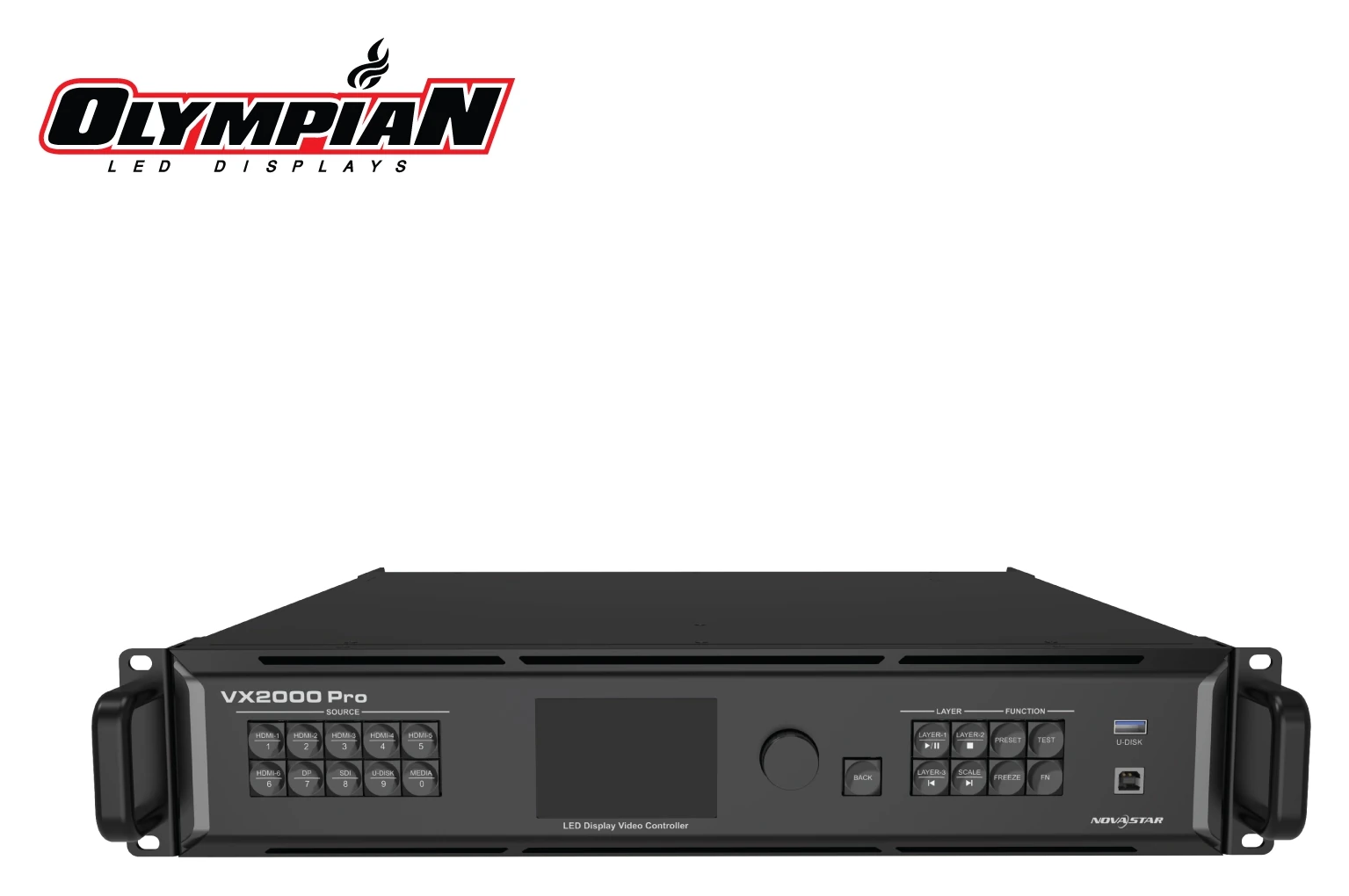

NovaStar VX2000 Pro All-in-One LED Display Controller
The VX2000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The NovaStar VX2000 Pro is an all-in-one LED display controller and video processor that combines processing and sending in a single 2U device. It drives the wall over 20 Gigabit Ethernet ports plus 4 OPT optical-fiber ports, loading up to 13 million pixels, and runs as a video controller, fiber converter, or bypass. On the input side it takes DP 1.2, 2x HDMI 2.0, 4x HDMI 1.3 and 12G-SDI up to 4K×2K@60Hz. It provides 12 × 2K×1K layer resources — create layers as 4K×2K, 4K×1K or 2K×1K — with output scaling, HDR10/HLG, 10/12-bit color, screen genlock, source hot-backup and 256 presets. Control via the front panel, NovaLCT, the Unico web page, or the VICP app — built for high-end rental, staging, broadcast and fixed installations.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Why the VX2000 Pro?
The VX2000 Pro folds a video processor and an LED sending system into one 1U box. Instead of a separate scaler/switcher feeding separate sending cards, it ingests your sources (DP, HDMI, 12G-SDI), composes layers from 12 × 2K×1K layer resources, and drives the wall directly over 20 Gigabit Ethernet ports plus 4 optical-fiber ports — up to 13 million pixels.
That all-in-one design is why it's a fixture on high-end rental, staging and broadcast jobs: fewer boxes to rack and sync, HDR10/HLG with 10/12-bit color, screen genlock and source hot-backup for reliability, and control from the front panel, NovaLCT, the Unico web UI, or the VICP app.
Key Highlights
Key Features
Operating the VX2000 Pro
The VX2000 Pro is set up and run from NovaStar's Unico software, in the browser at the controller's own address - no dongle, no licence. These are its eight workspaces, with Unico's own icons.
Technical Specifications

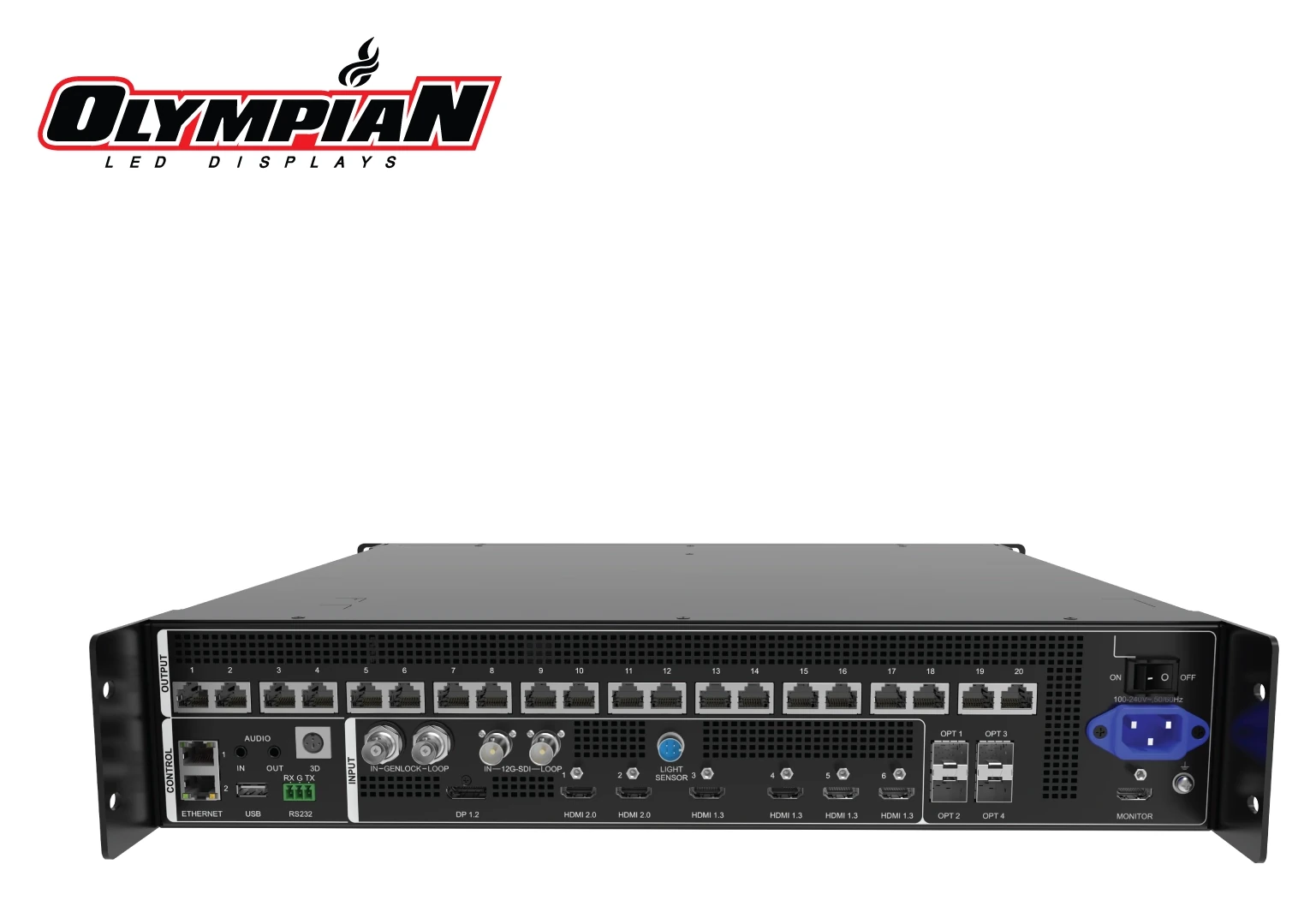

VX2000 Pro Rear Panel
Video Processing
| Layers | 12x 2K layers |
| Maximum Pixels | 13 million pixels |
| Maximum Width | 16384 pixels |
| Maximum Height | 8192 pixels |
| Max Input Resolution | 4K×2K@60HZ |
| Output frame rates | 23.98 / 24 / 25 / 29.97 / 30 / 47 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 85 / 95 / 100 / 119.88 / 120 / 144 / 240 Hz |
Input Connectors
| DISPLAYPORT | 1x DisplayPort 1.2 |
| HDMI | 2x HDMI 2.0, 4x HDMI 1.3 |
| FIBER | 2x 10G Fiber (OPT 1 & OPT 2) |
| SDI | 1x 12G-SDI (IN & LOOP) |
| USB | 1x USB 3.0 (Play images or videos saved in a USB drive.) |
Input Resolution Capabilities
| HDMI 2.0 | |
| Standard | 4096×2160@60Hz |
| Max. width | 8192 (8192×1080@60Hz) |
| Max. height | 8188 (1080×8188@60Hz) |
| HDMI 1.3 | |
| Standard | 1920×1080@60Hz |
| Max. width | 2048 |
| Max. height | 2048 |
| SDI 12G-SDI | |
| Standard | 4096×2160@60Hz |
📊 HDMI 2.0 Resolution & Format Capabilities — 4096×2160, 3840×1080, 1920×1080
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| Ultra-Wide 4K×1K — 3840×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/85 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/100 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
📊 DP 1.2 Resolution & Format Capabilities — 4096×2160, 3840×1080, 1920×1080
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| Ultra-Wide 4K×1K — 3840×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/85 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/100 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
📊 HDMI 1.3 Resolution & Format Capabilities — 1920×1080
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
📊 12G-SDI Resolution & Format Capabilities — 4096×2160, 3840×1080, 1920×1080
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 | ||||
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| Ultra-Wide 4K×1K — 3840×1080 | ||||
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| 1080p — 1920×1080 | ||||
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
Custom Resolution Calculator
Enter any resolution to calculate the maximum achievable frame rate for each input type. Bandwidth limits from NovaStar DCS (Device Configuration Schema).
Output & Connectivity
| Ethernet Output | 20x Gigabit Ethernet |
| Fiber Output | 4x 10G optical (SFP cages) OPT 1 and OPT 2 are self-adaptive - each is a video input or sends the output of Ethernet ports 1-10 and 11-20 respectively, and OPT 2 can loop the OPT 1 input onward. OPT 3 and OPT 4 are output-only - copy or backup of ports 1-10 and 11-20. Single-mode twin-core reaches 10 km, multi-mode 300 m. Optical modules are not fitted at the factory - order SFPs separately. |
| Monitoring | 1x HDMI 1.3 (monitoring) |
| Audio I/O | 3.5mm Audio Input/Output |
Control & Sync
| 2x ETHERNET | Control ports for device control and firmware upgrade over Unico. Per-port LEDs show link (green) and traffic (yellow). |
| USB | USB 2.0 - update firmware from a USB drive, and import or export device logs and EDID files. Device cascade (up to 5 units) and USB 3.0 media playback use the two front-panel ports on this model. |
| RS232 | 3-pin phoenix connector (RX / TX / G) for third-party AV control systems. |
| GENLOCK IN-LOOP | External sync reference, bi-level and tri-level, 24-60 Hz. IN accepts the signal, LOOP passes it to the next device. |
| LIGHT SENSOR | Ambient light sensor input for automatic screen brightness. |
Physical Specifications
| Dimensions | 482.6 mm × 493.0 mm × 94.6 mm (19.0" × 19.4" × 3.7") |
| Net weight | 7.4 kg (16.3 lbs) |
| Packing box | 645 mm × 580 mm × 215 mm (25.4" × 22.8" × 8.5") |
| Total weight (packed with paper box) | 11.2 kg (24.7 lbs) |
| Flight case | 722.4 mm × 547.8 mm × 165.8 mm (28.4" × 21.6" × 6.5") |
| Total weight (packed with flight case) | 19.9 kg (43.9 lbs) |
Power & Environment
| Power input | 100-240V~, 50/60 Hz, 2.5A-1.0A |
| Rated power consumption | 83 W |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Operating humidity | 5% to 85% RH, non-condensing |
| Storage temperature | -10°C to 60°C (14°F to 140°F) |
| Storage humidity | 5% to 95% RH, non-condensing |
| Noise level | 45 dB(A) typical at 25°C / 77°F |
| In the box | 1x Power cord, 1x Ethernet cable, 1x HDMI cable, 4x Silicone dustproof plugs, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval, 1x Safety Manual |
| Optional | Remote control (item code M07020005) |
Working Modes
| Mode | What it does | Latency |
|---|---|---|
| Video Controller | Full processing - layers, scaling, crop, colour management. The default, and what you buy the box for. | 1-2 frames low latency / 2-3 standard |
| Fiber Converter | Converts between optical and electrical with no processing - the box becomes a CVT-class converter. | 0 frames |
| ByPass | Sends the source straight to the cabinets with video processing switched off. Lowest possible delay for live camera-to-wall work. | 0 frames low latency / 1 standard |
| Genlock and low latency are not mutually exclusive in Video Controller mode, but cannot both be enabled in ByPass mode. | ||
Software
| Firmware V1.3.1 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT, Unico, VICP |
Frequently Asked Questions
How many outputs does the VX2000 Pro have?
20 Gigabit Ethernet ports plus 4 OPT optical-fiber ports, loading up to 13 million pixels.
How many layers does it support?
It provides 12 × 2K×1K layer resources. A layer can be 4K×2K (uses 4 resources), 4K×1K (2), or 2K×1K (1), so you can mix layer sizes up to the 12-resource budget.
What inputs does it accept?
DP 1.2, 2× HDMI 2.0, 4× HDMI 1.3 and 12G-SDI — up to 4K×2K@60Hz — plus USB media playback.
Does it support HDR?
Yes — HDR10 and HLG, with 10/12-bit color.
Does it support high refresh-rate input?
Yes — HDMI 2.0, DP 1.2 and HDMI 1.3 inputs support up to 240Hz, ideal for fast-motion live content and high-frame-rate cameras.
What working modes does it have?
Video controller, fiber converter, and bypass (zero-frame delay).
Does it have redundancy/backup?
Yes — source hot-backup for input redundancy on show-critical jobs.
How is it controlled?
Front-panel knob, NovaLCT, the Unico web page, and the VICP mobile app; central control via RS232/RS485.
What size LED wall can the VX2000 Pro drive?
The VX2000 Pro can drive 13 million pixels with 20 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the VX2000 Pro suitable for rental applications?
Absolutely. The VX2000 Pro is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the VX2000 Pro?
The VX2000 Pro is configured and controlled with NovaLCT, Unico, VICP, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
