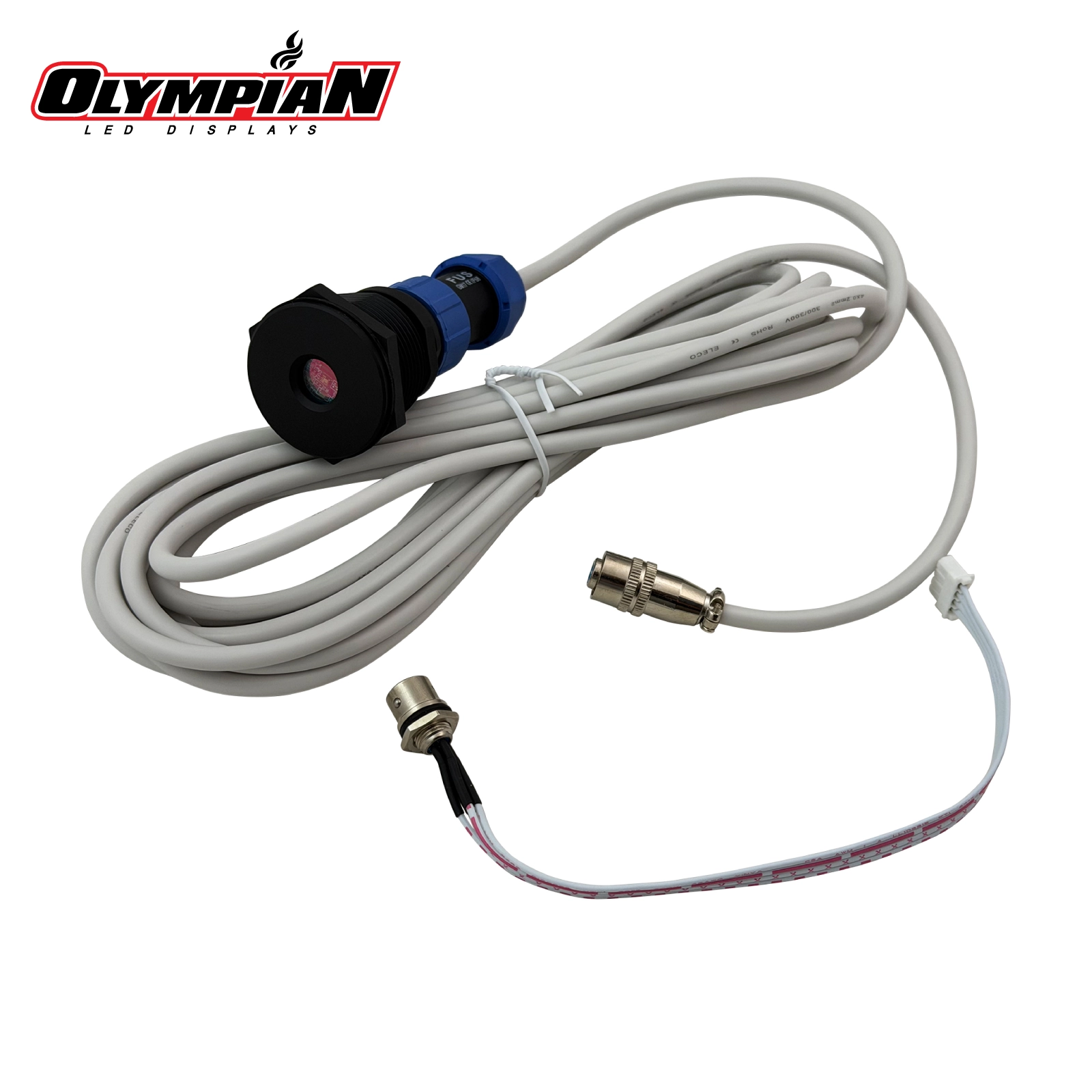

NovaStar NS060-5A Light Sensor
A light sensor designed and produced by NovaStar for ambient brightness monitoring, allowing for automatic brightness adjustment of LED displays. The sensor body is made of aluminum alloy with micro-arc oxidation process for UV resistance.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Technical Specifications
✨ Key Features
- Ambient brightness detection with 256 levels of auto brightness adjustment
- Compatible with sending cards (MSD300, MSD600, MCTRL300, etc.)
- Compatible with asynchronous cards and multifunction cards
- 5-meter cable length (NS060-5A model), 10-meter option available (NS060-10A)
- Mildew, moisture and salt-mist resistant design
- Ideal for outdoor applications
- IP65 waterproof rating
- Aluminum alloy body with micro-arc oxidation process
- Highly UV-resistant, will not discolor
- No external power supply required
- Rated Voltage: 5V DC
- Operating Temperature: –20°C to +70°C
- Operating Humidity: 0% RH to 99% RH, non-condensing
- Brightness Measurement Range: 0 lux to 65535 lux
🏅 Certifications
Frequently Asked Questions
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
