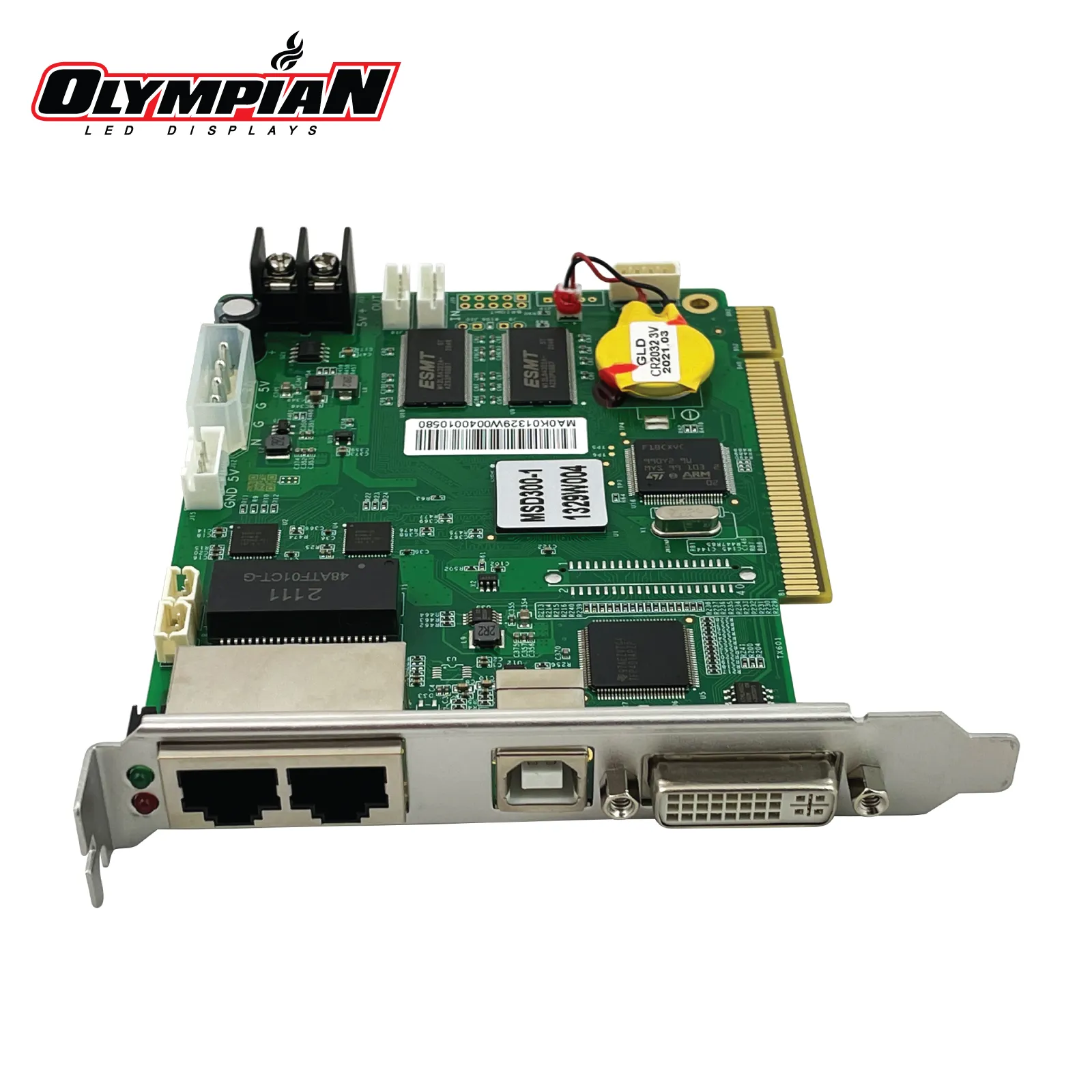

NovaStar MSD300
Compact sending card with 1.3 million pixel capacity - the affordable choice for smaller LED video walls and digital signage.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The MSD300 is NovaStar's entry-level sending card, delivering professional performance in a compact, cost-effective package. With 1.3 million pixel loading capacity and 2 Gigabit Ethernet outputs, it's perfectly sized for retail displays, conference rooms, and smaller video walls. The card supports single-link DVI input up to 1920×1200@60Hz and includes audio pass-through for multimedia applications. Features pixel-level brightness and chroma calibration for excellent image quality, plus light sensor support for automatic brightness adjustment. Multiple units can be cascaded for expansion, and the card is compatible with all NovaStar receiving cards. An ideal first sending card for integrators entering the LED display market.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Maximum Pixels | 1.3 million pixels |
Input Connectors
| DVI | 1x SL-DVI |
| AUDIO | 1x Audio |
Input Resolution Capabilities
| SL-DVI | |
| Standard | Single-link DVI 8bit RGB 4:4:4 1920×1200@60Hz |
| Max. width | 1920 |
| Max. height | 1200 |
Output & Connectivity
| Ethernet Output | 2x Gigabit Ethernet |
Physical Specifications
| Dimensions | 130.1 mm × 99.7 mm × 14.0 mm (5.1" × 3.9" × 0.6") |
| Net weight | 104.3 g |
| Packing box | 400 mm × 365 mm × 355 mm (15.7" × 14.4" × 14.0") |
Software
| Firmware V4.7.12.0 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
What size LED wall can the MSD300 drive?
The MSD300 can drive 1.3 million pixels with 2 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the MSD300 suitable for rental applications?
Absolutely. The MSD300 is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the MSD300?
The MSD300 is configured and controlled with NovaLCT, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
