NovaStar MSD600
The MSD600 is a sending card developed by NovaStar.
Our warehouse count is zero right now. Contact us for the next delivery date and recommended alternatives.
Check Lead Time & Pricing Call 321-747-3220

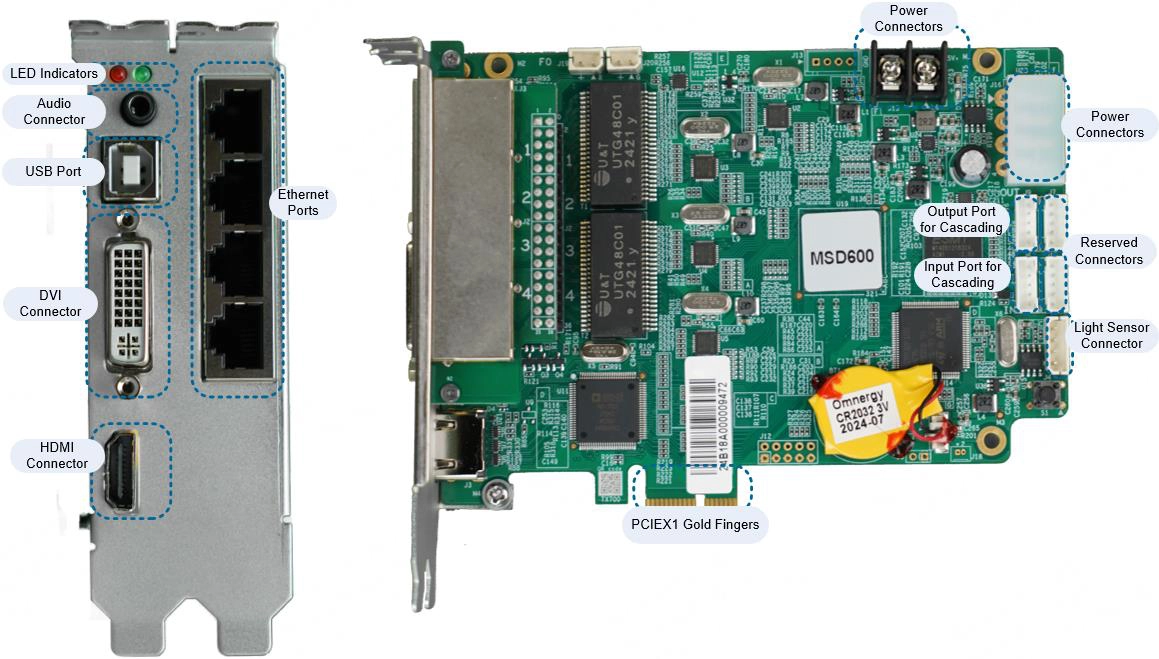

The MSD600 is a sending card developed by NovaStar. It supports 1x SL-DVI input, 1x HDMI 1.3 input, 1x audio input, and 4x Ethernet outputs. A single MSD600 supports input resolutions up to 1920×1200@60Hz and loads up to 2.6 million pixels. The MSD600 communicates with PC via type-B USB port. Multiple MSD600 units can be cascaded via UART port.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Maximum Pixels | 2.6 million pixels |
Input Connectors
| DVI | 1x SL-DVI |
| HDMI | 1x HDMI 1.3 |
| AUDIO | 1x Audio |
Input Resolution Capabilities
| SL-DVI | |
| Standard | Single-link DVI up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 3840 |
| Notes | Custom resolutions supported. Does NOT support interlaced signal input. |
| HDMI 1.3 | |
| Standard | HDMI 1.3 up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 3840 |
| Notes | HDCP 1.4 compliant. Custom resolutions supported. Does NOT support interlaced signal input. |
Output & Connectivity
| Ethernet Output | 4x Gigabit Ethernet |
Physical Specifications
| Dimensions | 137.9 mm × 99.7 mm × 39.0 mm (5.4" × 3.9" × 1.5") |
| Net weight | 125.3 g |
| Packing box | 400 mm × 365 mm × 355 mm (15.7" × 14.4" × 14.0") |
Software
| Firmware V4.9.3.0 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
What size LED wall can the MSD600 drive?
The MSD600 can drive 2.6 million pixels with 4 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the MSD600 suitable for rental applications?
Absolutely. The MSD600 is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the MSD600?
The MSD600 is configured and controlled with NovaLCT, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Frequently Purchased Together
Customers who bought this product also purchased:
CVT10-S
It offers conversion between optical signals and electrical signals for video sources to connect the...
MFN300-B
External multifunction box with expanded monitoring and sensor connectivity for NovaStar systems....
A10s Pro
For 8bit and 10bit video sources and PWM driver ICs, a single A10s Pro supports resolutions up to 51...
Ready to Get Started?
For pricing, availability, or technical questions about the MSD600, contact Olympian LED today.
