NovaStar MCTRL300
Entry-level LED display controller with 1.3 million pixel capacity and 2 Ethernet outputs - perfect for small to medium installations.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

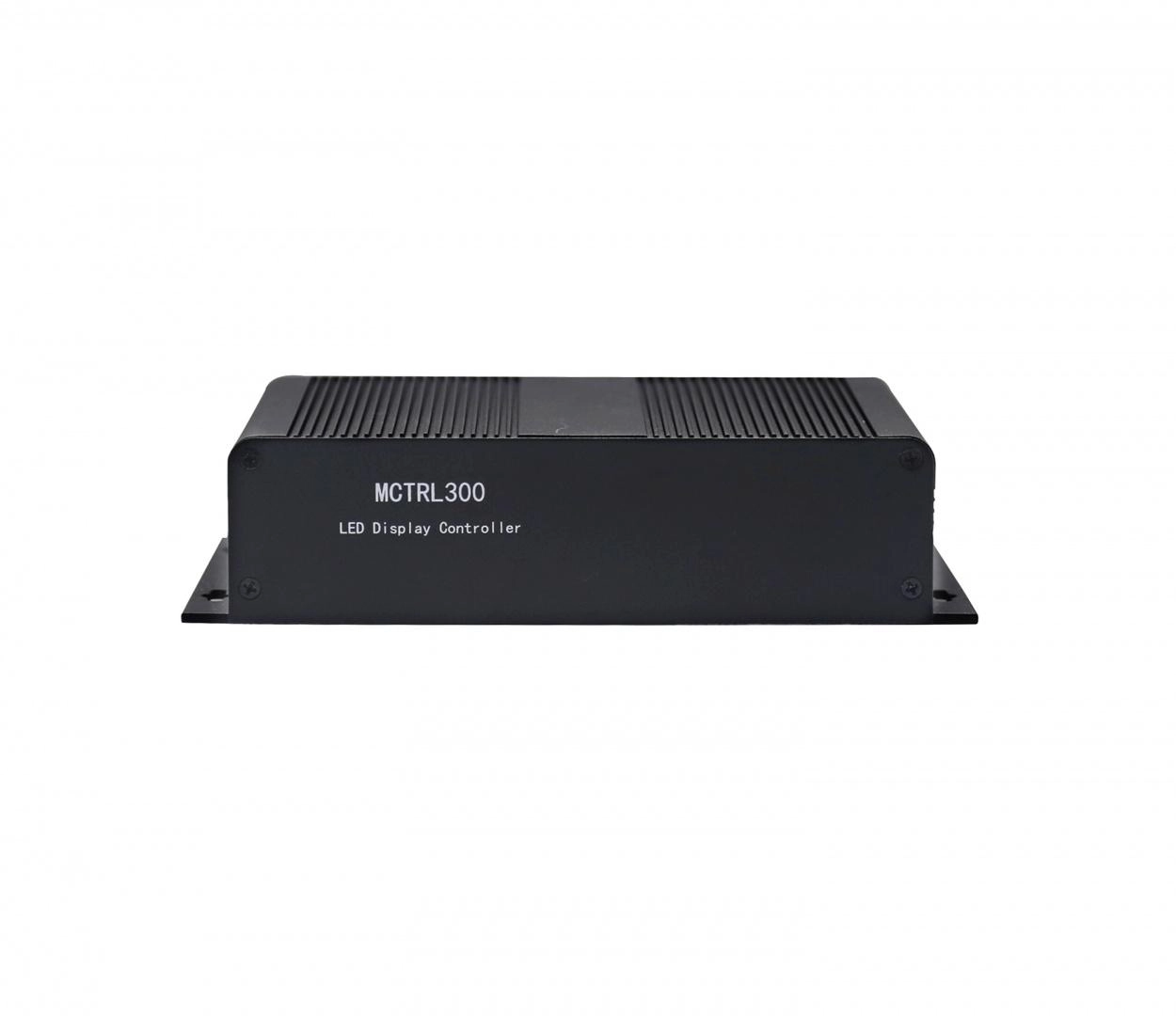

The MCTRL300 is NovaStar's entry-level LED display controller, offering professional features at an accessible price point. With a 1.3 million pixel capacity and 2 Gigabit Ethernet outputs, it's ideal for smaller installations, retail displays, corporate lobbies, and houses of worship. The controller supports single-link DVI input up to 1920×1200@60Hz and includes pixel-level brightness and chroma calibration for superior image quality. Multiple units can be cascaded via UART for larger projects, and the intuitive NovaLCT software makes setup simple. A cost-effective solution that doesn't compromise on professional features.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Maximum Pixels | 1.3 million pixels |
Input Connectors
| DVI | 1x SL-DVI |
| AUDIO | 1x Audio |
Input Resolution Capabilities
| SL-DVI | |
| Standard | Single-link DVI 8bit RGB 4:4:4 1920×1200@60Hz |
| Max. width | 1920 |
| Max. height | 1200 |
Output & Connectivity
| Ethernet Output | 2x Gigabit Ethernet |
Physical Specifications
| Dimensions | 204.0 mm × 160.0 mm × 48.0 mm (8.0" × 6.3" × 1.9") |
| Net weight | 1.0 kg (2.2 lbs) |
Software
| Firmware V4.7.12.0 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
What size LED wall can the MCTRL300 drive?
The MCTRL300 can drive 1.3 million pixels with 2 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the MCTRL300 suitable for rental applications?
Absolutely. The MCTRL300 is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the MCTRL300?
The MCTRL300 is configured and controlled with NovaLCT, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
