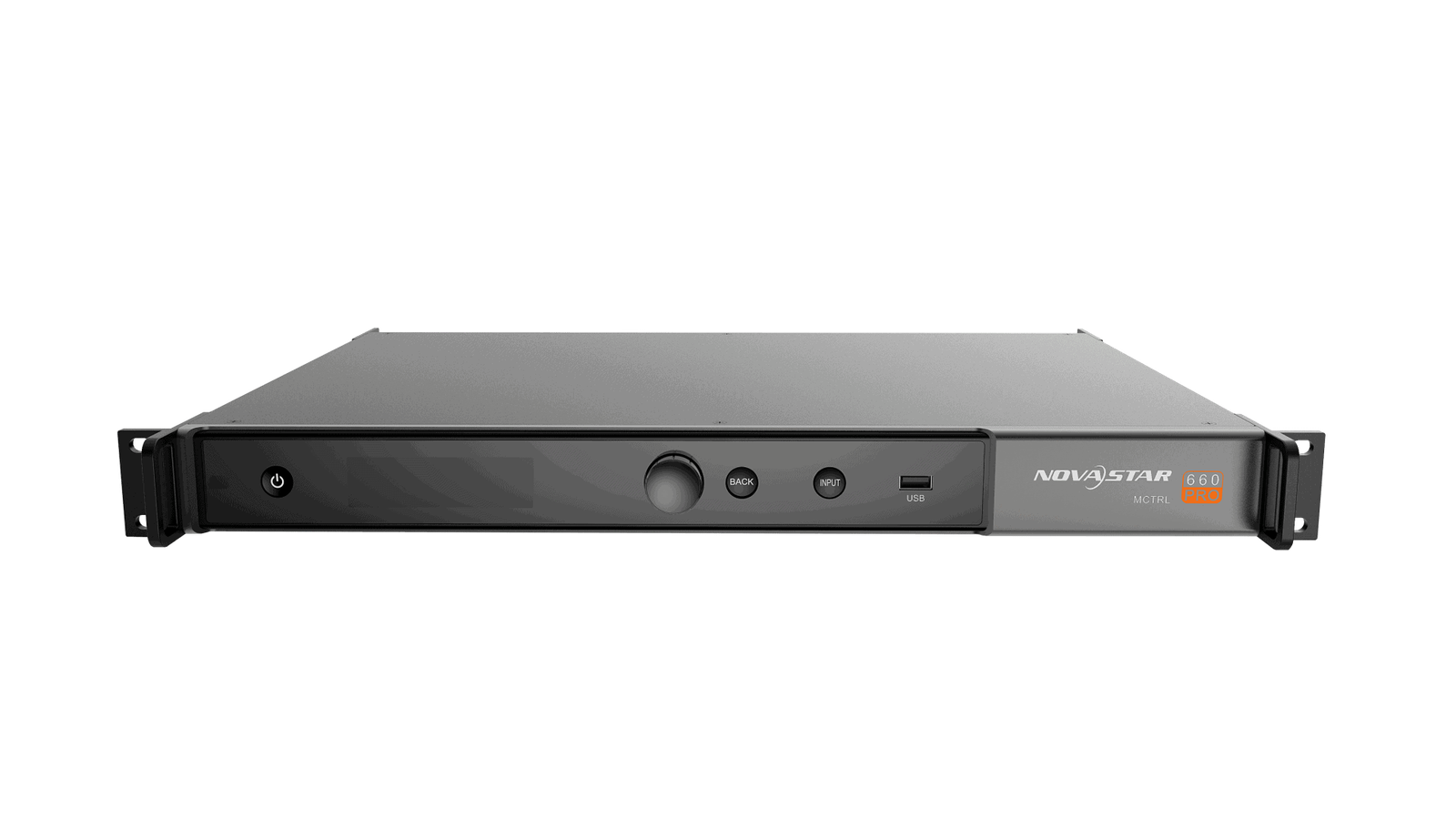

NovaStar MCTRL660 Pro LED Display Controller

Name: NovaStar MCTRL660 Pro
Brand: NovaStar
SKU: MCTRL660 Pro
Price: 1174 USD
Availability: InStock

A single controller supports resolutions up to 1920×1200@60Hz.

$1,174

✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time

Quantity:

📄 Specifications V1.4.1 📖 User Manual V1.4.1

🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

NovaStar MCTRL660 Pro LED Display Controller – Controllers

A single controller supports resolutions up to 1920×1200@60Hz. Supporting image mirroring, this controller can present a variety of images and bring an amazing visual experience to users. The MCTRL660 PRO can work as a sending card and a fiber converter, and supports switching between the two modes, meeting more diversified market demands. The MCTRL660 PRO is stable, reliable and powerful, dedicated to providing users with an ultimate visual experience. It can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring, Olympic Games, various sports centers, and much more.

Key Highlights

6x Gigabit Ethernet outputs — 659,722 px per port @ 60 Hzcapacity at other refresh rates →

Pixel-level brightness & chroma calibration

Key Features

Genlock

Locks output timing to an external sync reference (bi-level or tri-level) so the wall stays in step with cameras and other devices on the same clock.

10G Fiber

10G optical I/O - single-mode twin-core reaches 10 km, multi-mode 300 m. SFP modules are not fitted at the factory.

Low Latency

Shortens the processing pipeline for live camera-to-wall work. Mutually exclusive with some scaling and effect features.

Color Calibration

Per-pixel correction of the brightness and colour differences between modules and cabinets, so a wall built from mixed batches reads as one panel.

12-bit

12-bit per-channel processing - finer gradients and more detail in the low greys than 8-bit, which is where LED banding usually shows.

Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Video Processing

Maximum Pixels

2.3 million pixels

Input Connectors

HDMI	1x HDMI 1.4, 1x HDMI
DVI	1x DVI

Output & Connectivity

Ethernet Output	6x Gigabit Ethernet See per-port loading capacity
Fiber Output	2x Fiber

Refresh	8-bit / port	8-bit / all 6 ports	10/12-bit / port	10/12-bit / all 6 ports
60 Hz	659,722	2,300,000 †	329,861	1,979,166
120 Hz	329,861	1,979,166	164,930	989,580
240 Hz	164,930	989,580	82,465	494,790

Physical Specifications

Dimensions	482.6 mm × 356.0mm × 50.1mm (19.0" × 14.0" × 2.0")
Packing box	555 mm × 435 mm × 180 mm (21.9" × 17.1" × 7.1")

Working Modes

• Fiber Converter

Software

Firmware 1.0.6
NovaLCT 5.9.1
Compatible Software	NovaLCT, Web

MCTRL Series Comparison

Compare models in the MCTRL Series to find your perfect fit:

Model	Ports	Layers	Loading Capacity (60Hz)	Price	View
MCTRL300 Lower Tier	2x Ethernet	-	1.3 million pixels	$187	View
MCTRL600 Lower Tier	4x Ethernet	-	2.3 million pixels	$304	View
MCTRL660 Lower Tier	4x Ethernet	-	2.3 million pixels	$705	View
MCTRL660 Pro You're Here	6x Ethernet	-	2.3 million pixels	$1,174	View
MCTRL R5 Upgrade Option	8x Ethernet	-	4.1 million pixels	$2,703	View
MCTRL4K Upgrade Option	16x Neutrik Ethernet	-	8.9 million pixels	$5,288	View

Tip: Select products above to compare detailed specifications side-by-side

In-depth comparisons: MCTRL660 Pro vs MCTRL300 · MCTRL660 Pro vs MCTRL600 · MCTRL660 Pro vs MCTRL R5 · MCTRL660 Pro vs MCTRL4K

Frequently Asked Questions

What size LED wall can the MCTRL660 Pro drive?

The MCTRL660 Pro can drive 2.3 million pixels with 6 Ethernet outputs, suitable for medium to large-scale LED displays.

Is the MCTRL660 Pro suitable for rental applications?

Absolutely. The MCTRL660 Pro is designed for professional rental, staging, and touring applications where reliability is critical.

What software controls the MCTRL660 Pro?

The MCTRL660 Pro is configured and controlled with NovaLCT, Web, a free download from Olympian LED.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
