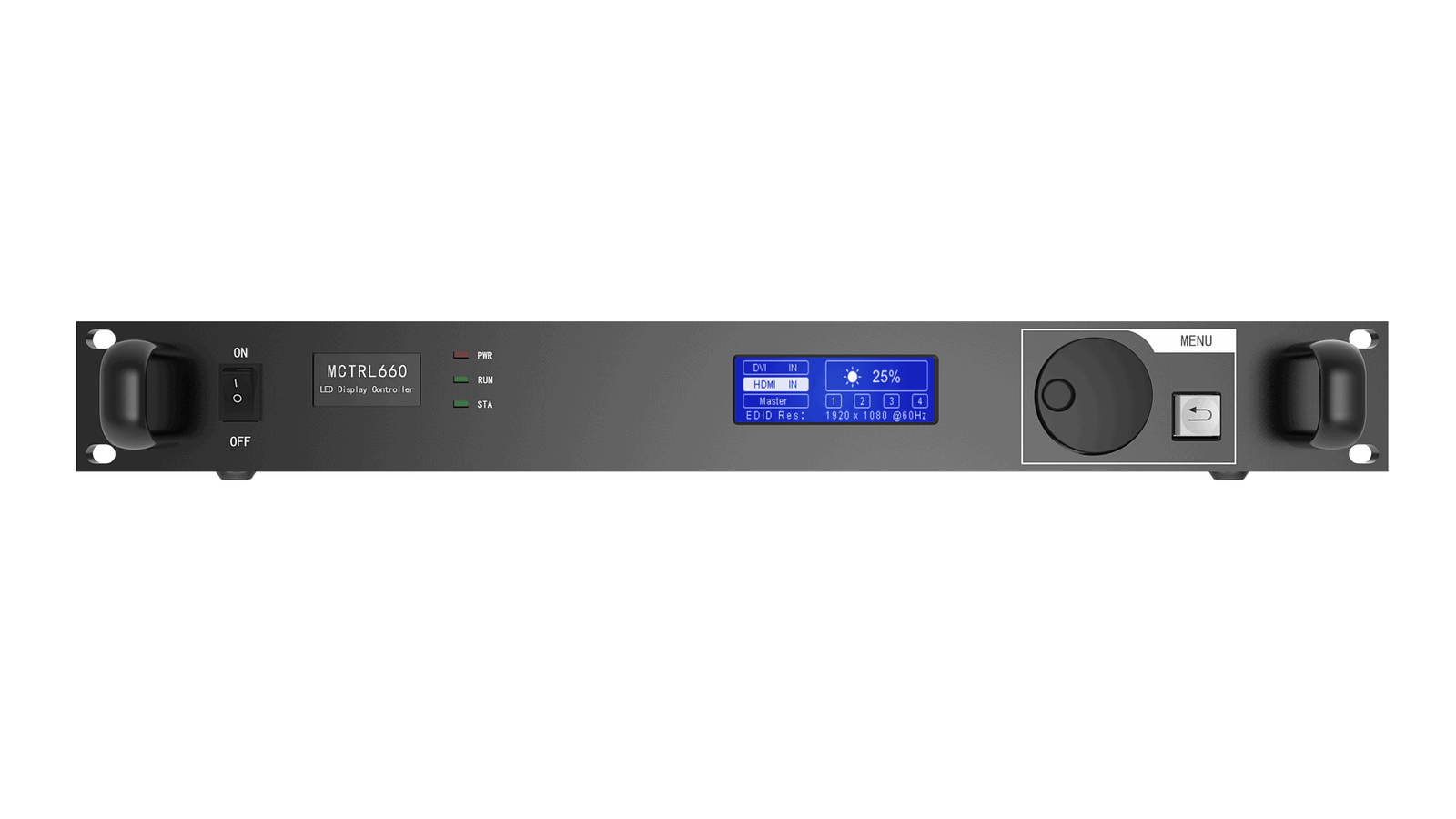

NovaStar MCTRL660
It supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MCTRL660 device supports input resolutions up to 1920×1200@60Hz. The MCTRL660 adopts an innovative architecture to implement smart screen configuration without using a computer, allowing a screen to be configured within 30 seconds. It also allows users to adjust screen brightness manually, which is faster and more convenient. The MCTRL660 can be mainly used in the rental and fixed applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Key Highlights
Key Features
Color Calibration
12-bit
Pixel-Level Brightness and Chroma Calibration
Technical Specifications
Video Processing
| Maximum Pixels | 2.3 million pixels |
Input Connectors
| DVI | 1x SL-DVI |
| HDMI | 1x HDMI 1.3 |
| AUDIO | 1x Audio |
Output & Connectivity
| Ethernet Output | 4x Gigabit Ethernet |
Physical Specifications
| Dimensions | 483.0 mm × 258.1 mm × 55.3 mm (19.0" × 10.2" × 2.2") |
| Net weight | 3.6 kg (7.9 lbs) |
| Packing box | 560 mm × 405 mm × 180 mm (22.0" × 15.9" × 7.1") |
Features
Software
| Firmware 4.7.7 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
What size LED wall can the MCTRL660 drive?
The MCTRL660 can drive 2.3 million pixels with 4 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the MCTRL660 suitable for rental applications?
Absolutely. The MCTRL660 is designed for professional rental, staging, and touring applications where reliability is critical.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
