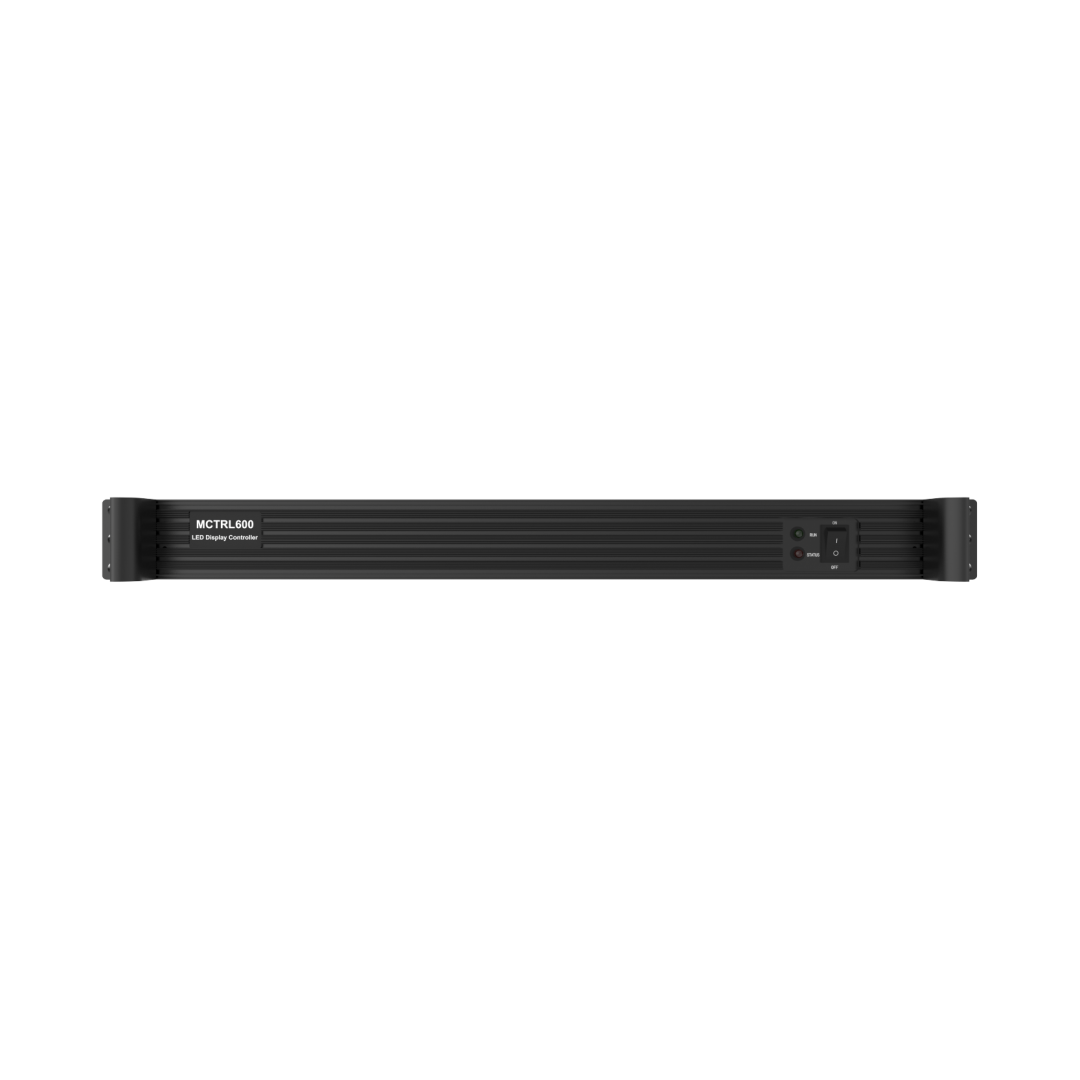

NovaStar MCTRL600

The MCTRL600 is a professional LED display controller that balances capacity, flexibility, and value. With 2.3 million pixel capacity and 4 Gigabit Ethernet outputs, it's well-suited for corporate video walls, houses of worship, live events, and rental applications. The dual input design (SL-DVI + HDMI 1.3) provides excellent source flexibility - connect computers via DVI or use HDMI for media players, cameras, and presentation systems. Both inputs support resolutions up to 1920×1200@60Hz, and the controller includes audio pass-through for multimedia content. Advanced features include pixel-level brightness and chroma calibration for superior image quality, plus light sensor support for automatic brightness adjustment. Multiple units can be cascaded via UART for larger installations. An excellent choice when you need professional features with dual-input flexibility at a competitive price point.

$304
✓ In Stock - Ships Same Day (if ordered before 3PM EST)
📄 Specifications V2.3.4
🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.
MCTRL600 – Controllers
Get 10% off your first online order

Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

Key Highlights

4x Gigabit Ethernet outputs
Pixel-level brightness & chroma calibration

Key Features

Light Sensor

Color Calibration

12-bit

Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Video Processing

Maximum Pixels2.3 million pixels

Input Connectors

DVI1x SL-DVI
HDMI1x HDMI 1.3

Input Resolution Capabilities

SL-DVI
StandardSingle-link DVI up to 1920×1200@60Hz
Max. width3840
Max. height3840
NotesCustom resolutions supported. Does NOT support interlaced signal input.
HDMI 1.3
StandardHDMI 1.3 up to 1920×1200@60Hz
Max. width3840
Max. height3840
NotesHDCP 1.4 compliant. Custom resolutions supported. Does NOT support interlaced signal input.

Output & Connectivity

Ethernet Output4x Gigabit Ethernet

Physical Specifications

Dimensions482.0 mm × 268.5 mm × 44.4 mm (19.0" × 10.6" × 1.7")
Net weight2.5 kg (5.5 lbs)
Packing box586 mm × 465 mm × 353 mm (23.1" × 18.3" × 13.9")

Features

Light SensorColor Calibration12-bitPixel-Level Brightness and Chroma Calibration

Software

Firmware V4.9.3.0
NovaLCT 5.9.1
Compatible SoftwareNovaLCT

Frequently Asked Questions

What size LED wall can the MCTRL600 drive?

The MCTRL600 can drive 2.3 million pixels with 4 Ethernet outputs, suitable for medium to large-scale LED displays.

Is the MCTRL600 suitable for rental applications?

Absolutely. The MCTRL600 is designed for professional rental, staging, and touring applications where reliability is critical.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.

Ready to Get Started?

For pricing, availability, or technical questions about the MCTRL600, contact Olympian LED today.
