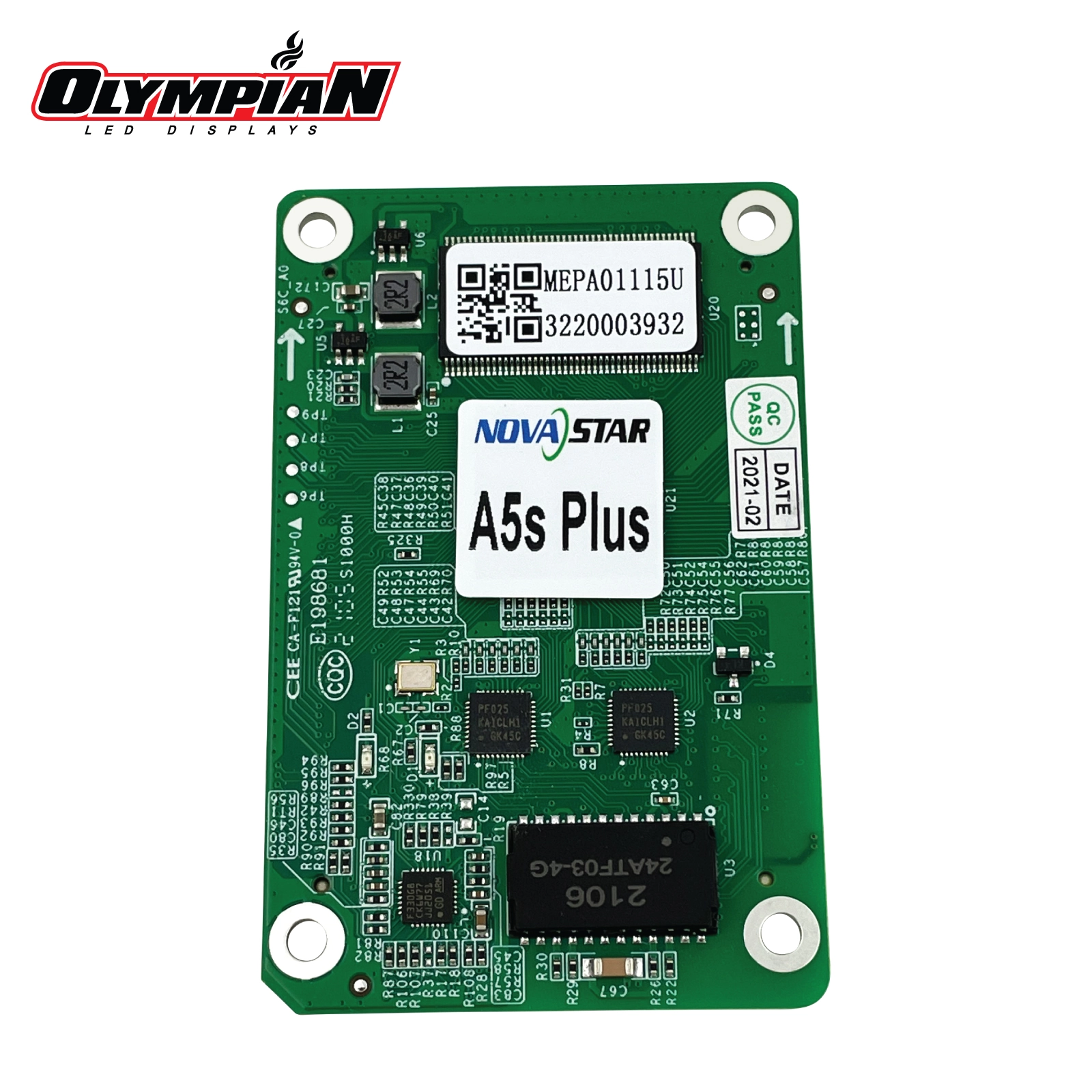

NovaStar A5s Plus
Supporting various functions such as Color Management, 18bit+, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the A5s Plus can significantly improve the display effect and user experience. The A5s Plus uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware design, the A5s Plus has improved electromagnetic compatibility and is suitable for various on-site setups.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Key Highlights
Key Features
3D
Low Latency
Backup
Color Calibration
18bit+
Mapping 1.1
Pixel-Level Brightness and Chroma Calibration
Technical Specifications
Physical Specifications
| Dimensions | 70.0 mm × 45.0 mm × 8.3 mm (2.8" × 1.8" × 0.3") |
| Net weight | 16.2 g |
| Packing box | 392.0 mm × 200.0 mm × 123.0 mm (15.4" × 7.9" × 4.8") |
Features
Load Capacity
| PWM Driver ICs | 512×384@60Hz (8-bit) |
| Common Driver ICs | 384×384@60Hz (8-bit) · 192×384@60Hz (10/12-bit) |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features — each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the A5s Plus, contact Olympian LED today.
