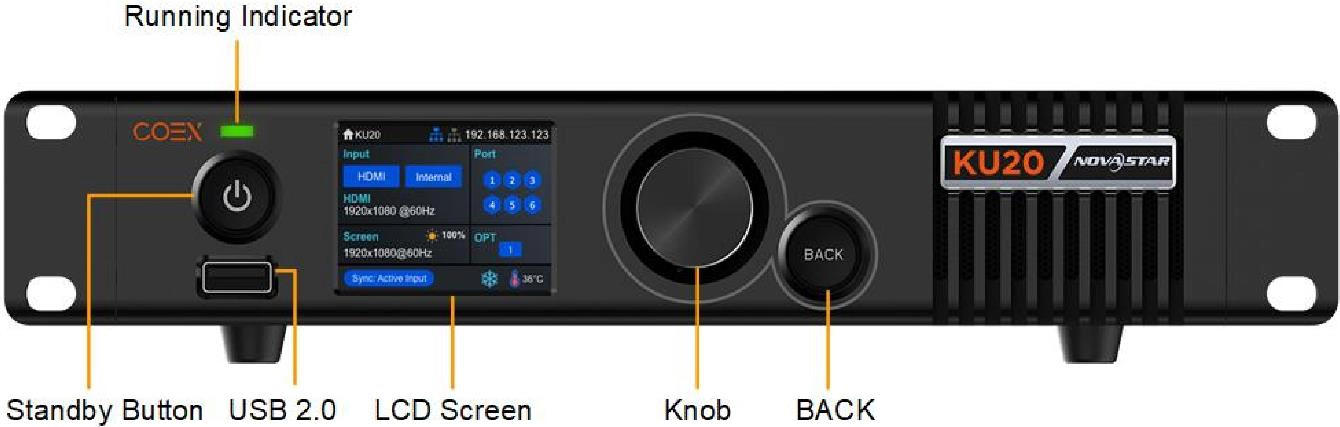

NovaStar KU20
Premium COEX Series controller for high-end display applications including virtual production, studios, broadcasting, and E-sports.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The KU20 is part of NovaStar's premium COEX Series (Creativity, Openness, Extensibility, Infinite possibilities), specifically designed for high-end display applications such as virtual production, studios, broadcasting, E-sports, and large-scale rental activities. This controller offers 1x HDMI 1.3 input, 6x Ethernet outputs and 1x 10G optical output. With a maximum loading capacity of 3.9 million pixels, the KU20 provides reliable performance for professional LED display applications. It features frame rate adaptive capabilities (23.98-480 Hz), pixel-level brightness and chroma calibration, full-grayscale calibration, and low latency operation. It supports two working modes (All-In-One Controller and Send-Only Controller) and works with VMP (Vision Management Platform) software to provide advanced operation and control experience.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Key Highlights
Key Features
Technical Specifications
Video Processing
| Maximum Pixels | 3.9 million pixels |
| Maximum Width | 4096 pixels |
| Maximum Height | 4096 pixels |
Input Connectors
| HDMI | 1x HDMI 1.3 (with loop through, HDCP 1.4, max 1920×1200@60Hz, 10-bit (customizable)) |
| AUDIO | 1x SPDIF (digital audio output) |
Input Resolution Capabilities
| HDMI 1.3 | |
| Standard | 2560×1440@60Hz |
| Max. width | 2560 |
| Max. height | 1440 |
📊 Supported Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 2K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30 | |
| YCbCr | 4:2:2 | 8/10bit | 24/25/30 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10bit | 24/25/30/48/50/60 | |
Custom Resolution Calculator
Enter any resolution to calculate the maximum achievable frame rate for each input type. Bandwidth limits from NovaStar DCS (Device Configuration Schema).

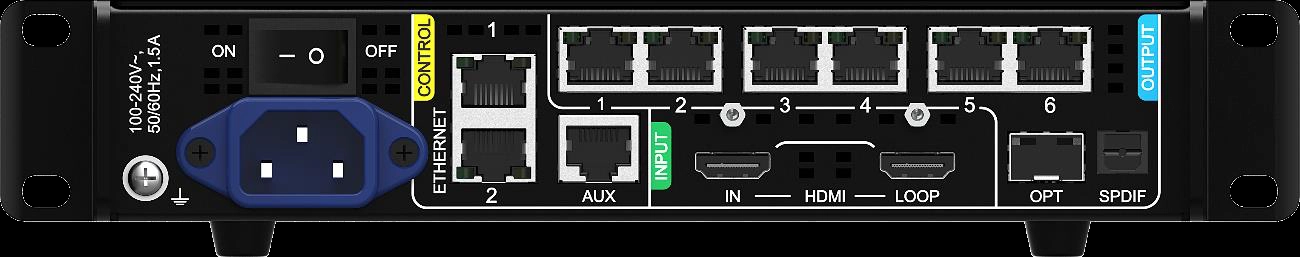

Output & Connectivity
| Ethernet Output | 6x Gigabit Ethernet |
| Fiber Output | 1x 10G Fiber |
Physical Specifications
| Dimensions | 254.3 mm × 50.6 mm × 290.0 mm (10.0" × 2.0" × 11.4") |
| Net weight | 2.1 kg (4.6 lbs) |
| IP Rating | IP20 |
| Packing box | 362.0 mm × 141.0 mm × 331.0 mm (14.3" × 5.6" × 13.0") |
Working Modes
| • All-In-One Controller |
| • Send-Only Controller |
Software
| Firmware V1.5.1 | |
| COEX VMP 1.5.1 | |
| Compatible Software | VMP |
Frequently Asked Questions
What size LED wall can the KU20 drive?
The KU20 can drive 3.9 million pixels with 6 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the KU20 suitable for rental applications?
Absolutely. The KU20 is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the KU20?
The KU20 is configured and controlled with VMP, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
