NovaStar MX30 COEX LED Display Controller

Name: NovaStar MX30
Brand: NovaStar
SKU: MX30
Price: 2584 USD
Availability: InStock

Advanced COEX Series video processor engineered for virtual production, xR/VP, broadcasting, and high-frame-rate applications. Features HDR10/HLG and 6.5MP capacity.

$2,584

✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time

Quantity:

📄 Specifications V1.5.1 📖 User Manual V1.5.1 📄 MX30 Pro Release Notes V1.5.1 📄 Central Control Protocol Instructions V1.5.0

🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

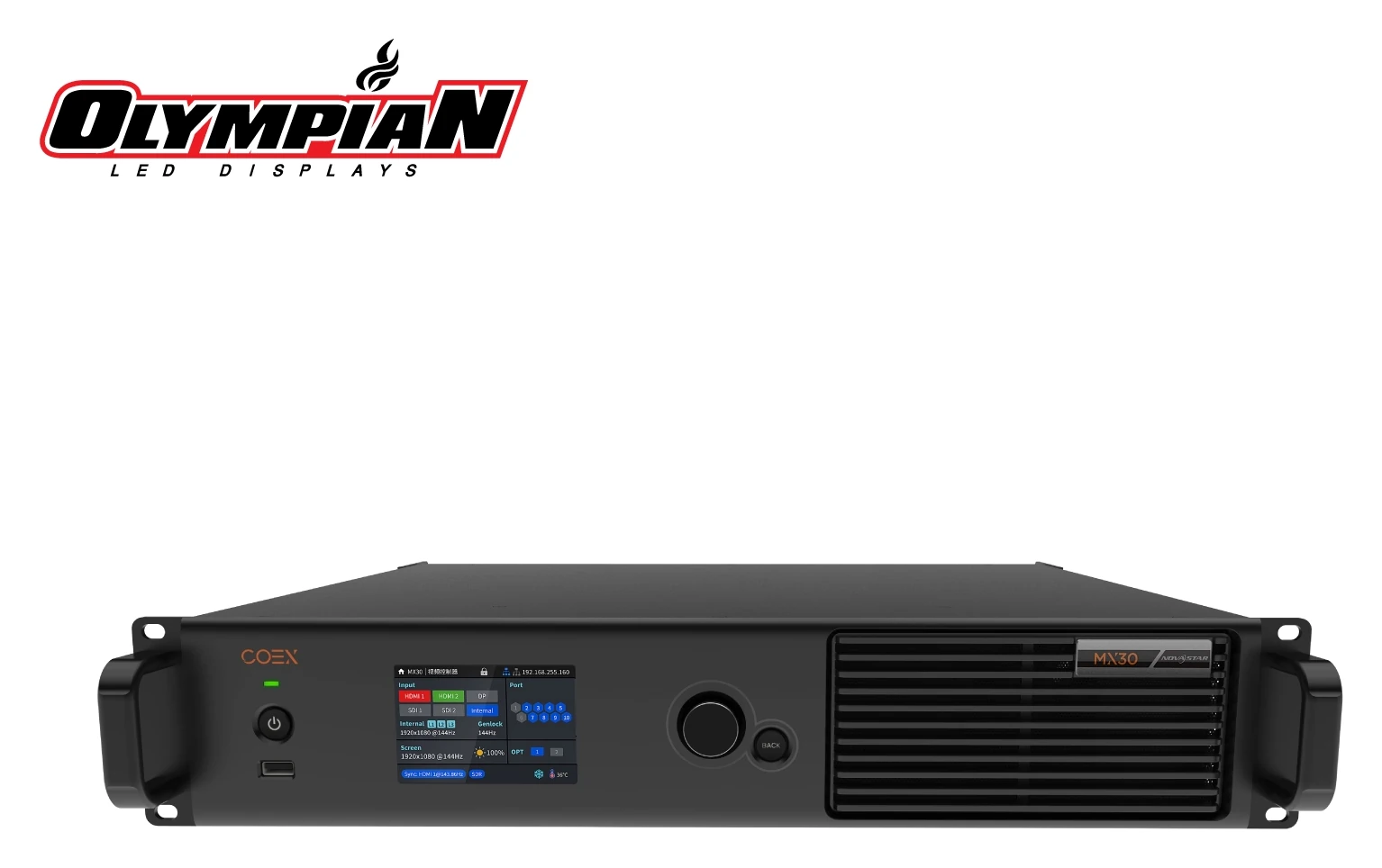

NovaStar MX30 COEX LED Display Controller – COEX Series

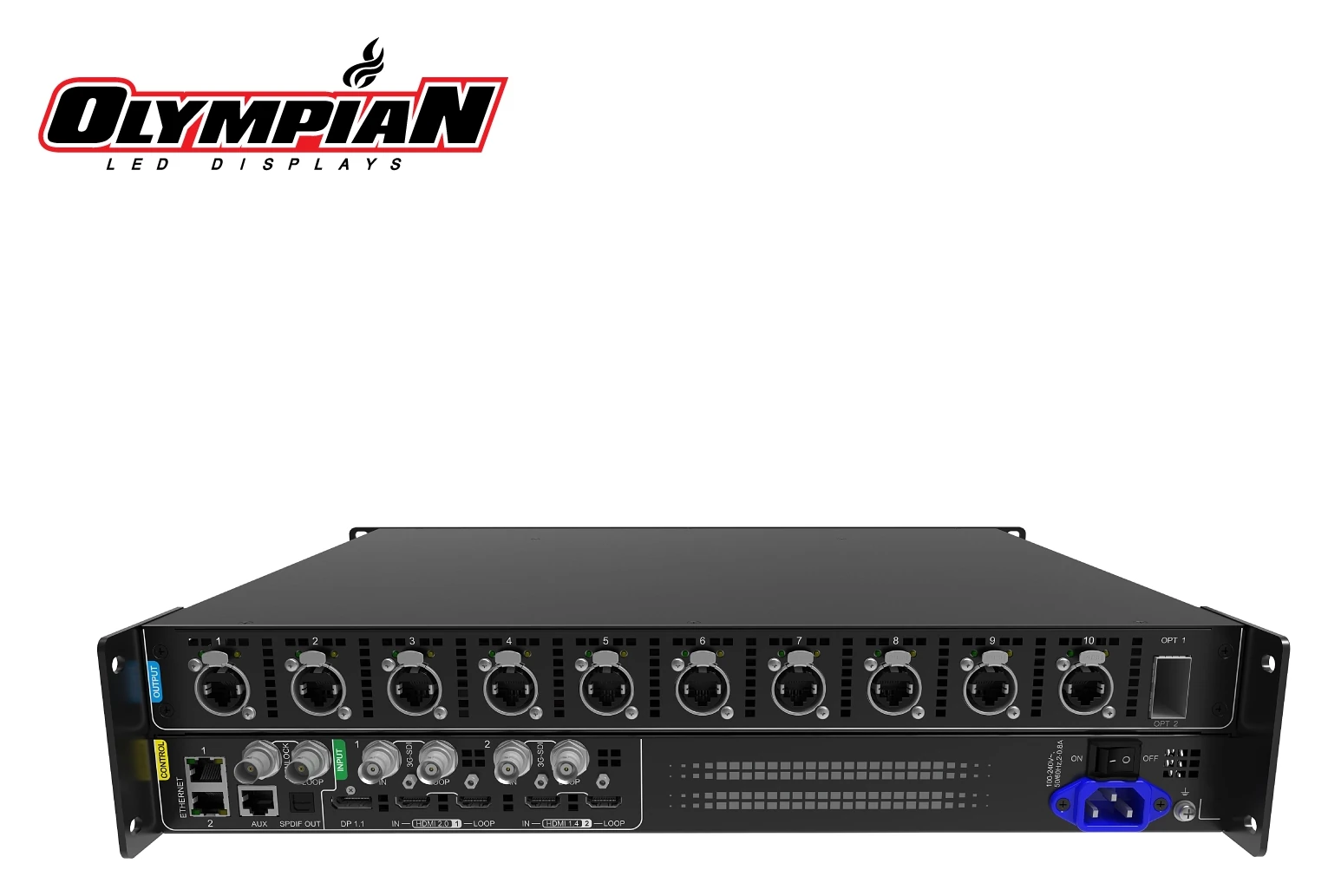

NovaStar MX30 COEX LED Display Controller – COEX Series (view 2)

The NovaStar MX30 is the mid-tier LED display controller in NovaStar's premium COEX Series (Creativity, Openness, Extensibility, Infinite possibilities), purpose-built for demanding professional applications including virtual production, xR/VP stages, broadcast studios, E-sports arenas, and large-scale rental operations. This sophisticated all-in-one controller unifies video processing and control while offering exceptional input flexibility: 1x HDMI 2.0 (supporting up to 4K@60Hz), 1x HDMI 1.4, 1x DisplayPort 1.1, and 2x 3G-SDI inputs with loop-through capability—making it ideal for multi-source production environments. With 10x Gigabit Ethernet outputs and 2x 10G fiber optical ports, the MX30 drives displays up to 6.5 million pixels (max 8192×7680) across 3 independent processing layers, providing the bandwidth needed for complex, high-resolution installations. The MX30 excels in HDR workflows with native HDR10 and HLG support, delivering stunning contrast and color accuracy for broadcast and cinematography applications. Its advanced feature set includes Genlock for frame-accurate synchronization, adaptive frame rates up to 240Hz for smooth motion in high-speed applications, 3D display support, 14-channel color correction, and full-grayscale calibration. Ultra-low latency operation ensures real-time responsiveness critical for virtual production and live events. Seamlessly integrated with NovaStar's VMP (Vision Management Platform) software, the MX30 delivers streamlined management and control, making it the go-to choice for professionals seeking a balance of performance, versatility, and value in mission-critical LED display applications.

Ideal Applications

Perfect for a wide range of professional LED display scenarios

Virtual Production

xR/VP

Studios

Broadcasting

E-sports

Large-Scale Rental

Key Highlights

10x Gigabit Ethernet outputs — 659,722 px per port @ 60 Hzcapacity at other refresh rates →

6.5 million pixel capacity

3 layers with output scaling

Frame rate adaptive 23.98-480 Hz

128 customizable presets

HDCP 2.2 compliant

No rectangle restriction for irregular screens

SPDIF digital audio output

Built-in cascading control

3.5-inch TFT touchscreen

Key Features

HDR

Tone-maps HDR sources onto the wall's own brightness range instead of clipping the highlights.

HDR10

Accepts HDR10 sources and maps their peak brightness onto what the wall can actually produce.

HLG

Accepts Hybrid Log-Gamma sources, the HDR format broadcast chains use.

Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.

Genlock

Locks output timing to an external sync reference (bi-level or tri-level) so the wall stays in step with cameras and other devices on the same clock.

10G Fiber

10G optical I/O - single-mode twin-core reaches 10 km, multi-mode 300 m. SFP modules are not fitted at the factory.

Low Latency

Shortens the processing pipeline for live camera-to-wall work. Mutually exclusive with some scaling and effect features.

Frame Rate Adaptive

Color Replacement

14Ch Color Correction

Preset

Saved scene setups - layout, sources and sizing - recalled in one action instead of being rebuilt live.

Full-Grayscale Calibration

Grayscale Calibration

HDCP

Passes HDCP-protected sources, so consumer players and laptops display instead of showing a black or "protected content" frame.

SNMP Protocol

Art-Net Protocol

Central Control Protocol

Cascading

Technical Specifications

Video Processing

Layers	3 layers
Maximum Pixels	6.5 million pixels
Maximum Width	8192 pixels
Maximum Height	7680 pixels

Input Connectors

HDMI	1x HDMI 2.0 (with loop through, supports HDR10 and HLG, HDCP 2.2, max 8192×1080@60Hz), 1x HDMI 1.4 (with loop through, max 4096×1080@60Hz)
DISPLAYPORT	1x DP 1.1
SDI	2x 3G-SDI (with loop through)
GENLOCK	1x Genlock (with loop through)
AUDIO	1x SPDIF (digital audio output)

Input Resolution Capabilities

HDMI 2.0
Standard	4096×2160@60Hz
Max. width	4096
Max. height	2160
HDMI 1.4
Standard	4096×2160@30Hz
Max. width	4096
Max. height	2160
DP 1.1
Standard	4096×2160@30Hz
Max. width	4096
Max. height	2160
3G-SDI
Standard	2048×1080@60Hz
Max. width	2048
Max. height	1080

📊 HDMI 2.0 Resolution & Format Capabilities — 4096×2160, 3840×2160, 2560×1440, 1920×1080

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
4K — 4096×2160
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60
	YCbCr	4:2:0	8/10bit	30/48/50/60
4K — 3840×2160
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60
	YCbCr	4:2:0	8/10bit	48/50/60
2K — 2560×1440
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60/75/100
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/75/100/120
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/75/100/120
	YCbCr	4:2:0	8/10bit	75/100/120
1K — 1920×1080
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60/72/75/100/120/144
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/72/75/100/120/144/240
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/72/75/100/120/144/240
	YCbCr	4:2:0	8/10bit	120/144/240

📊 HDMI 1.4 Resolution & Format Capabilities — 4096×2160, 3840×2160, 2560×1440, 1920×1080

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
4K — 4096×2160
	RGB / YCbCr	4:4:4	10bit	24/25
	RGB / YCbCr	4:4:4	8bit	24/25/30
	YCbCr	4:2:2	8/10bit	24/25/30
4K — 3840×2160
	RGB / YCbCr	4:4:4	10bit	24/25/30
	RGB / YCbCr	4:4:4	8bit	24/25/30
	YCbCr	4:2:2	8/10bit	24/25/30
2K — 2560×1440
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/75
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/75
1K — 1920×1080
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60/72/75/100
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/72/75/100/120
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/72/75/100/120

📊 DP 1.1 Resolution & Format Capabilities — 4096×2160, 3840×2160, 2560×1440, 1920×1080

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
4K — 4096×2160
	RGB / YCbCr	4:4:4	10bit	24/25/30
	RGB / YCbCr	4:4:4	8bit	24/25/30
	YCbCr	4:2:2	8/10bit	24/25/30
4K — 3840×2160
	RGB / YCbCr	4:4:4	10bit	24/25/30
	RGB / YCbCr	4:4:4	8bit	24/25/30
	YCbCr	4:2:2	8/10bit	24/25/30
2K — 2560×1440
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/75
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/75
1K — 1920×1080
	RGB / YCbCr	4:4:4	10bit	24/25/30/48/50/60/72/75/100/120
	RGB / YCbCr	4:4:4	8bit	24/25/30/48/50/60/72/75/100/120/144
	YCbCr	4:2:2	8/10bit	24/25/30/48/50/60/72/75/100/120/144

📊 3G-SDI Resolution & Format Capabilities — 2048×1080, 1920×1080

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
2K — 2048×1080
	YCbCr	4:2:2	10bit	24/25/30/48/50/60
1K — 1920×1080
	YCbCr	4:2:2	10bit	24/25/30/48/50/60

Custom Resolution Calculator

Enter any resolution to calculate the maximum achievable frame rate for each input type. Bandwidth limits from NovaStar DCS (Device Configuration Schema).

Input Port

Width

Height

Color Format

Bit Depth

Presets:

Output & Connectivity

Ethernet Output	10x Gigabit Ethernet See per-port loading capacity
Fiber Output	2x 10G Fiber

Refresh	8-bit / port	8-bit / all 10 ports	10/12-bit / port	10/12-bit / all 10 ports
60 Hz	659,722	6,500,000 †	329,861	3,298,610
120 Hz	329,861	3,298,610	164,930	1,649,300
240 Hz	164,930	1,649,300	82,465	824,650

Physical Specifications

Dimensions	482.6 mm × 94.2 mm × 466.7 mm (19.0" × 3.7" × 18.4")
Net weight	7.2 kg (15.9 lbs)
IP Rating	IP20
Packing box	595.0 mm × 575.0 mm × 215.0 mm (23.4" × 22.6" × 8.5")

Working Modes

• All-In-One Controller

• Send-Only Controller

Software

Firmware V1.5.1
COEX VMP 1.5.1
Compatible Software	VMP

COEX Series Comparison

Compare models in the COEX Series to find your perfect fit:

Model	Ports	Layers	Loading Capacity (60Hz)	Price	View
KU20 Lower Tier	6x Ethernet	-	3.9 million pixels	$927	View
MX20 Lower Tier	6x Ethernet	3 layers	3.9 million pixels	$1,667	View
MX30 You're Here	10x Ethernet	3 layers	6.5 million pixels	$2,584	View
CX40 Pro ⚡ 5G	6x 5G Ethernet	3 layers	9 million pixels	$8,048	View
MX40 Pro Upgrade Option	20x Ethernet	4 layers	9 million pixels	$8,868	View
SP60 Pro Upgrade Option	20x Ethernet	2 layers	17.69 million sub-pixels	Contact for Pricing	View
MX2000 Pro Upgrade Option	-	4 layers	Up to 35.38 million pixels	$4,417	View
MX6000 Pro Upgrade Option	-	4 layers	Up to 141 million pixels	$8,600	View

Tip: Select products above to compare detailed specifications side-by-side

In-depth comparisons: MX30 vs KU20 · MX30 vs MX20 · MX30 vs CX40 Pro · MX30 vs MX40 Pro · MX30 vs SP60 Pro · MX30 vs MX2000 Pro · MX30 vs MX6000 Pro

Frequently Asked Questions

How big an LED wall can the MX30 drive?

Up to 6.5 million pixels (max 8192×7680) over 10 Gigabit Ethernet outputs, with 2× 10G fiber optical ports for long runs. That covers most rental walls and mid-size fixed installations — with no rectangle restriction, so irregular shapes use the full pixel budget.

What's the difference between the MX30, MX20, and MX40 Pro?

All three are COEX Series LED display controllers running VMP software. The MX20 (6× Ethernet, 3.9M pixels) is the entry point, the MX30 (10× Ethernet, 6.5M pixels, more inputs including 2× 3G-SDI) is the mid-tier, and the MX40 Pro (20× Ethernet, 9M pixels, 12G-SDI, Image Booster 2.0) is the flagship. See the in-depth comparison links on this page.

What software configures the MX30?

NovaStar VMP (Vision Management Platform) — not NovaLCT. VMP handles screen configuration, color management, presets, and firmware updates for the whole COEX family.

Is the MX30 suitable for xR and virtual production?

Yes — Genlock synchronization, adaptive frame rates, HDR10/HLG, and low-latency processing make it a popular mid-budget choice for xR stages and broadcast studios. If you need 12G-SDI input or more than 6.5M pixels, step up to the MX40 Pro.

Which receiving cards work with the MX30?

Current NovaStar receiving cards — most commonly the A10s Pro or A8s Pro for full COEX feature support including full-grayscale calibration. We stock both.

What is the MX30 price in the USA?

The live US price and stock status are shown at the top of this page. Olympian LED is an authorized NovaStar distributor — orders ship free from our Florida warehouse, and dealer/volume pricing is available.

What size LED wall can the MX30 drive?

The MX30 can drive 6.5 million pixels with 10 Ethernet outputs, suitable for medium to large-scale LED displays.

Is the MX30 suitable for rental applications?

Absolutely. The MX30 is designed for professional rental, staging, and touring applications where reliability is critical.

What software controls the MX30?

The MX30 is configured and controlled with VMP, a free download from Olympian LED.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
