NovaStar CX40 Pro
4K LED display controller with 2x HDMI 2.0, DP 1.2, 2x 12G-SDI inputs, 6x 5Gbps Ethernet outputs, 1x 40Gbps fiber output, 3 independent 4K layers, and 9 million pixel capacity.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

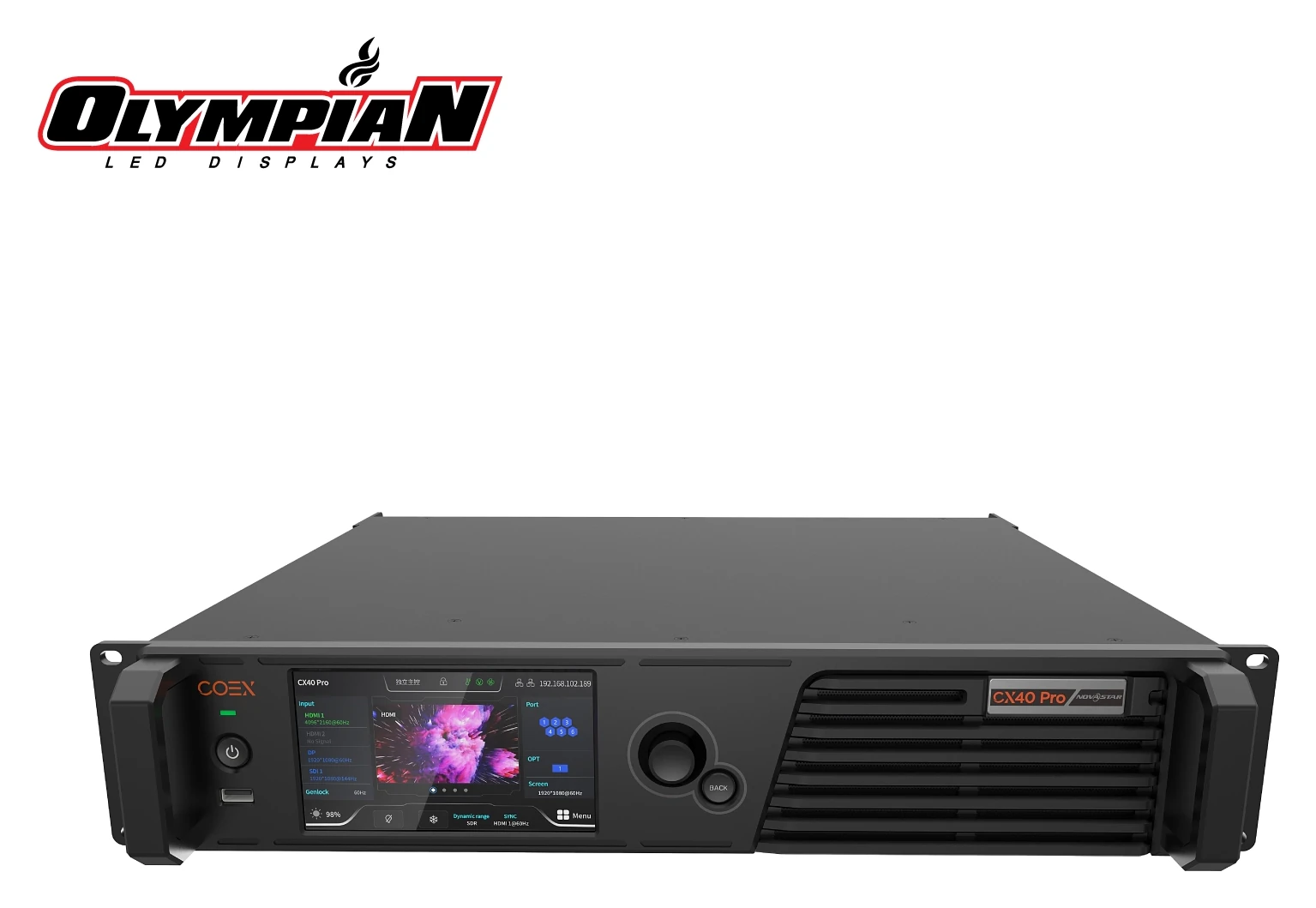

The CX40 Pro is a 4K LED display controller in NovaStar's COEX series. This controller offers rich video input connectors (2x HDMI 2.0 with loop through, 1x DP 1.2, and 2x 12G-SDI with loop through) and supports 5Gbps DATA output via 6x Ethernet ports and 40Gbps remote transmission via optical port. The CX40 Pro can also work with the brand-new VMP (Vision Management Platform) software to provide a better operation and control experience. Featuring a 5.5-inch touch LCD, it makes user operation and control much easier. ⚠️ IMPORTANT: The 5Gbps Ethernet outputs require 5G-compatible receiving cards - NOT compatible with standard Gigabit Ethernet receiving cards.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Layers | 3 layers |
| Maximum Pixels | 9 million pixels |

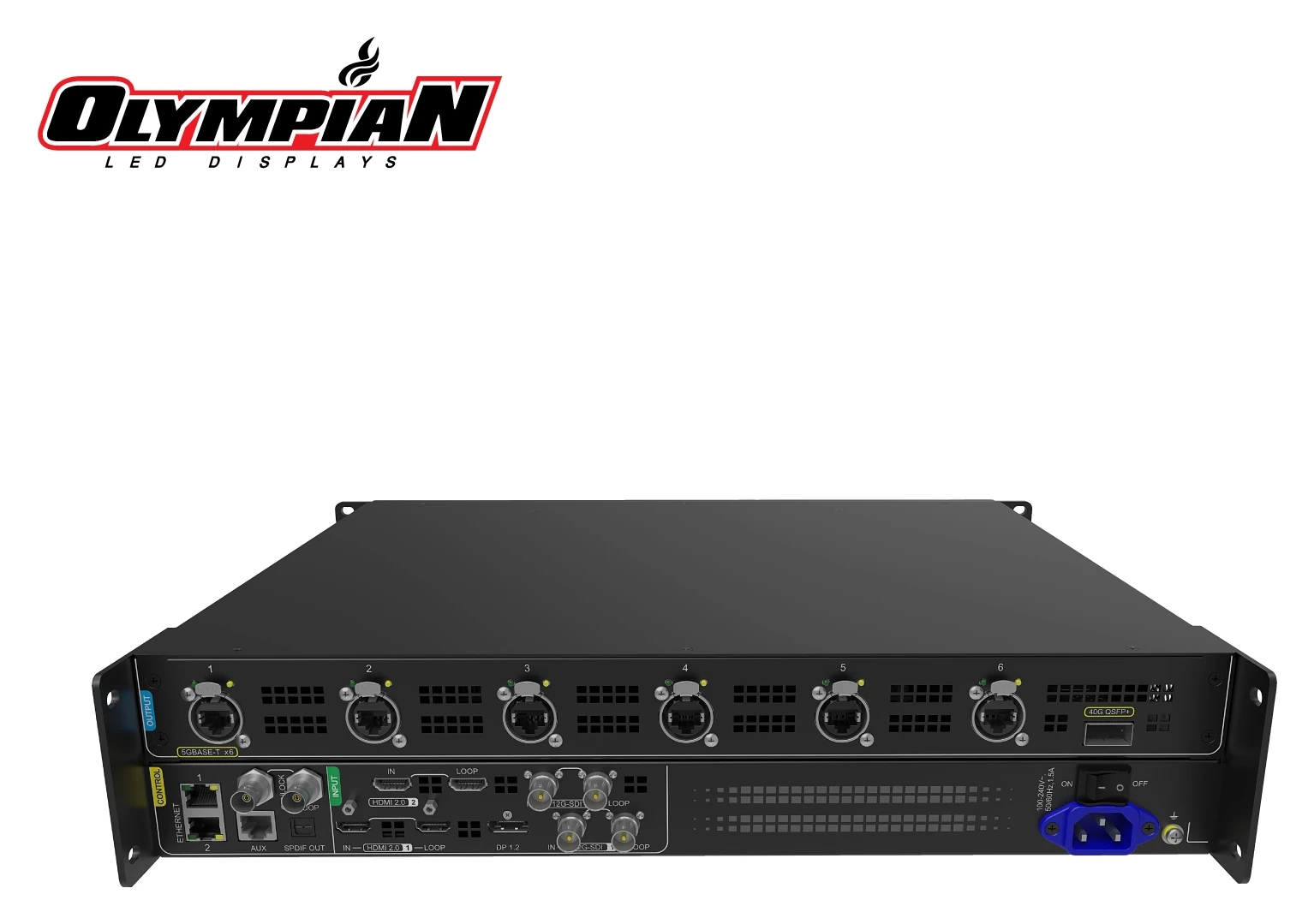

Input Connectors
| HDMI | 2x HDMI (with loop through, supports HDR10 and HLG, HDCP 2.2, max 4096×2160@60Hz, 12-bit) |
| DISPLAYPORT | 1x DisplayPort (max 4096×2160@60Hz, 12-bit) |
| SDI | 2x SDI (with loop through, max 4096×2160@60Hz, 12-bit) |
| GENLOCK | 1x Genlock (with loop through) |
| AUDIO | 1x Audio (digital audio output) |
Input Resolution Capabilities
| Input Resolutions | HDMI 2.0: up to 4096×2160@60Hz; DP 1.2: up to 4096×2160@60Hz; 12G-SDI: up to 4096×2160@60Hz; 12-bit, 10-bit, and 8-bit color depth |
Output & Connectivity
| Ethernet Output | 6x 5Gbps Ethernet |
| Fiber Output | 1x 40Gbps Fiber |
Physical Specifications
| Power Input | 100-240V AC, 50/60Hz |
| Dimensions | 482.6 mm × 94.4 mm × 472.0 mm (19.0" × 3.7" × 18.6") |
| Net weight | 8.1 kg (17.9 lbs) |
| IP Rating | IP20 |
| Packing box | 595.0 mm × 575.0 mm × 215.0 mm (23.4" × 22.6" × 8.5") |
Working Modes
| • All-In-One Controller |
Software
| Firmware V1.5.1 | |
| COEX VMP 1.5.1 | |
| Compatible Software | VMP |
Frequently Asked Questions
What size LED wall can the CX40 Pro drive?
The CX40 Pro can drive 9 million pixels with 6 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the CX40 Pro suitable for rental applications?
Absolutely. The CX40 Pro is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the CX40 Pro?
The CX40 Pro is configured and controlled with VMP, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
