NovaStar CVT8-5GM
40Gbps multimode fiber converter with 8x 5G BaseT Ethernet ports
5G BaseT ports are only compatible with other 5G-enabled products - not compatible with standard Gigabit Ethernet receiving cards.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

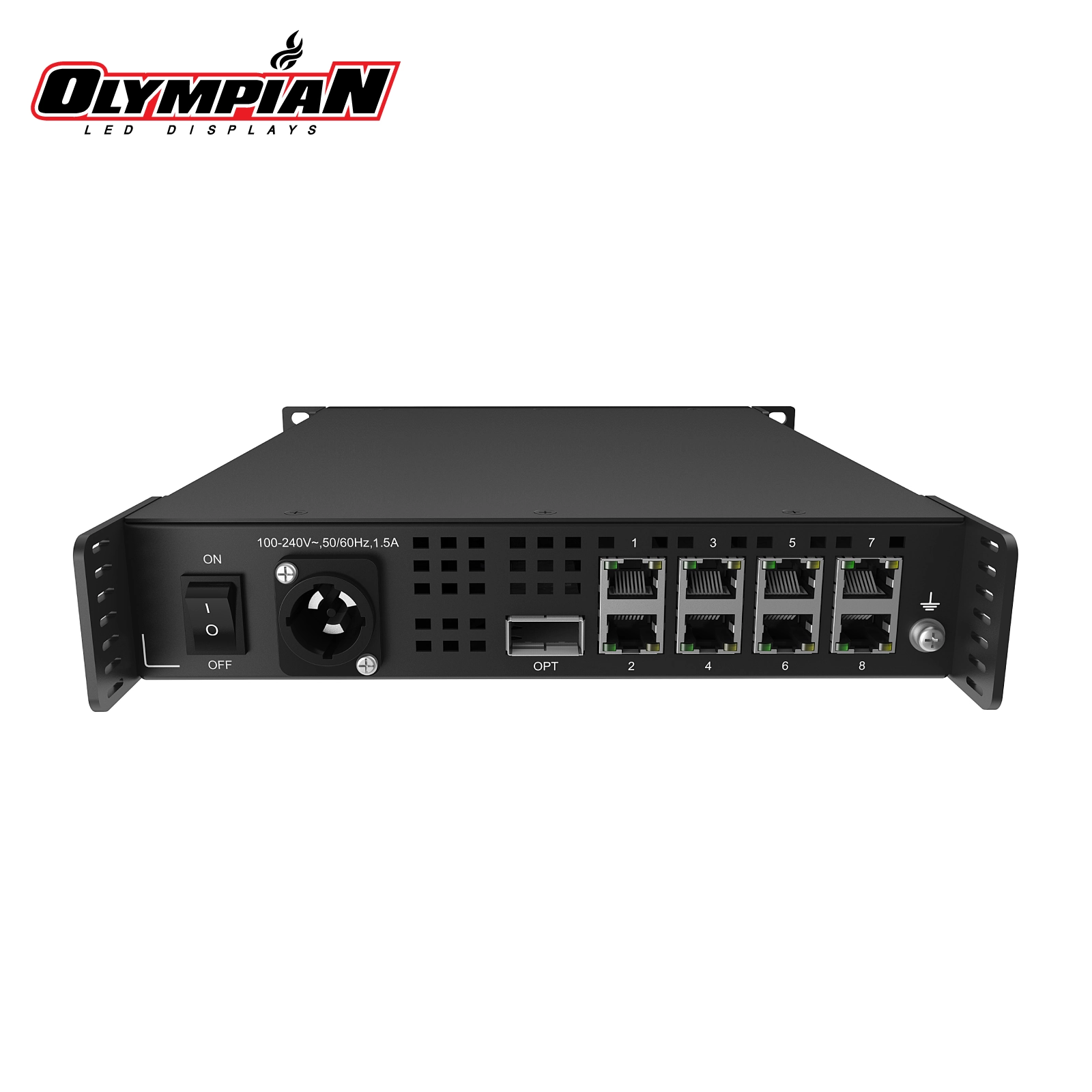

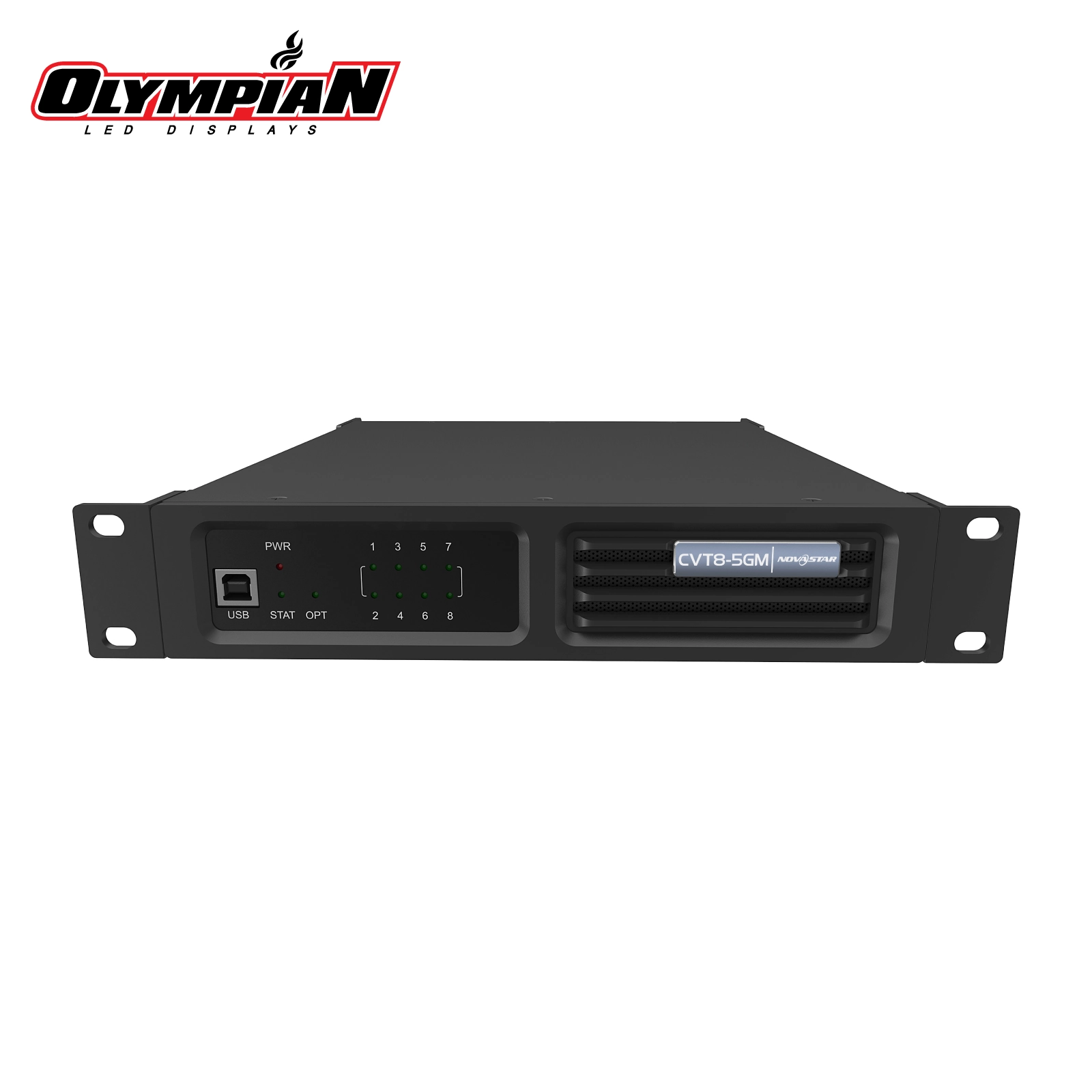

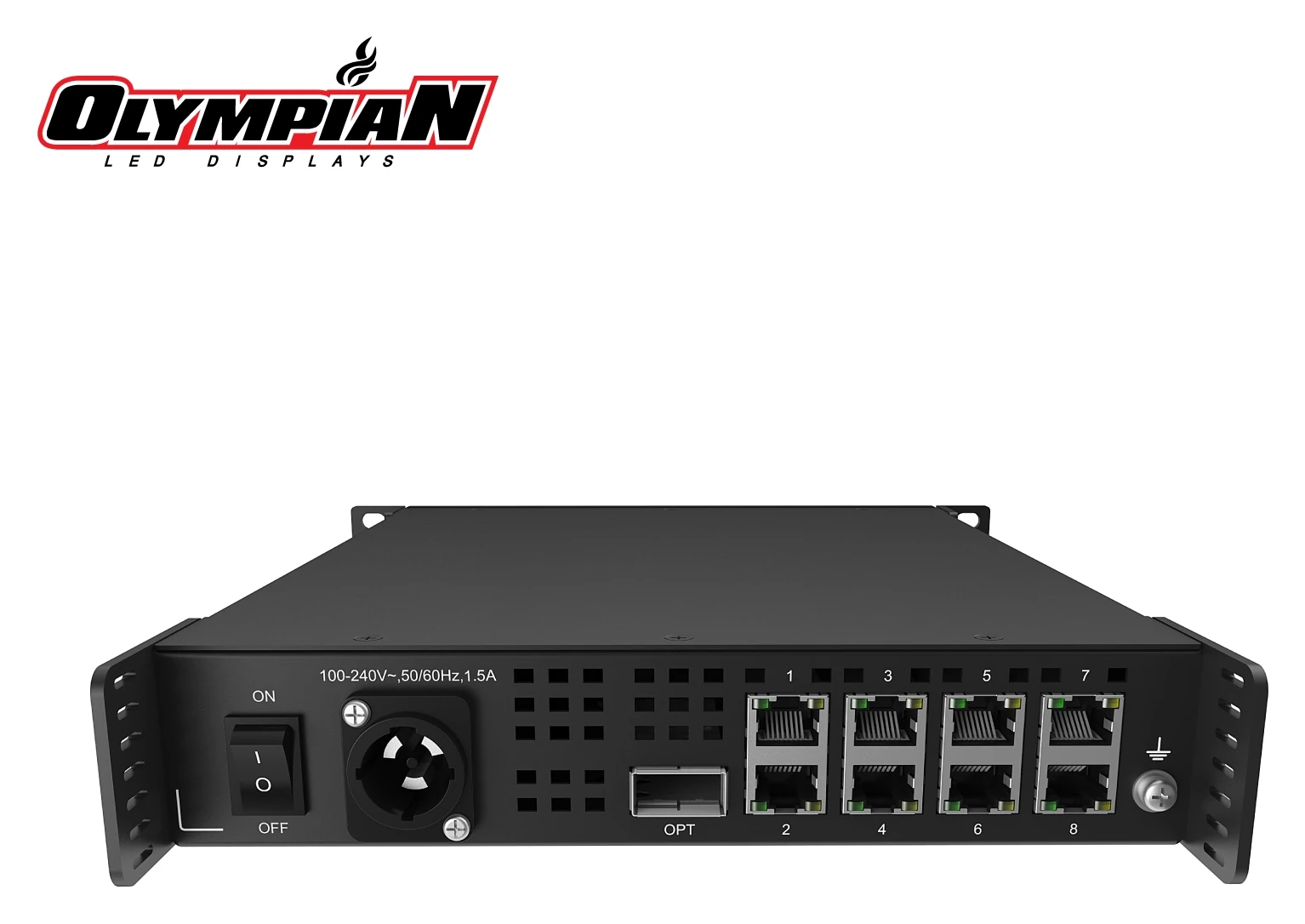

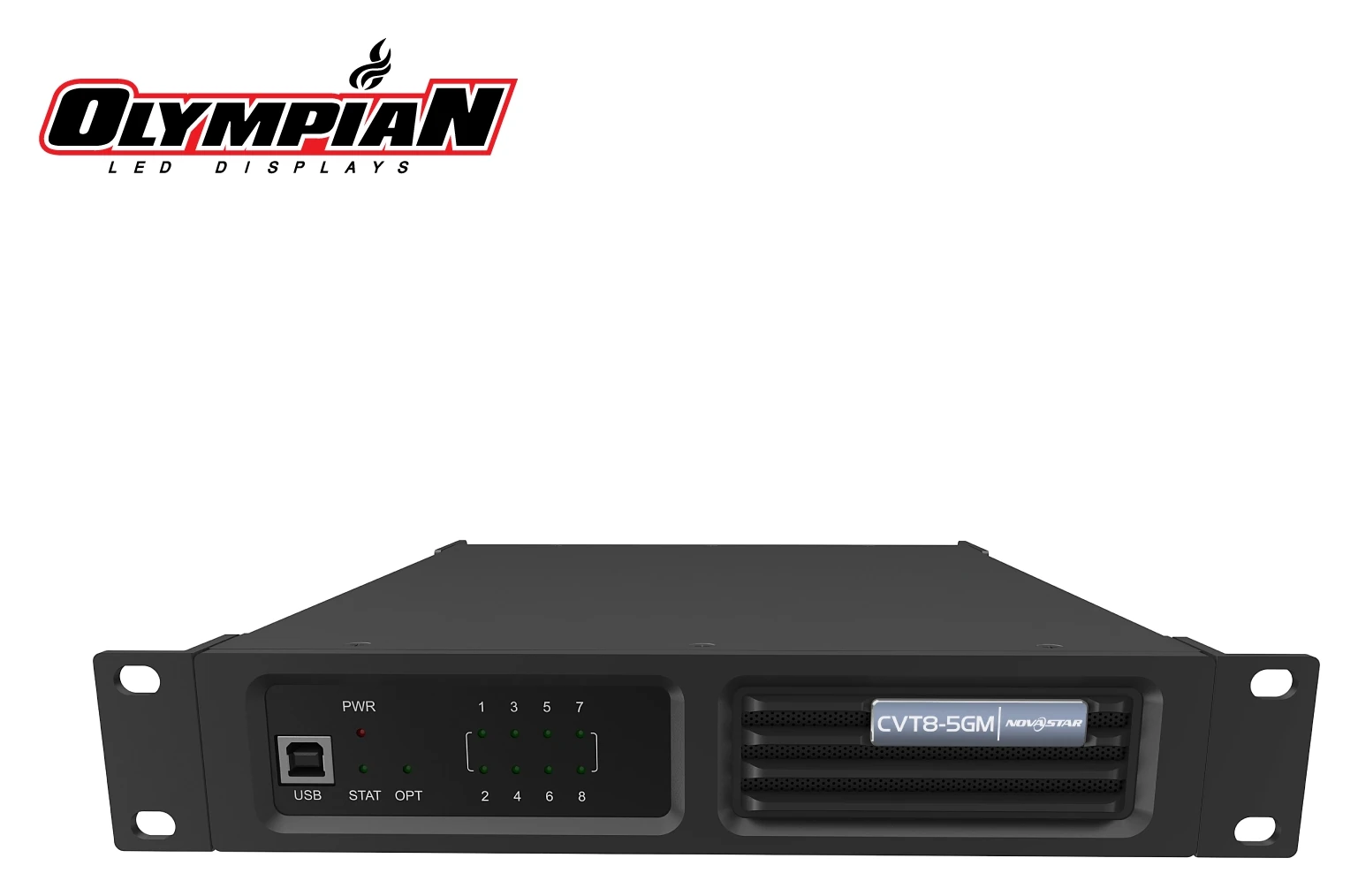

The CVT8-5GM is a high-performance 40Gbps multimode fiber converter featuring 8x 5G BaseT Ethernet ports, each delivering up to 5 Gbit/s bandwidth. The '5G' designation refers to 5 Gigabit Ethernet technology. This multimode version uses advanced 8-core MPO optical ports (different from the LC connectors on other models) providing 100m transmission distance with OM3 fiber or 150m with OM4 fiber. Compact 1U half-width design allows two units to be rack mounted side-by-side. Features PowerCON power supply, USB Type-B control, and ships with pre-installed optical modules. Supports CAT6 cables up to 100 meters per port.
Technical Specifications
Input Connectors
| FIBER | 1x 40G Multimode Fiber (MPO) (Multimode 8-core MPO, OM3/OM4, 50/125 μm) |
Output & Connectivity
| Ethernet Output | 8x 5G BaseT Ethernet (5 Gbit/s each) |
| Transmission Distance | 100m (OM3) / 150m (OM4) |
| Included | Pre-installed 40G multimode optical module |
Physical Specifications
| Dimensions | 254.3 mm × 50.6 mm × 290.0 mm (10.0" × 2.0" × 11.4") |
| Operating Temperature | -20C to +45C |
✨ Key Features
- 40G Fiber
- 5G
🌡️ Environmental Specifications
| Operating Temperature | -20C to +45C |
