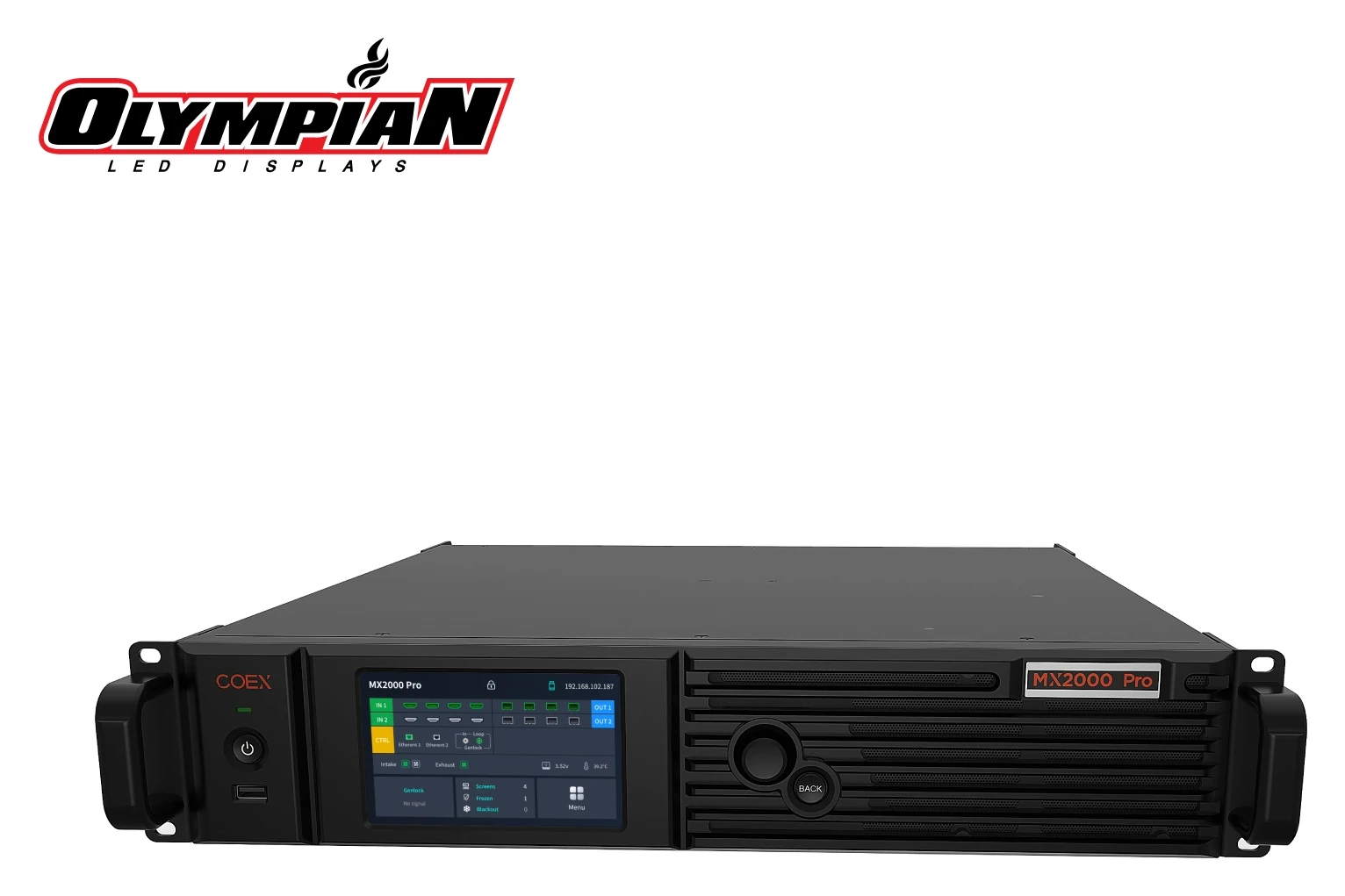

NovaStar MX2000 Pro
Its remarkable features include 12-bit color depth, 480 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing precise brightness control, true-to-life color fidelity, and an excellent image quality.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Its remarkable features include 12-bit color depth, 480 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing precise brightness control, true-to-life color fidelity, and an excellent image quality. Its card-based modular design is specifically tailored for future LED displays, allowing for flexible input and output card configurations that are stable and easy to maintain. With a compact 2U size, it supports up to 8x 4K@60Hz or 4x 8K@30Hz video inputs, with a maximum load capacity of 35.38 million pixels, making it ideal for large-screen configurations. Input options: 2x input card slots supporting 4K cards (4x HDMI 2.0, 4x DP1.2, 4x 12G-SDI), 8K cards (1x DP 1.4 8K@60Hz, 2x HDMI 2.1, 2x DP 1.4, 1x DP 1.4 + 1x HDMI 2.1), or VoIP cards (1x ST 2110 100G, 1x ST 2110 25G, 2x ST 2110 25G). Fiber output options: up to 2x 4x10G fiber output cards or up to 2x 1x40G fiber output cards.
Key Highlights
Key Features
⚙️ Modular Configuration

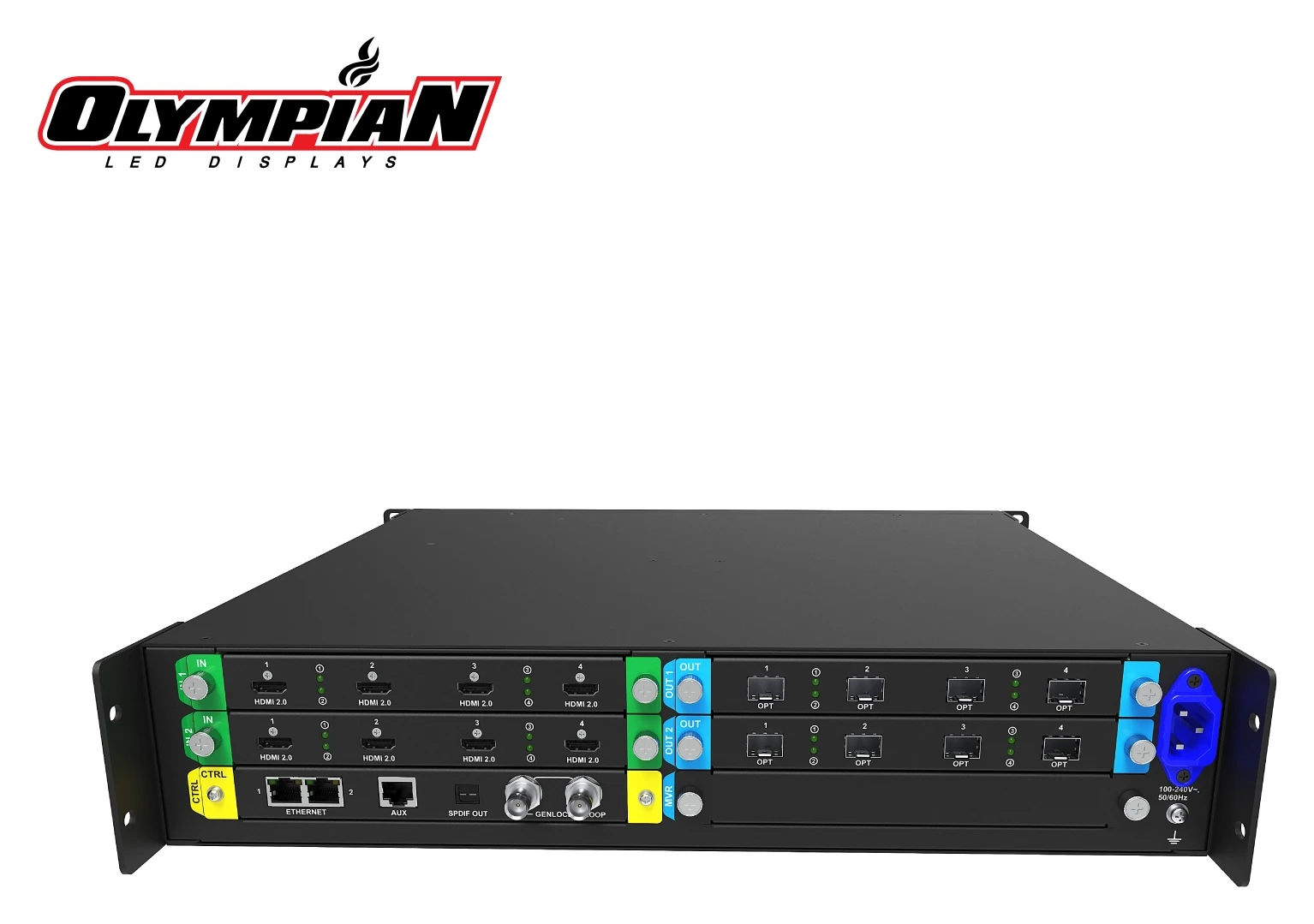

The MX2000 Pro features a modular design - configure it with your choice of input and output cards
Available Input Cards (12)
Available Output Cards (4)
Technical Specifications
Video Processing
| Layers | 4 layers |
| Maximum Pixels | Up to 35.38 million pixels |
Output & Connectivity
| Fiber Output | 4x Fiber |
Physical Specifications
| Dimensions | 482.6 mm × 94.6 mm × 529.7 mm (19.0" × 3.7" × 20.9") |
| IP Rating | IP20 |
| Packing box | 660.0 mm × 570.0 mm × 210.0 mm (26.0" × 22.4" × 8.3") |
Working Modes
| • Fiber Converter |
Software
| COEX VMP 1.5.1 | |
| Compatible Software | VMP |
Frequently Asked Questions
What size LED wall can the MX2000 Pro drive?
The MX2000 Pro can drive Up to 35.38 million pixels with multiple Ethernet outputs, suitable for medium to large-scale LED displays.
Is the MX2000 Pro suitable for rental applications?
Absolutely. The MX2000 Pro is designed for professional rental, staging, and touring applications where reliability is critical.
How many cards does the MX2000 Pro hold?
The MX2000 Pro has 2 input card slots and 2 output card slots. You only buy the cards your project needs, and you can add more later as requirements grow.
What pixel capacity does the MX2000 Pro support?
Capacity depends on the output cards installed: fully loaded, the MX2000 Pro drives Up to 35.38 million pixels. The 4x-fiber Enhanced sending card reaches the maximum and adds four dedicated redundant backup ports.
What software controls the MX2000 Pro?
The MX2000 Pro is configured and controlled with VMP, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
