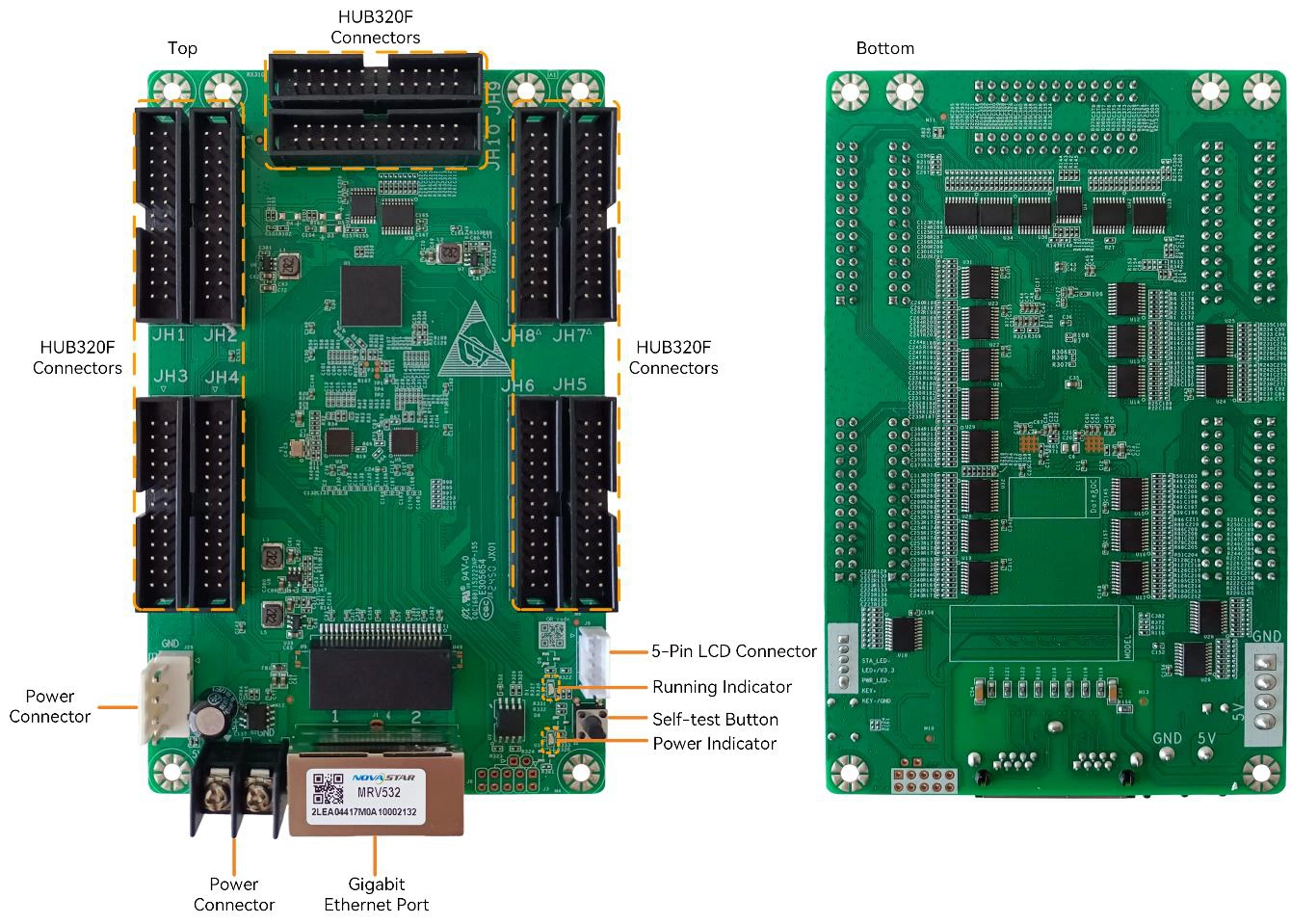

NovaStar MRV532
Supporting various functions such as Color Management, 18bit+, HDR, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adju stment, Low Latency, 3D, Individual Gamma Adjustment for RGB, 90° Image Rotation, and Free Image Rotation, the MRV532 can significantly improve the display effect and user experience.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Supporting various functions such as Color Management, 18bit+, HDR, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adju stment, Low Latency, 3D, Individual Gamma Adjustment for RGB, 90° Image Rotation, and Free Image Rotation, the MRV532 can significantly improve the display effect and user experience. Additionally, the product supports flash management for the module, allowing for the storage and readback of calibration coefficients and module IDs as needed. MRV532
Key Highlights
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 146.0 mm × 91.5 mm × 19.3 mm (5.7" × 3.6" × 0.8") |
| Net weight | 99.5 g |
| Packing box | 625.0 mm × 180.0 mm × 470.0 mm (24.6" × 7.1" × 18.5") |
Load Capacity
| PWM Driver ICs | 512×512@60Hz (8-bit) · 512×256@60Hz (10/12-bit) |
| Common Driver ICs | 512×512@60Hz (8-bit) · 512×256@60Hz (10/12-bit) |
Software
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the MRV532 for my LED modules?
The MRV532 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the MRV532?
The MRV532 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
