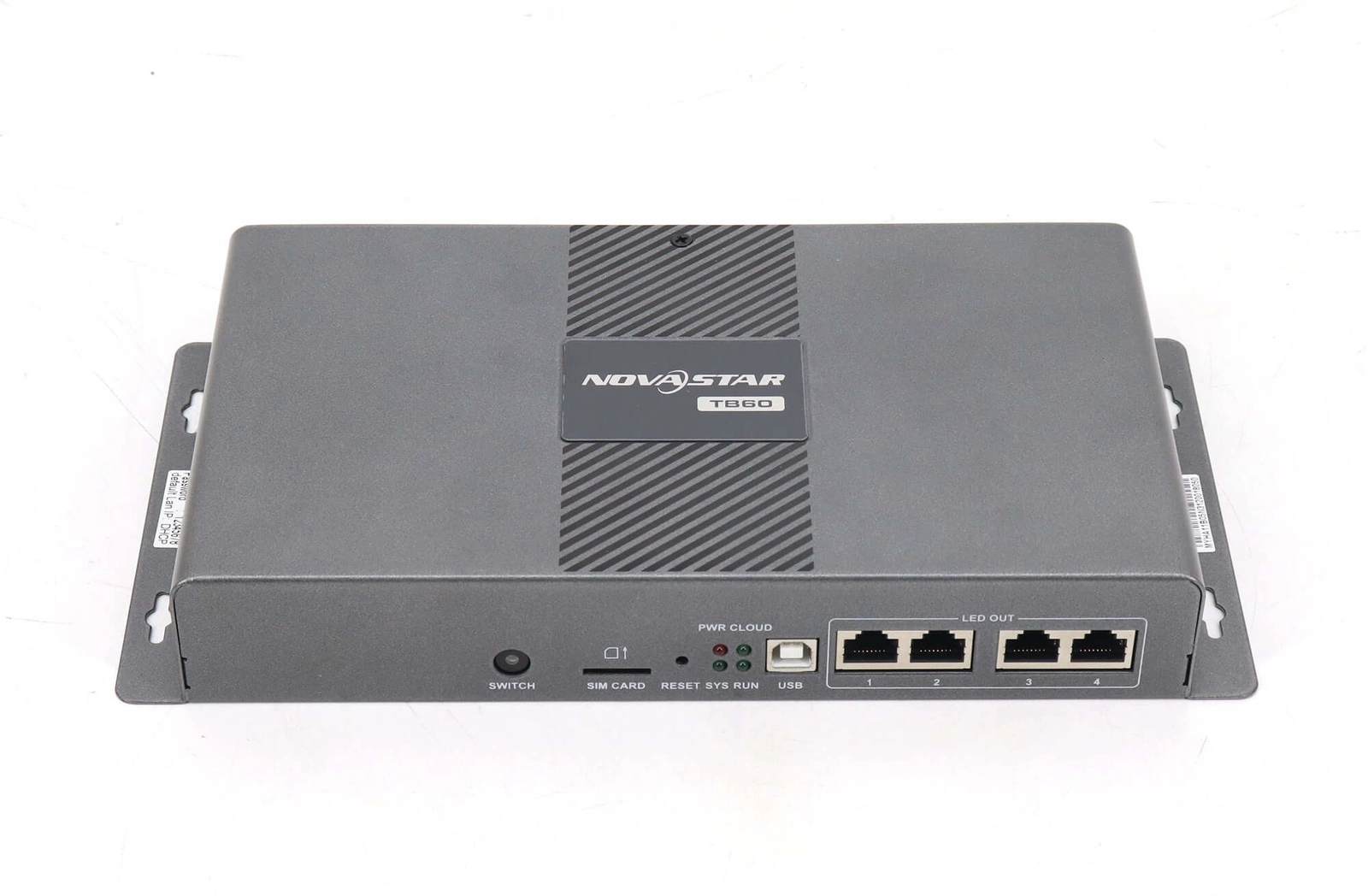

NovaStar TB60
The TB60 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB60 enables users to manage LED displays from an Internet-connected device anywhere, anytime. Support for multi-screen synchronous playback and synchronous and asynchronous modes makes this multimedia player a perfect fit for a wide range of applications.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Key Highlights
Key Features
Backup
Technical Specifications
Video Processing
| Layers | 1 layer |
| Maximum Pixels | 2.3 million pixels |
| Maximum Width | 4096 pixels |
| Maximum Height | 4096 pixels |
Input Connectors
| HDMI | 1x HDMI 1.3 |
Input Resolution Capabilities
| HDMI 1.3 | |
| Standard | 1920×1200@60Hz |
| Max. width | 1920 |
| Max. height | 1200 |

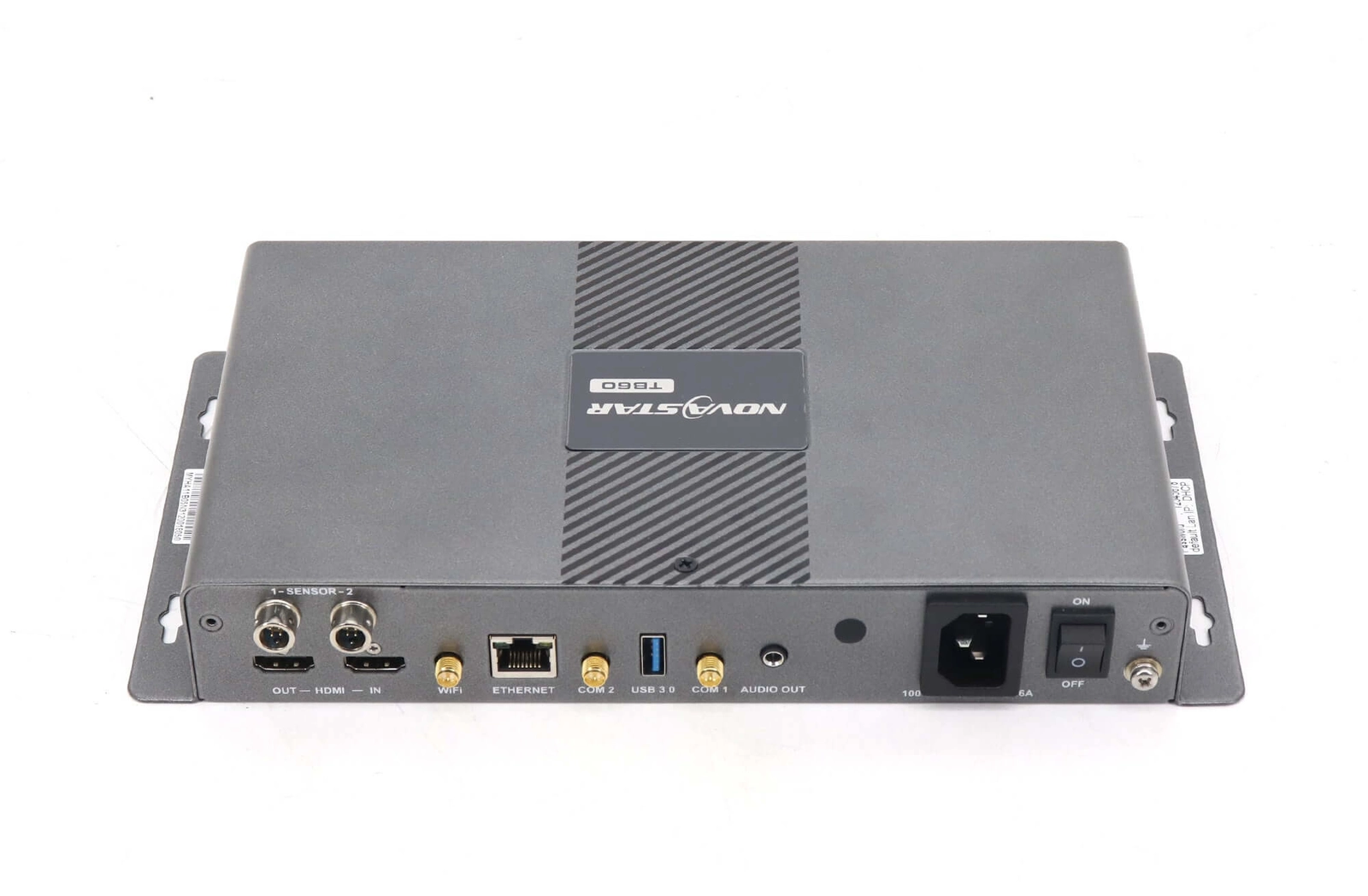

Output & Connectivity
| Ethernet Output | 4x Gigabit Ethernet |
| Ethernet Control | 1x Gigabit Ethernet (network/control) |
| Monitoring | 1x HDMI 1.3 (1920×1200@60Hz) |
| Audio Output | 1x Stereo audio output (48kHz sample rate) |
| Wi-Fi | 2.4 GHz Wi-Fi (AP and Sta modes simultaneously) |
| USB Ports | 1x USB 3.0 Type-A (upgrade/play/storage expansion, supports Ext4 and FAT32), 1x USB Type-B (for controlling computer connection) |
| Sensor Connectors | 2x Sensor connectors (brightness sensor or temperature and humidity sensor) |
Hardware
| Processor | Quad-core ARM A55 processor @1.8 GHz |
| RAM | 1 GB |
| Storage | 32 GB |
| Operating System | Android 11 |
| Video Decoding | Hardware decoding of H.264/H.265 4K@60Hz videos |
| Playback Capability | 1x 4K, 2x 1080p, 4x 720p, 4x 480p, or 6x 360p videos |
Physical Specifications
| Power Input | 100-240V~, 50/60Hz, 0.6A |
| Dimensions | 274.3 mm × 139.0 mm × 40.0 mm (10.8" × 5.5" × 1.6") |
| Net weight | 1230.4 g (2.7 lbs) |
| IP Rating | IP20 |
Features
Working Modes
| • Synchronous |
| • Asynchronous |
Software
| Firmware 5.0.0.2301 | |
| NovaLCT 5.9.1 | |
| ViPlex Express 3.0.5.1501 | |
| Compatible Software | NovaLCT, ViPlex Express |
Frequently Asked Questions
What is the password for the wireless network?
For older Taurus devices, the default Wi-Fi password is "12345678". For newer devices, the default password is "SN2008@+" unless you have already changed it. If you are locked out, there is a factory reset button on the device that will restore the default password.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
