NovaStar T30

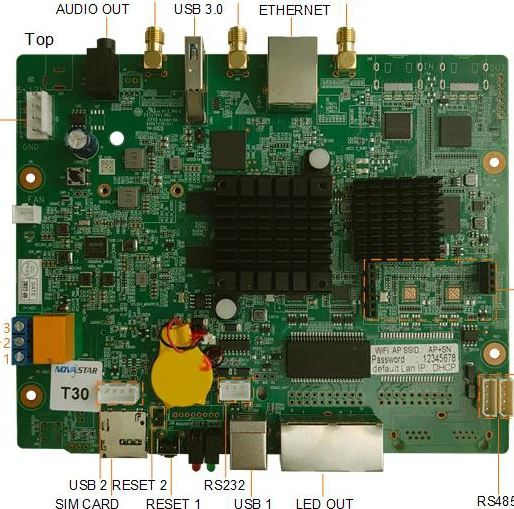

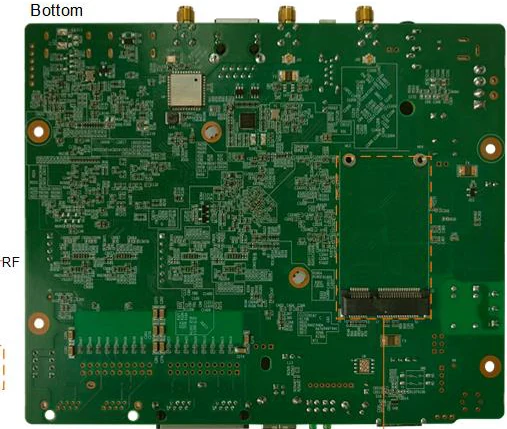

The T30 is the open-frame (board-level) edition of NovaStar's Taurus multimedia player — the same integrated playback-and-sending electronics as the enclosed TB30, supplied as a bare control board for integration into custom LED cabinets and OEM enclosures.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The T30 is the open-frame (board-level) edition of NovaStar's Taurus multimedia player — the same integrated playback-and-sending electronics as the enclosed TB30, supplied as a bare control board for integration into custom LED cabinets and OEM enclosures. The TB30 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime. Thanks to its reliability, ease of use, and intelligent control, the TB30 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and much more.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Layers | 1 layer |
| Maximum Pixels | 0.65 million pixels |
| Maximum Width | 4096 pixels |
| Maximum Height | 4096 pixels |
Input Connectors
| INPUTS | • 1x USB 3.0 (Type A) port • 1x USB (Type B) port |
Output & Connectivity
| Ethernet Output | 2x Gigabit Ethernet |
| Ethernet Control | 1x Gigabit Ethernet (network/control) |
| Audio Output | 1x Stereo audio output (OMTP headphones, 48kHz sample rate) |
| Wi-Fi | 2.4 GHz Wi-Fi (AP and Sta modes simultaneously) |
| USB Ports | 1x USB 3.0 Type-A (upgrade/play/storage expansion, supports Ext4 and FAT32), 1x USB Type-B (for controlling computer connection) |
| Sensor Connectors | 2x Sensor connectors (brightness sensor or temperature and humidity sensor) |
Hardware
| Processor | Quad-core ARM A55 processor @1.8 GHz |
| RAM | 1 GB |
| Storage | 32 GB |
| Operating System | Android 11 |
| Video Decoding | Hardware decoding of H.264/H.265 4K@60Hz videos |
| Playback Capability | 1x 4K, 2x 1080p, 5x 720p, 6x 480p, or 6x 360p videos |
Physical Specifications
| Power Input | DC 5 V–12 V (max 18 W, 25 W recommended) |
| Dimensions | 165.0 mm × 146.4 mm × 21.2 mm (6.5" × 5.8" × 0.8") |
| Net weight | 179.7 g |
| IP Rating | IP20 |
Working Modes
| • Synchronous |
| • Asynchronous |
Software
| NovaLCT 5.9.1 | |
| ViPlex Express 3.0.5.1501 | |
| Compatible Software | NovaLCT, ViPlex Express |
Frequently Asked Questions
What is the password for the wireless network?
For older Taurus devices, the default Wi-Fi password is "12345678". For newer devices, the default password is "SN2008@+" unless you have already changed it. If you are locked out, there is a factory reset button on the device that will restore the default password.
What software controls the T30?
The T30 is configured and controlled with NovaLCT, ViPlex Express, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
