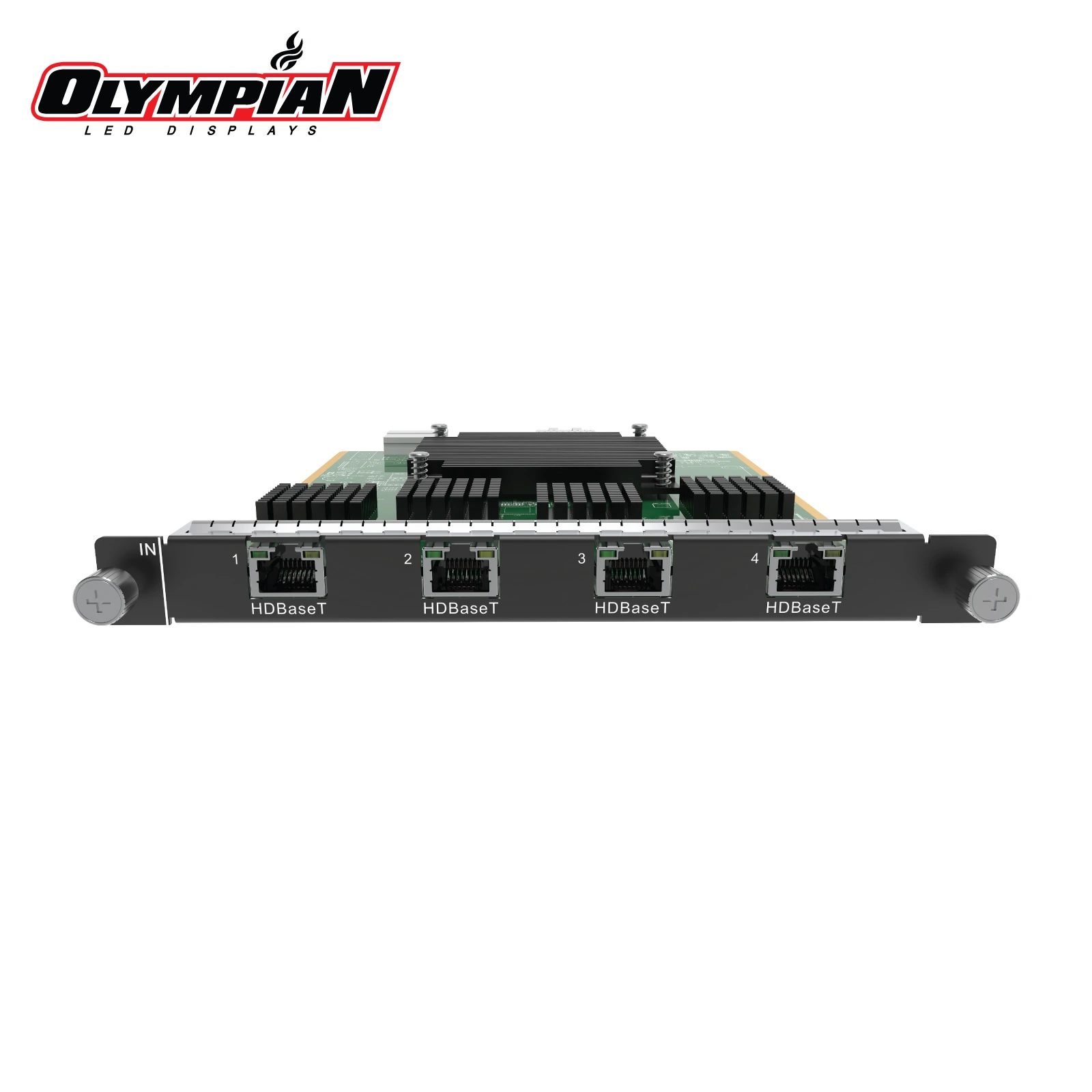

NovaStar H_4x HDBaseT Input Card
The H_4x HDBaseT Input Card lets a NovaStar H-Series processor receive video over standard RJ45 Cat cabling using HDBaseT, with four Gigabit Ethernet RJ45 ports for long-distance signal extension. It supports both single link mode, where all four connectors are active at up to 1920x1080@60Hz each, and dual link mode, where connectors 2 and 4 carry up to 3840x2160@30Hz. The card is HDCP 1.4 compliant, supports accompanied audio, and works with the H2, H5, H9, H15, and H20 processors.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Running video long distances over inexpensive Cat cabling instead of HDMI/DVI
Large venues, lecture halls, and houses of worship with remote source locations
Permanent installs where structured RJ45 cabling is already in place
Bringing remote 4K@30Hz sources to the wall over a single HDBaseT link
Why an HDBaseT input card?
HDBaseT carries video, audio, and control over a single standard RJ45 Cat cable, which makes it ideal when sources are far from the processor. This card adds four HDBaseT receive ports to an H-Series unit, so you can pull remote feeds across the room or building without expensive long HDMI runs.
Choose this card when distance is the challenge. Single link mode gives you four full-HD inputs over four cables; dual link mode trades two connectors for higher bandwidth, supporting 4K@30Hz on a single link. Accompanied audio rides along with the video, and HDCP 1.4 keeps protected content compliant.
Key Highlights
Technical Specifications
Single Link Input
| Mode Description | Four connectors all available for input |
| Max Resolution | 1920×1080@60Hz per connector |
| Min Resolution | 800×600@59.94Hz |
| Hdcp | HDCP 1.4 |
| Custom Resolution Max Width | 2560 pixels |
| Custom Resolution Max Width Example | 2560×983@60Hz |
| Custom Resolution Max Height | 2560 pixels |
| Custom Resolution Max Height Example | 884×2560@60Hz |
Dual Link Input
| Mode Description | Connector 2 and 4 available for input |
| Max Resolution | 3840×2160@30Hz per connector |
| Min Resolution | 800×600@59.94Hz |
| Custom Resolution Max Width | 3840 pixels |
| Custom Resolution Max Width Example | 3840×1202@60Hz |
| Custom Resolution Max Height | 3840 pixels |
Specifications
- 4x RJ45 Gigabit Ethernet ports
- Support for single link and dual link input modes
- Supports accompanied audio
Frequently Asked Questions
What connectors does this card use?
Four RJ45 Gigabit Ethernet ports for HDBaseT signal extension over standard Cat cabling.
What resolutions are supported?
Single link mode: up to 1920x1080@60Hz per connector with all four active. Dual link mode: up to 3840x2160@30Hz on connectors 2 and 4.
Does it carry audio?
Yes, it supports accompanied audio along with the video.
Is it HDCP compliant?
Yes, it is HDCP 1.4 compliant.
What is the advantage of HDBaseT over HDMI?
HDBaseT transmits over inexpensive RJ45 Cat cabling for much longer reliable cable runs than standard HDMI, which is useful when sources are far from the processor.
Which processors is it for?
The H-Series modular processors: H2, H5, H9, H15, and H20.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
