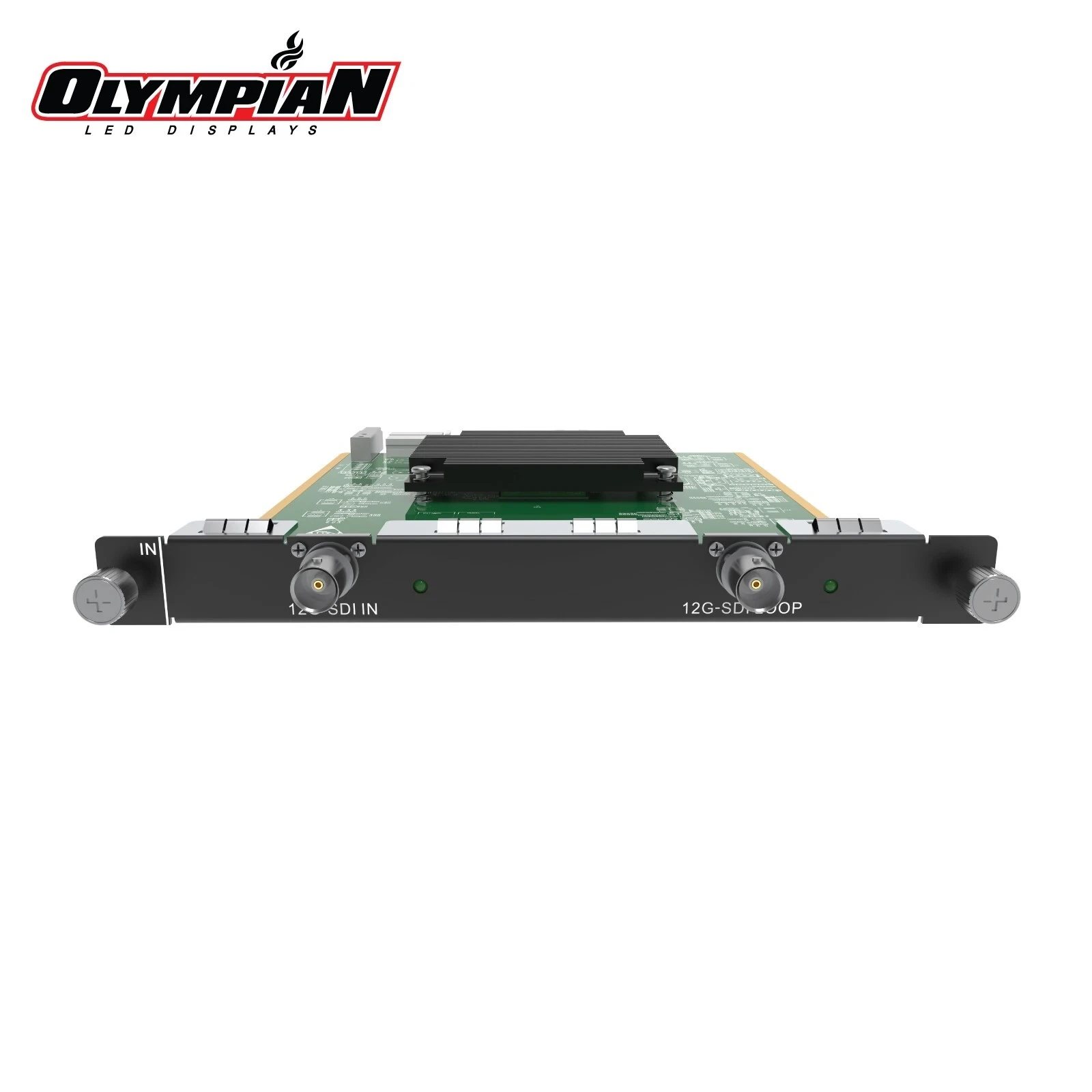

NovaStar H_1x 12G SDI Input Card
Bring a single broadcast-grade SDI feed up to 4K into your H-Series processor over one BNC coax. The H-Series 1x 12G-SDI Input Card accepts 4096x2160@60Hz, is backward compatible with 6G/3G/HD/SD-SDI, handles 1080i/576i/480i de-interlacing, and includes an active 12G-SDI loop-out for monitoring or chaining. Compatible with the H2, H5, H9, H15 and H20 modular video wall processors.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Live broadcast & OB trucks
Camera and switcher feeds
Stadiums & large venues with long cable runs
Studio production
Why 12G-SDI for your LED wall?
SDI is the backbone of professional broadcast and live production. It runs over a single rugged, locking BNC coax — no handshake, no HDCP, and reliable over long cable runs that HDMI simply can't manage. 12G-SDI carries a full 4K60 signal on one cable.
This card de-interlaces legacy 1080i/576i/480i sources and provides an active loop-out so you can pass the signal to a monitor or another device. It stays backward compatible with 6G, 3G, HD and SD-SDI, so older cameras and switchers just work.
Key Highlights
Technical Specifications
1x 12G-SDI IN
| Max Resolution | 4096×2160@60Hz |
Specifications
- Backward compatible with 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
- Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 SD
- Supports 1080i/576i/480i de-interlacing processing
- Does not support input resolution and bit depth settings
- 1x 12G-SDI LOOP: Loop out the 12G-SDI signal
Frequently Asked Questions
What resolution does it support?
Up to 4096x2160@60Hz over a single 12G-SDI BNC connection.
Why SDI instead of HDMI?
SDI uses a single locking BNC coax with no HDCP handshake and is reliable over long cable runs — the standard for broadcast and live production.
Is it backward compatible with older SDI?
Yes — 6G-SDI, 3G-SDI, HD-SDI and SD-SDI are all supported, covering ST-2082-1, ST-2081-1, ST-424, ST-292 and SMPTE 259.
Does it handle interlaced sources?
Yes, it de-interlaces 1080i, 576i and 480i signals.
What is the loop-out for?
The active 12G-SDI loop-out passes the incoming signal through to a monitor or another device for monitoring or chaining.
Which processors is this card compatible with?
It works in the H2, H5, H9, H15 and H20 modular video wall processors, using one input slot.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the H_1x 12G SDI Input Card, contact Olympian LED today.
