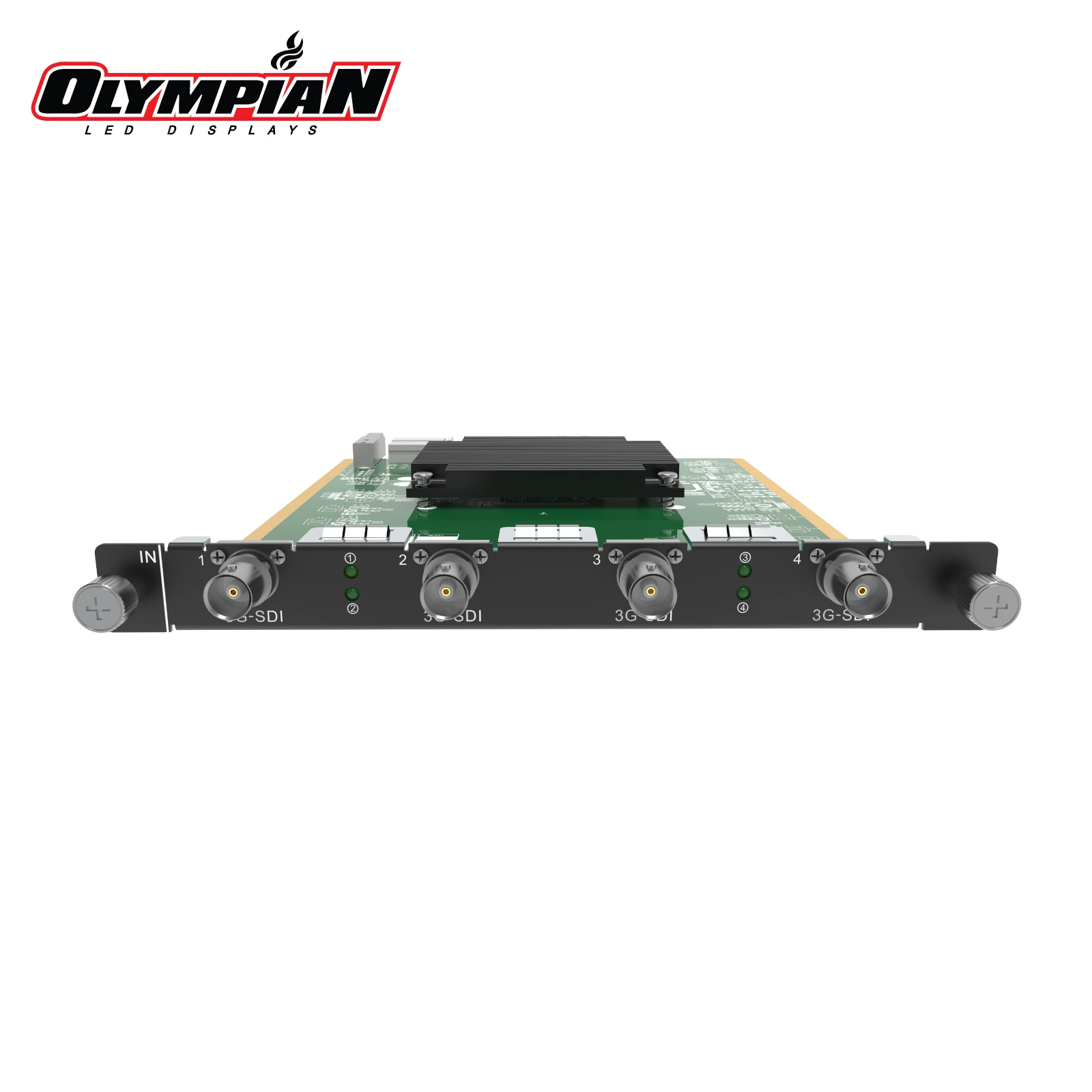

NovaStar H_4x 3G SDI Input Card
The H_4x 3G SDI Input Card adds four 3G-SDI inputs to a NovaStar H-Series modular video wall processor, accepting professional broadcast signals over BNC. Each connector handles up to 1920x1080@60Hz and is backward compatible with HD-SDI and SD-SDI, supporting the ST-424 (3G), ST-292 (HD), and SMPTE 259 (SD) standards. It fits the input slots of the H2, H5, H9, H15, and H20 processors and includes built-in de-interlacing for 1080i/576i/480i sources.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Live broadcast and production trucks feeding SDI camera and switcher outputs to LED walls
Houses of worship and corporate AV using long-run SDI cabling over coax
Sports venues and stadiums distributing broadcast-grade 3G-SDI sources
Rental and staging shows that standardize on SDI infrastructure
Why an SDI input card?
SDI is the workhorse of professional video because it runs reliably over long coax runs with locking BNC connectors and carries broadcast-standard signals. This card brings four independent 3G-SDI inputs into an H-Series processor, each good for full 1080p60, and it falls back gracefully to HD-SDI and SD-SDI sources.
Choose this card when your sources are cameras, switchers, or playout systems that output SDI, or when cable distance and connector reliability matter more than 4K resolution. The integrated de-interlacing also cleans up legacy 1080i/576i/480i feeds so they display correctly on the wall.
Key Highlights
Technical Specifications
4x 3G-SDI
| Max Resolution | 1920×1080@60Hz per connector |
Specifications
- Backward compatible with HD-SDI and SD-SDI
- Supports ST-424 (3G), ST-292 (HD) and SMPTE 259 SD
- Supports 1080i/576i/480i de-interlacing processing
Frequently Asked Questions
How many SDI inputs does this card provide?
Four independent 3G-SDI inputs, each over a BNC connector.
What is the maximum resolution per input?
Up to 1920x1080@60Hz per 3G-SDI connector.
Is it compatible with older SDI formats?
Yes. It is backward compatible with HD-SDI and SD-SDI, and supports ST-424 (3G), ST-292 (HD), and SMPTE 259 (SD).
Can it handle interlaced sources?
Yes. It includes de-interlacing processing for 1080i, 576i, and 480i signals.
Which processors does this card fit?
It is for the H-Series modular processors: H2, H5, H9, H15, and H20.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the H_4x 3G SDI Input Card, contact Olympian LED today.
