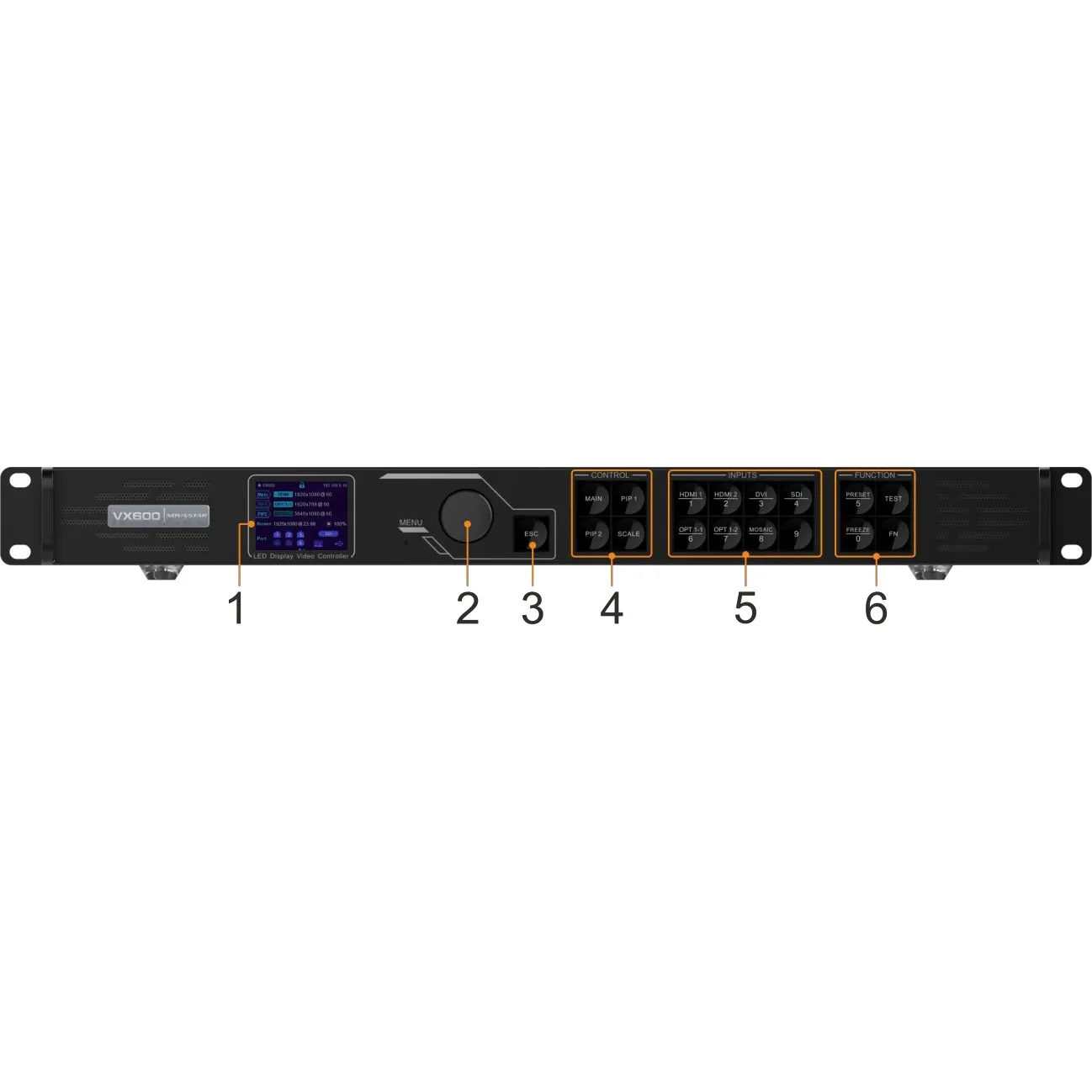

NovaStar VX600
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box.
The VX600 still ships today, but the VX600 Pro is its current-generation replacement. Compare VX600 vs VX600 Pro →
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Layers | 3 layers |
| Maximum Pixels | 3.9 million pixels |
| Maximum Width | 10240 pixels |
| Maximum Height | 8192 pixels |
Input Connectors
| SDI | 1x 3G-SDI (IN & LOOP) |
| HDMI | 2x HDMI 1.3 |
| DVI | 1x DVI (IN & LOOP) |
Input Resolution Capabilities
| 3G-SDI | |
| Standard | 3G-SDI up to 1920×1080@60Hz |
| Notes | ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported. Deinterlacing processing supported. 3G-SDI loop through output supported. Does NOT support input resolution and bit depth settings. |
| HDMI 1.3 | |
| Standard | HDMI 1.3 up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 2784 |
| Notes | HDCP 1.4 compliant. Does NOT support interlaced signal inputs. Custom resolutions supported. Max width: 3840 (3840×648@60Hz). Max height: 2784 (800×2784@60Hz). Forced inputs supported: 600×3840@60Hz. Loop through output supported on HDMI 1.3-1. |
| DVI | |
| Standard | DVI up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 2784 |
| Notes | HDCP 1.4 compliant. Does NOT support interlaced signal inputs. Custom resolutions supported. Max width: 3840 (3840×648@60Hz). Max height: 2784 (800×2784@60Hz). Forced inputs supported: 600×3840@60Hz. Loop through output supported. |
Output & Connectivity
| Ethernet Output | 6x Gigabit Ethernet |
| Fiber Output | 2x Fiber |
| Monitoring | 1x HDMI 1.3 (monitoring) |
Physical Specifications
| Dimensions | 483.6 mm × 351.2 mm × 50.1 mm (19.0" × 13.8" × 2.0") |
| Net weight | 4.0 kg (8.8 lbs) |
Working Modes
| • Video Controller |
| • Fiber Converter |
| • ByPass Mode |
Software
| Firmware V2.5.1 | |
| NovaLCT 5.9.1 | |
| V-Can 3.8.0 | |
| Compatible Software | NovaLCT, V-Can |
Frequently Asked Questions
What size LED wall can the VX600 drive?
The VX600 can drive 3.9 million pixels with 6 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the VX600 suitable for rental applications?
Absolutely. The VX600 is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the VX600?
The VX600 is configured and controlled with NovaLCT, V-Can, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the VX600, contact Olympian LED today.
