NovaStar VX16s
The VX16s is NovaStar's new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit.
Our system shows zero right now, but that is often not the whole story — we may have just received a batch we have not logged yet, have reserved units that freed up, or have more arriving within a day, and if not we can usually source it fast. Email us and we will check the real count and come right back to you.
📧 Email Us — We May Have It Check Availability 📞 Call 321-747-3220The VX16s still ships today, but the VX2000 Pro is its current-generation replacement. Compare VX16s vs VX2000 Pro →
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The VX16s is NovaStar's new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStar's video control software V-Can, it enables richer image mosaic effects and easier operations. The VX16s supports a variety of video signals, Ultra HD 4K ×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels. Thanks to its powerful image processing and sending capabilities, the VX16s can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Key Features
Technical Specifications
Video Processing
| Layers | 3 layers |
| Max Input Resolution | 4K×2K@60HZ |

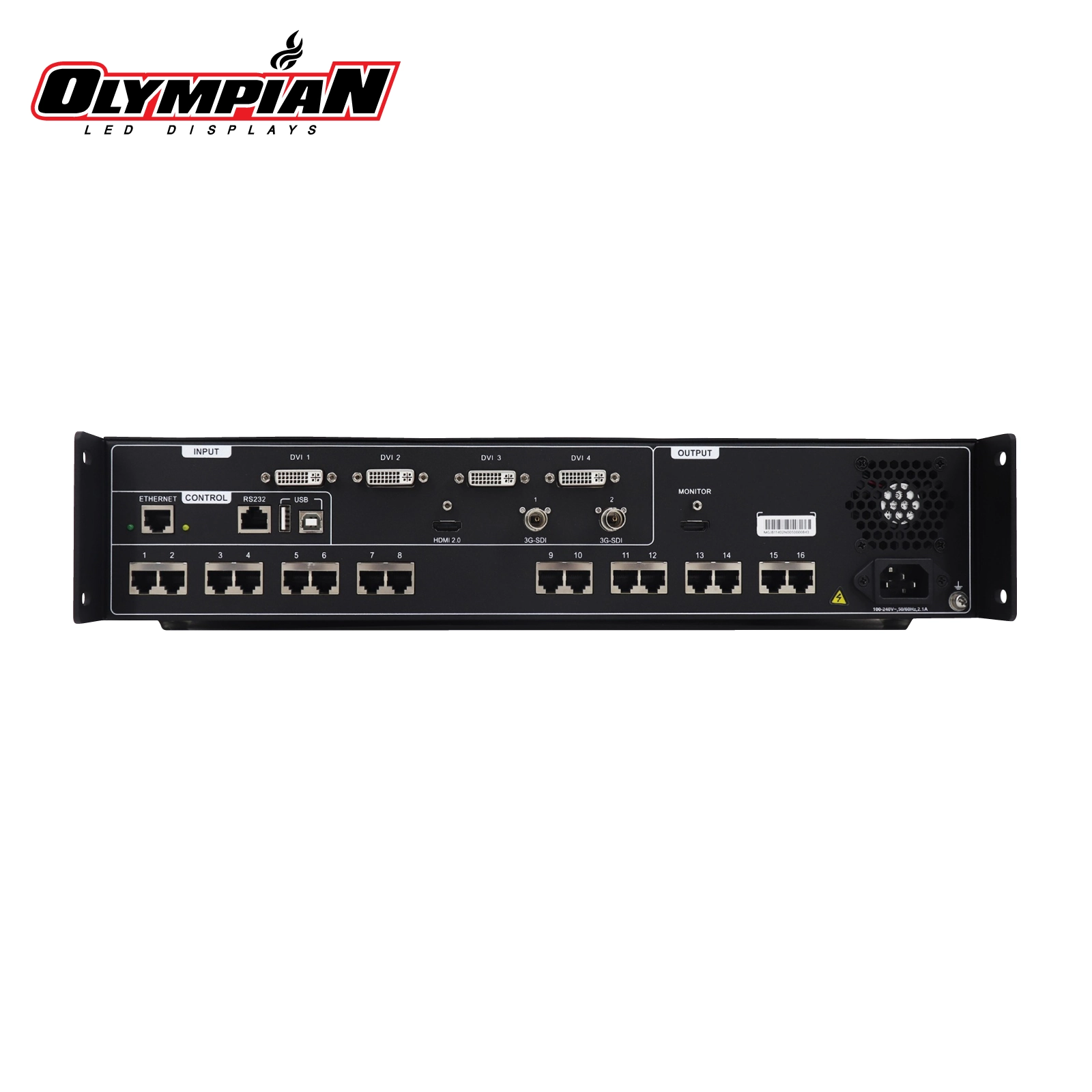

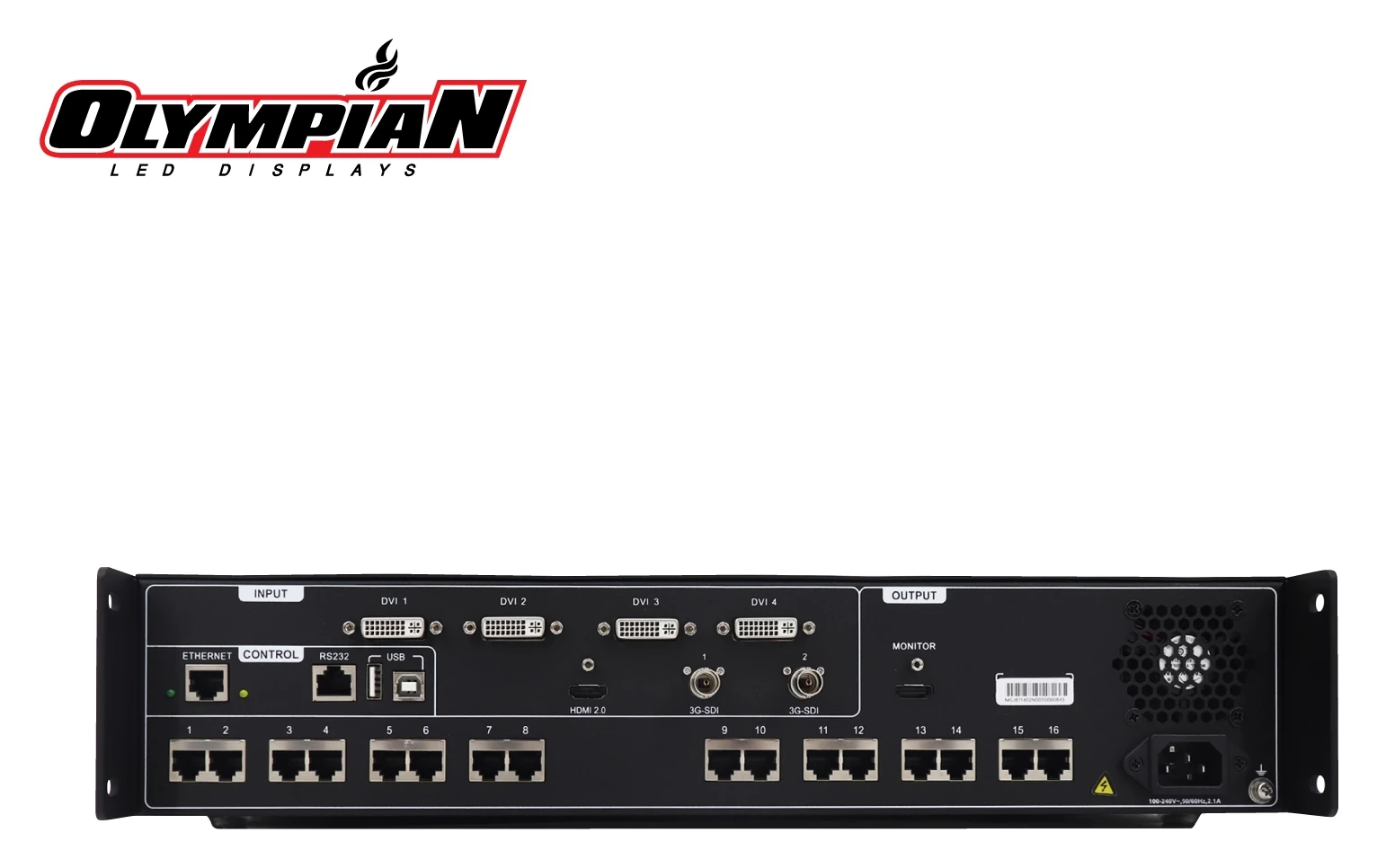

Input Connectors
| SDI | 2x 3G-SDI |
| HDMI | 1x HDMI 2.0 |
| DVI | 4x SL-DVI |
Output & Connectivity
| Ethernet Output | 16x Gigabit Ethernet |
Physical Specifications
| Dimensions | 482.6 mm × 372.5 mm × 94.6 mm (19.0" × 14.7" × 3.7") |
| Net weight | 6.2 kg (13.7 lbs) |
| Packing box | 550.0 mm × 440.0 mm × 215.0 mm (21.7" × 17.3" × 8.5") |
Software
| NovaLCT 5.9.2 | |
| V-Can 3.8.0 | |
| Compatible Software | NovaLCT, V-Can |
Frequently Asked Questions
What size LED wall can the VX16s drive?
The VX16s can drive N/A pixels with 16 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the VX16s suitable for rental applications?
Absolutely. The VX16s is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the VX16s?
The VX16s is configured and controlled with NovaLCT, V-Can, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We keep over $2 million in inventory at our Titusville, Florida warehouse, and most orders ship same-day. Even if a product shows out of stock on the site, email us before you rule it out — we may have just received a batch we have not logged yet, have reserved units that freed up, or have more arriving within a day, and if not we can usually source it fast. We will check the real count and get right back to you.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the VX16s, contact Olympian LED today.
