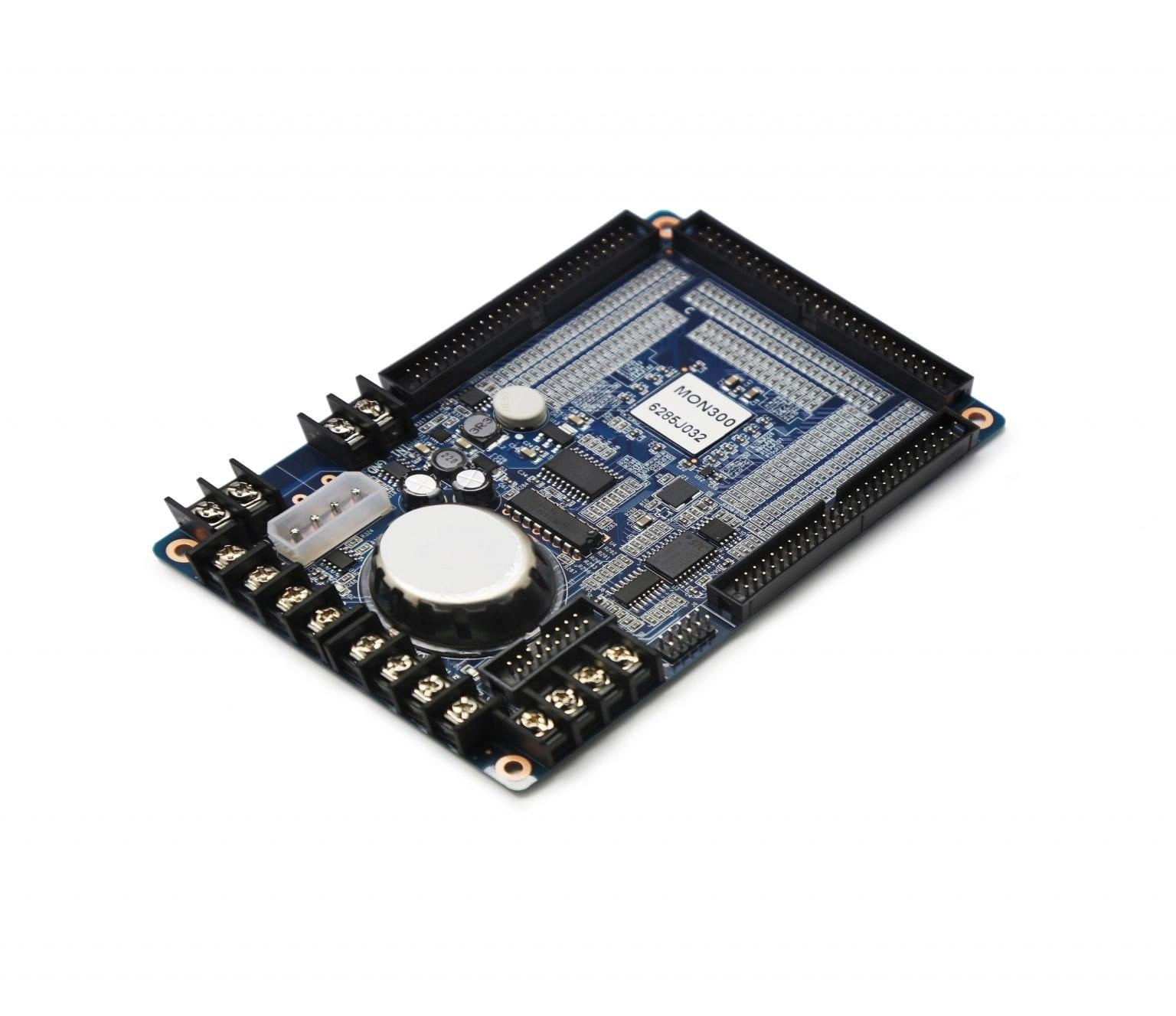

NovaStar MON300 Monitoring Card
A monitoring card designed for engineering projects and projects with high safety requirements. Works with the MRV320 and MRV560 receiving cards.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Technical Specifications
✨ Key Features
- Open circuit detection for each LED (supporting driver IC and hub board required)
- Flat cable fault detection (supporting hub board required)
- Cabinet temperature detection (no extra module required)
- Cabinet humidity detection (no extra module required)
- Voltage detection of 8 power supplies
- Speed detection of 4 fans
- Cabinet door open/close status detection
- Smoke sensor support
- Rated Voltage: DC 5.0V
- Rated Current: 0.15A
- Rated Power Consumption: 0.75W
- Operating Temperature: –20°C to 60°C
- Operating Humidity: 0% RH to 95% RH, non-condensing
- Smoke Sensor Operating Temperature: –20°C to 60°C
- Smoke Sensor Operating Humidity: 0% RH to 60% RH, non-condensing
- Dimensions: 144.0 mm × 91.5 mm × 22.5 mm
- Net Weight: 115.7g
- Humidity Monitoring Range: 1% RH to 99% RH
- Voltage Monitoring Range: 0V to 12V
🏅 Certifications
Frequently Asked Questions
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We keep over $2 million in inventory at our Titusville, Florida warehouse, and most orders ship same-day. Even if a product shows out of stock on the site, email us before you rule it out — we may have just received a batch we have not logged yet, have reserved units that freed up, or have more arriving within a day, and if not we can usually source it fast. We will check the real count and get right back to you.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
