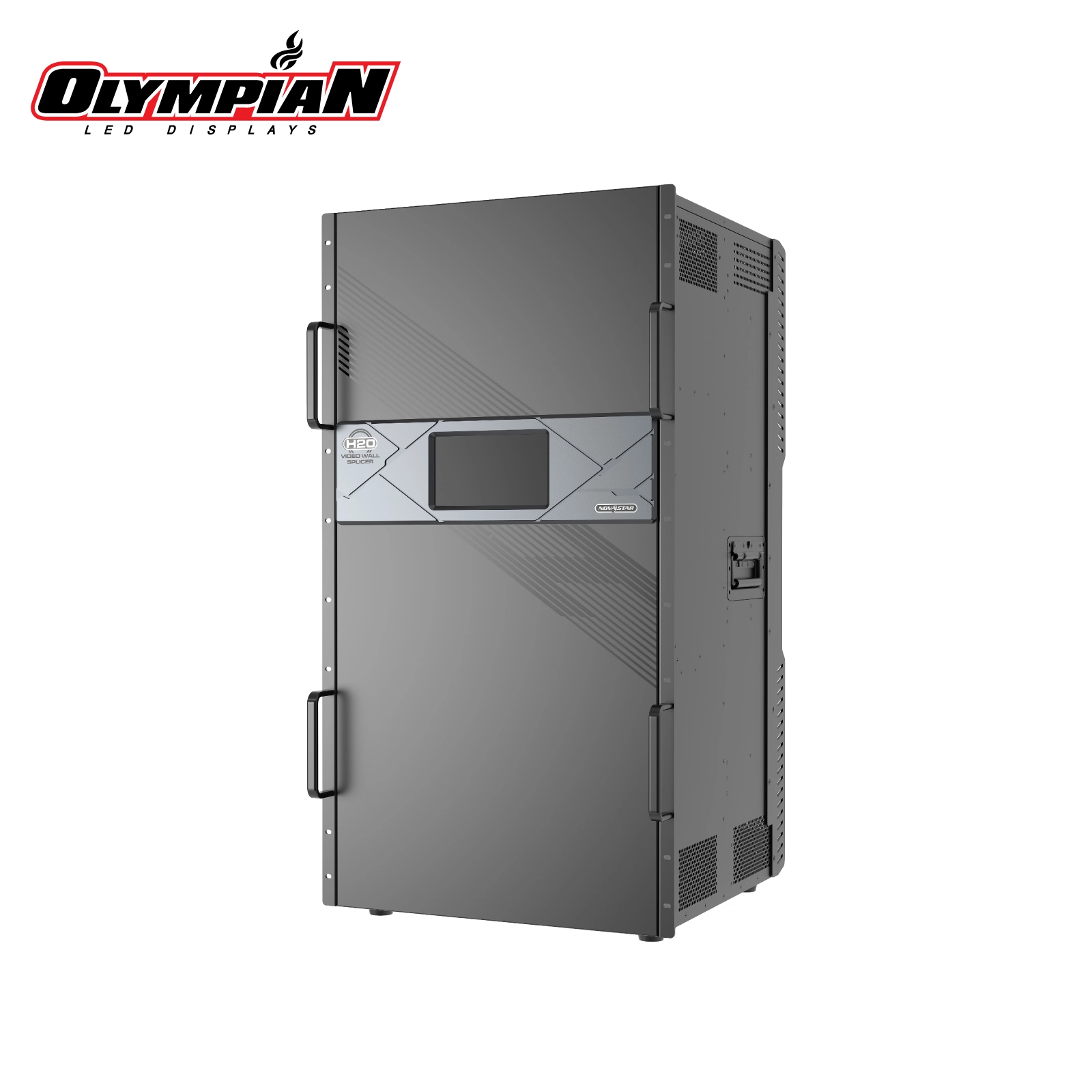

NovaStar H20

$12,281
✓ In Stock - Ships Same Day (if ordered before 3PM EST)
📄 Specifications V1.7.0
🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

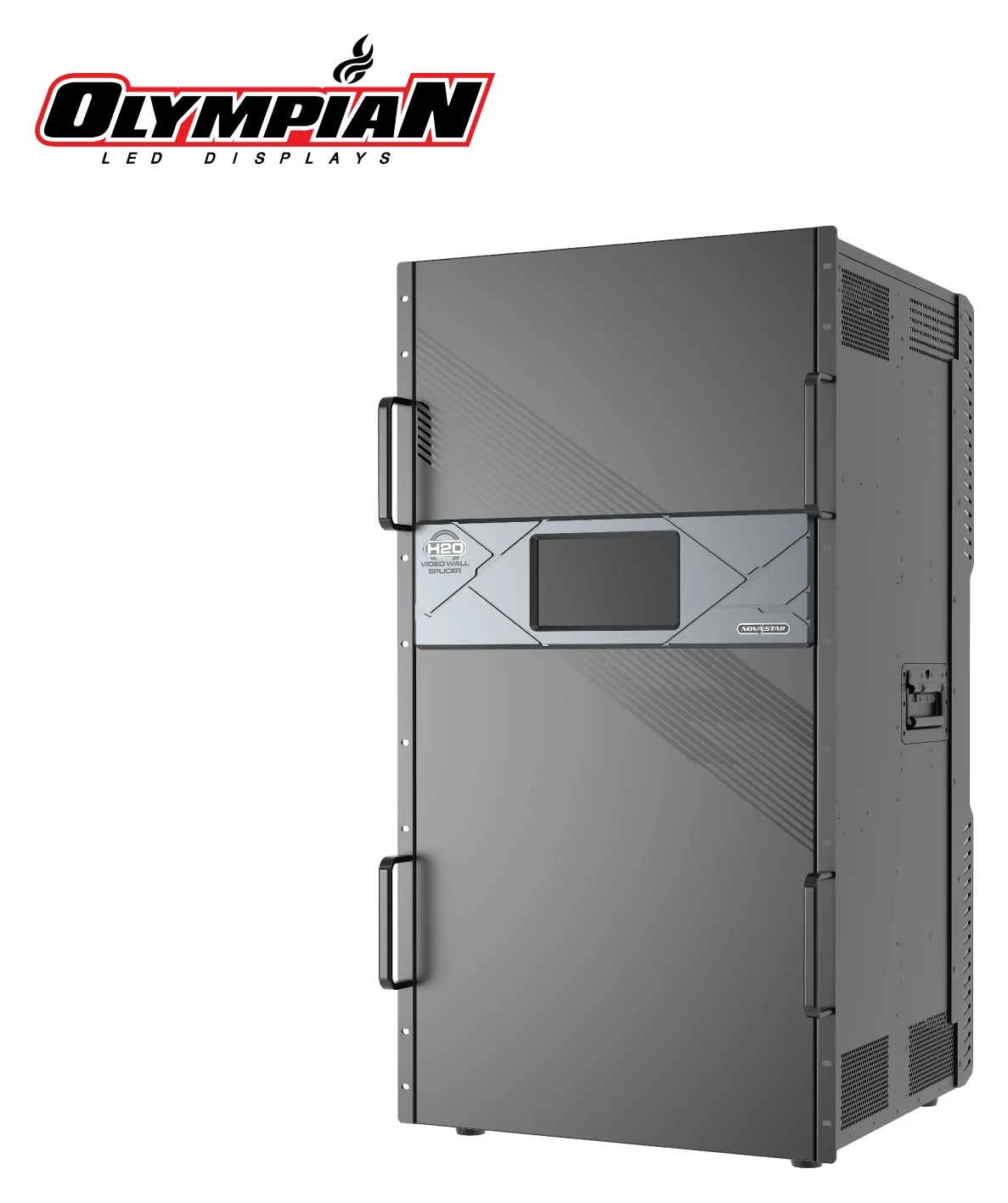

H20 – H Series
H20 – H Series
Get 10% off your first online order

Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

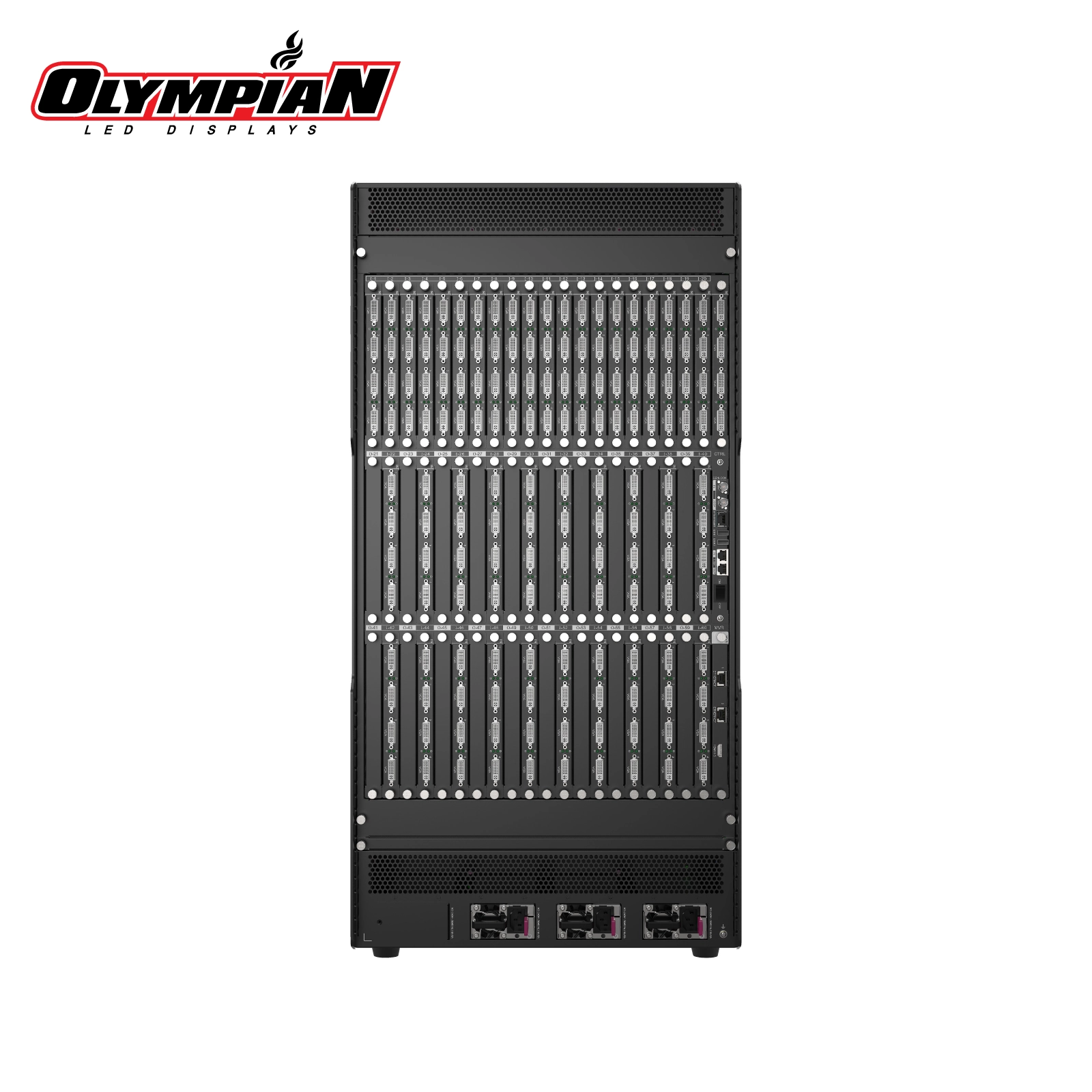

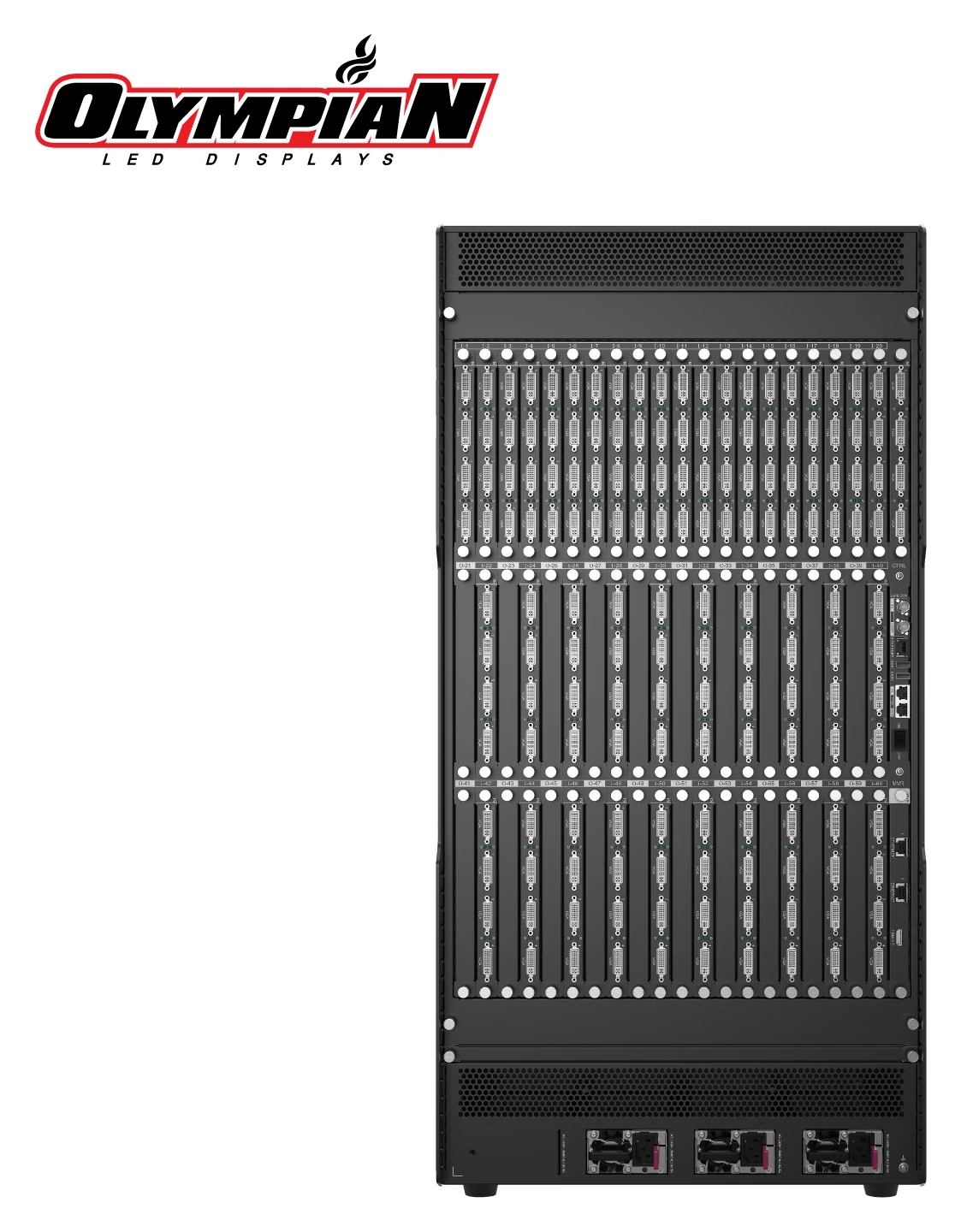

⚙️ Modular Configuration

The H20 features a modular design - configure it with your choice of input and output cards

📥 Input Slots: 40
📤 Output Slots: 20
🎬 Layers per Output: 16
⚡ Redundant Power:Yes

📊 Max Loading Capacity by Output Card (20 slots)

Output Card Configuration Per Card Total (20 slots)
16xRJ45+2xFiber 16× Gigabit Ethernet + 2× 10G Fiber (8 ports/fiber, redundant backup of the 16 RJ45) 10.4 million pixels 208 million pixels
20xRJ45 20× Gigabit Ethernet 13 million pixels 260 million pixels
4xFiber 4× 10G Fiber — 8 ports per CVT10 (4 × 8 = 32 ports) 20.8 million pixels 416 million pixels
4xFiber Enhanced 4 active + 4 redundant 10G Fiber — 10 ports per CVT10 (40 loading; up to 8 CVT10 / 80 ports wired) 26 million pixels 520 million pixels

Total = per-card capacity × 20 output slots. Each Gigabit (RJ45) port loads ~0.65M pixels. Fiber cards feed CVT10 converters (one fiber → 10 RJ45 ports): the standard 4× Fiber card drives 8 ports per fiber (4 × 8 = 32 ports → 20.8M), while the Enhanced card drives 10 ports per fiber and adds redundancy — 4 active + 4 backup fibers, so up to 8 CVT10s (80 ports) can be wired but only 40 load (26M). The 16×RJ45+2×Fiber card uses its 2 fibers (8 ports each) as a redundant backup of its 16 RJ45 outputs.

Available Input Cards (20)

H_1x DP1.2 Input Card
1x DisplayPort 1.2
$1,127
H_2x DP1.1 Input Card
2x DisplayPort 1.1
$845
H_2xDP1.2 Input Card
2x DisplayPort 1.2
$959
H_1x HDMI2.0 Input Card
1x HDMI 2.0
$1,127
H_2x HDMI2.0 Input Card
2x HDMI 2.0
$1,644
H_4x HDMI Input Card
4x HDMI 1.3 (or 2x HDMI 1.4)
$845
H_1xHDMI2.0+1xDP1.2 Input Card
1x HDMI 2.0 + 1x DisplayPort 1.2
$1,798
H_2xHDMI2.0+2xDP1.2 Input Card
2x HDMI 2.0 + 2x DisplayPort 1.2
$2,320
H_1xHDMI2.1+1xDP1.4 (8K@30Hz) Input Card
1x HDMI 2.1 + 1x DisplayPort 1.4 (8K@30Hz)
$3,184
H_1x 12G SDI Input Card
1x 12G-SDI
$1,825
H_4x 3G SDI Input Card
4x 3G-SDI
$1,644
H_4x DVI Input Card
4x DVI
$845
H_4x HDBaseT Input Card
4x HDBaseT
$1,759
H_1x NDI Input Card
Full NDI input over Gigabit IP
$1,399
H_4x Fiber Input Card
4x 10G Fiber (OPT)
$2,999
H_1xST2110 Input Card
1x SMPTE ST 2110 (25G Fiber)
$3,999
H_2x IP Input Card
2x IP Streams (RTSP, GB28181, ONVIF)
$1,479
H_STD I/O Card
Standard I/O Control Card
$649
H_2xAudio input +2xAudio Output Card
2x Audio Input + 2x Audio Output
$854
H_2xRJ45+1xHDMI1.3 Preview Card (MVR)
2x RJ45 + 1x HDMI 1.3 Multi-Viewer Preview
$1,233

Available Output Cards (7)

H_16xRJ45+2xFiber Output Card
16x Gigabit Ethernet + 2x 10G Fiber
$1,644
H_20xRJ45 Output Card
20x Gigabit Ethernet
$1,703
H_4x Fiber Output Card
4x 10G Fiber
$3,218
H_4xFiber Sending Card (Enhanced)
8x 10G Fiber (4 primary + 4 backup)
$3,999
H_1 HDMI2.0 Output Card
1x HDMI 2.0
$1,127
H_4x HDMI Output Card
4x HDMI
$915
H_4 HDBaseT Output Card
4x HDBaseT
$1,759

Technical Specifications

Video Processing

Layers320
Maximum PixelsUp to 520 million pixels
📊 HDMI 2.1 Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 8192×4320@30Hz
RGB 4:4:4 8bit 30
YCbCr 4:4:4 8bit 30
YCbCr 4:2:2 8bit 30
RGB 4:4:4 10bit 30
YCbCr 4:4:4 10bit 30
YCbCr 4:2:2 10bit 30
📊 HDMI 2.0 Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 4096×2160@60Hz
RGB 4:4:4 8bit 60
YCbCr 4:4:4 8bit 60
YCbCr 4:2:2 8bit 60
— 4096×2160@30Hz
RGB 4:4:4 10bit 30
YCbCr 4:4:4 10bit 30
— 4096×2160@60Hz
YCbCr 4:2:2 10bit 60
📊 DP 1.4 Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 7680×4320@30Hz
RGB 4:4:4 8bit 30
YCbCr 4:4:4 8bit 30
— 8192×4320@30Hz
YCbCr 4:2:2 8bit 30
YCbCr 4:2:2 10bit 30
— 7680×4320@24Hz
RGB 4:4:4 10bit 24
YCbCr 4:4:4 10bit 24
📊 DP 1.2 Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 4096×2160@60Hz
RGB 4:4:4 8bit 60
YCbCr 4:4:4 8bit 60
YCbCr 4:2:2 8bit 60
— 4096×2160@30Hz
RGB 4:4:4 10bit 30
YCbCr 4:4:4 10bit 30
— 4096×2160@60Hz
YCbCr 4:2:2 10bit 60
📊 HDMI 1.4 / DP 1.1 Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 4096×1080@60Hz
RGB 4:4:4 8bit 60
YCbCr 4:4:4 8bit 60
YCbCr 4:2:2 8bit 60
— 2048×1152@60Hz
RGB 4:4:4 10bit 60
YCbCr 4:4:4 10bit 60
— 4096×1080@60Hz
YCbCr 4:2:2 10bit 60
📊 HDMI 1.3 Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 2048×1152@60Hz
RGB 4:4:4 8bit 60
YCbCr 4:4:4 8bit 60
YCbCr 4:2:2 8bit 60
RGB 4:4:4 10bit 60
YCbCr 4:4:4 10bit 60
YCbCr 4:2:2 10bit 60
📊 NDI Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 4096×2160@60Hz
YCbCr 4:4:4 8bit 60
YCbCr 4:4:0 8bit 60
📊 ST 2110 (25G OPT port) Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 4096×2160@60Hz
RGB 4:4:4 8bit 60
YCbCr 4:4:4 8bit 60
YCbCr 4:2:2 8bit 60
RGB 4:4:4 10bit 60
YCbCr 4:4:4 10bit 60
YCbCr 4:2:2 10bit 60
📊 12G-SDI Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 4096×2160@60Hz
YCbCr 4:2:2 8bit/10bit/12bit 60
📊 3G-SDI Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 1920×1080@60Hz
YCbCr 4:2:2 8bit/10bit 60
📊 DL-DVI Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 3840×1080@60Hz
RGB 4:4:4 8bit 60
📊 SL-DVI Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 2048×1152@60Hz
RGB 4:4:4 8bit 60
📊 VGA Resolution & Format Capabilities
Resolution Color Space Sampling Bit Depth Supported Frame Rates (Hz)
— 1920×1080@60Hz
RGB 4:4:4 8bit 60

Custom Resolution Calculator

Enter any resolution to calculate the maximum achievable frame rate for each input type. Bandwidth limits from NovaStar DCS (Device Configuration Schema).

Presets:

Physical Specifications

Packing box775 mm × 675 mm × 1065 mm (30.5" × 26.6" × 41.9")

✨ Key Features

  • HDR
  • 10G Fiber
  • 4K

Software

Firmware 2.0.0.5

H Series Comparison

Compare models in the H Series to find your perfect fit:

Compare Model Ports Layers Loading Capacity (60Hz) Price View
H2 Lower Tier - 32 layers Up to 52 million pixels $669 View
H5 Lower Tier - 48 layers Up to 78 million pixels $1,468 View
H9 Lower Tier - 80 layers Up to 130 million pixels $2,184 View
H15 Lower Tier - 160 layers Up to 260 million pixels $6,438 View
H20 You're Here - 320 layers Up to 520 million pixels $12,281 View

Tip: Select products above to compare detailed specifications side-by-side

View All H Series Use Processor Calculator
