NovaStar XC190

The XC190 is a high-end small receiving card developed by NovaStar.

Contact for Pricing
✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time
Request a Quote
📄 Specifications V1.0.2
  • 🛡️ 3-Year NovaStar Warranty
  • 📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.
NovaStar XC190 – Receiving Cards
Get 10% off your first online order

Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

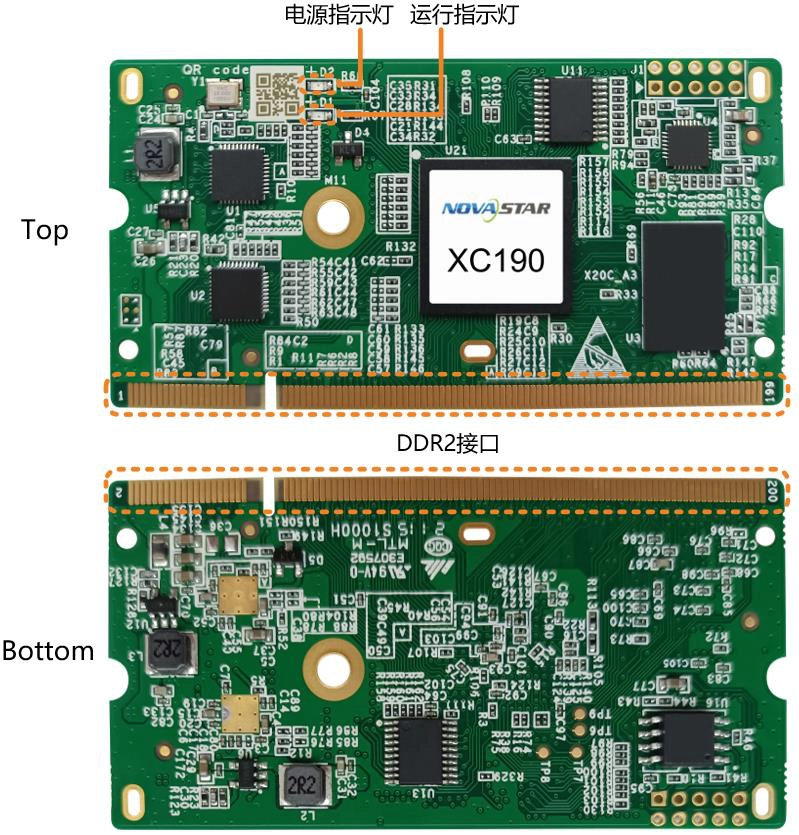

The XC190 is a high-end small receiving card developed by NovaStar. A single XC190 supports resolutions up to 512×512@60Hz. Supporting various functions such as Image Booster, pixel level brightness and chroma calibration, quick adjustment of dark or bright lines, low latency, 3D, individual gamma adjustment for RGB, image rotation in 90° increments, image rotation at any angle, and HDR, the XC190 can significantly improve the display effect and user experience. The XC190 comes with DDR2 connectors for communication, resulting in good compatibility. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data), and is suitable for various on-site setups.

Key Highlights

Pixel-level brightness & chroma calibration

Key Features

HDR
Tone-maps HDR sources onto the wall's own brightness range instead of clipping the highlights.
3D
Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.
Low Latency
Shortens the processing pipeline for live camera-to-wall work. Mutually exclusive with some scaling and effect features.
Backup
Redundancy so one failure does not black the wall - a backup device, backup input source, backup Ethernet port, OPT-to-Ethernet failover, or dual receiving cards, depending on the model.
Color Calibration
Per-pixel correction of the brightness and colour differences between modules and cabinets, so a wall built from mixed batches reads as one panel.
Image Booster
Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Physical Specifications

Dimensions67.6 mm × 35.0 mm × 5.2 mm (2.7" × 1.4" × 0.2")
Net weight7.2 g

Software

NovaLCT 5.9.1
Compatible SoftwareNovaLCT

Frequently Asked Questions

How do I configure the XC190 for my LED modules?

The XC190 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.

What controllers work with the XC190?

The XC190 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
