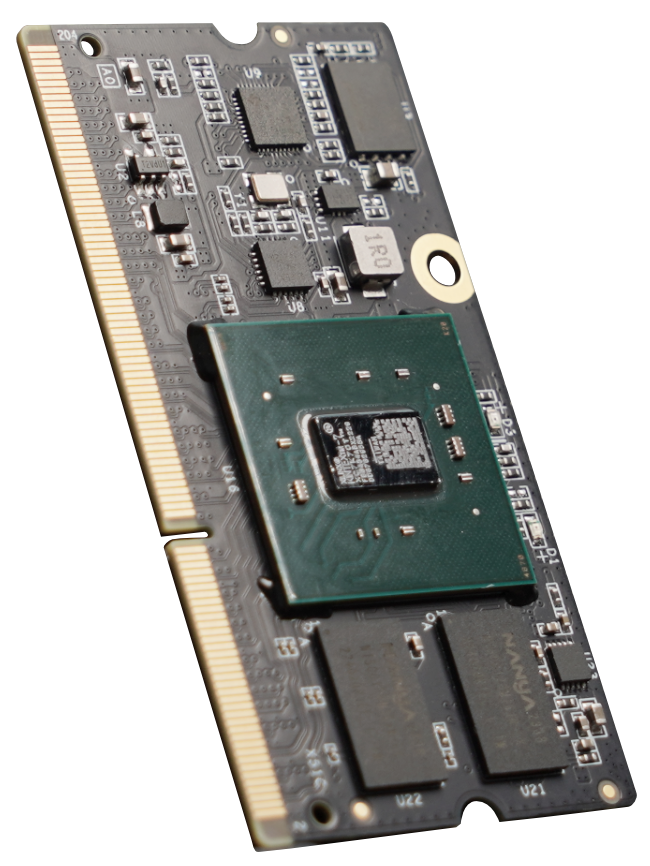

NovaStar XA50 Pro

Name: NovaStar XA50 Pro
Brand: NovaStar
SKU: XA50 Pro
Availability: InStock

For 8bit and 10bit video sources and PWM driver ICs, a single XA50 Pro supports resolutions up to 1024×512@60Hz.

Contact for Pricing

✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time

Request a Quote

📄 Specifications V1.0.3

🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

For 8bit and 10bit video sources and PWM driver ICs, a single XA50 Pro supports resolutions up to 1024×512@60Hz. For 12bit video sources, a single XA50 Pro supports resolutions up to 620×512@60Hz. This receiving card supports the exclusive Adaptive Thermal Compensation, Dynamic Booster, Full-Grayscale Calibration, and Image Booster t echnologies of NovaStar. With other various functions, such as Multi-Mode, Brightness Overdrive, Seam Correction with Mobile Phones, Frame Rate Adaptive 3.0, Shutter Fit, HDR, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Brigh t Lines, Low Latency, 3D, and 90° Image Rotation, this receiving card can greatly improve the brightness, grayscale and color performance from every aspect, XA50 Pro

Key Highlights

Pixel-level brightness & chroma calibration

Key Features

HDR

Tone-maps HDR sources onto the wall's own brightness range instead of clipping the highlights.

Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.

Low Latency

Shortens the processing pipeline for live camera-to-wall work. Mutually exclusive with some scaling and effect features.

Backup

Redundancy so one failure does not black the wall - a backup device, backup input source, backup Ethernet port, OPT-to-Ethernet failover, or dual receiving cards, depending on the model.

Color Calibration

Per-pixel correction of the brightness and colour differences between modules and cabinets, so a wall built from mixed batches reads as one panel.

Shutter Fit

Full-Grayscale Calibration

Mapping 1.1

Image Booster

Dynamic Booster

Thermal Compensation

Grayscale Calibration

Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Physical Specifications

Dimensions	67.6 mm × 35.0 mm × 4.3 mm (2.7" × 1.4" × 0.2")
Net weight	10.4 g

Software

NovaLCT 5.9.1
Compatible Software	NovaLCT

Frequently Asked Questions

How do I configure the XA50 Pro for my LED modules?

The XA50 Pro is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.

What controllers work with the XA50 Pro?

The XA50 Pro works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
