NovaStar VX400S LED Display Controller (Discontinued)

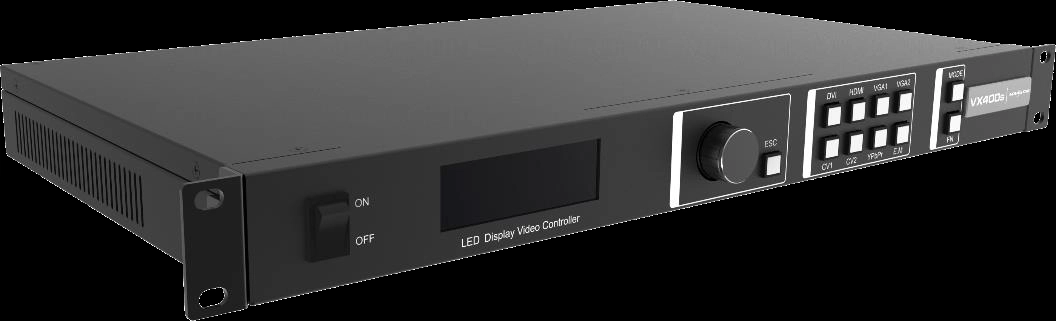

The VX400S was a 1U rack synchronous LED display controller on the Nova G4 engine, loading up to 2.3 million pixels over 4 Gigabit Ethernet ports. Known for its broad legacy input set (HDMI, DVI, 3G-SDI, VGA, CVBS, YPbPr) and Touch Track knob configuration, it served fixed-install walls for years. NovaStar has discontinued the VX400S; the VX400 Pro is the current model in this class.
The VX400S is discontinued. Its modern replacement is the VX400 Pro — same 4-port class with 2.6 million pixels, HDMI/DVI/3G-SDI with loops, fiber, and current firmware support.
Technical Specifications
Video Processing
| Layers | 1 PIP |
| Maximum Pixels | 2.3 million pixels |
Output & Connectivity
| Ethernet Output | 4x Gigabit Ethernet |
✨ Key Features
- Loading capacity: 2.3 million pixels
- 4x Gigabit Ethernet outputs (port 1 carries audio to multifunction card)
- Inputs: 1x HDMI 1.3, 1x DVI, 1x 3G-SDI, 2x VGA, 2x CVBS, 1x YPbPr
- Loop/monitor outputs: SDI loop, DVI loop, VGA + DVI monitor out
- SDI de-interlacing (480i/576i/720p/1080i/p)
- Nova G4 engine, 10-bit/8-bit input
- 1 PIP with adjustable position and size

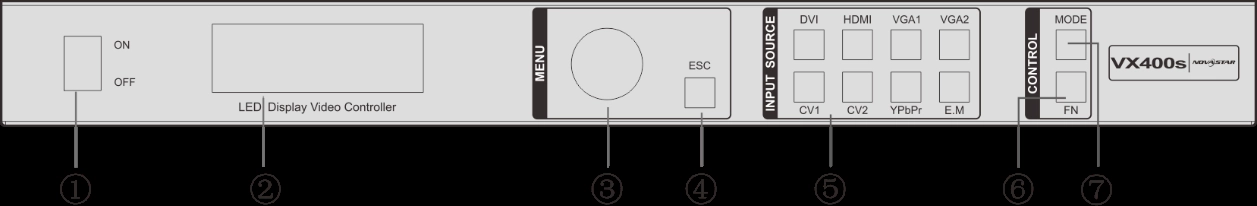

- Touch Track one-knob configuration — no PC required
- 10 user presets, UART cascading, primary/backup redundancy
- 1U rack form factor (482.5 x 273.8 x 44.7 mm, 35 W)
Frequently Asked Questions
What size LED wall can the VX400S drive?
The VX400S can drive 2.3 million pixels with 4 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the VX400S suitable for rental applications?
Absolutely. The VX400S is designed for professional rental, staging, and touring applications where reliability is critical.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
