NovaStar TCC160

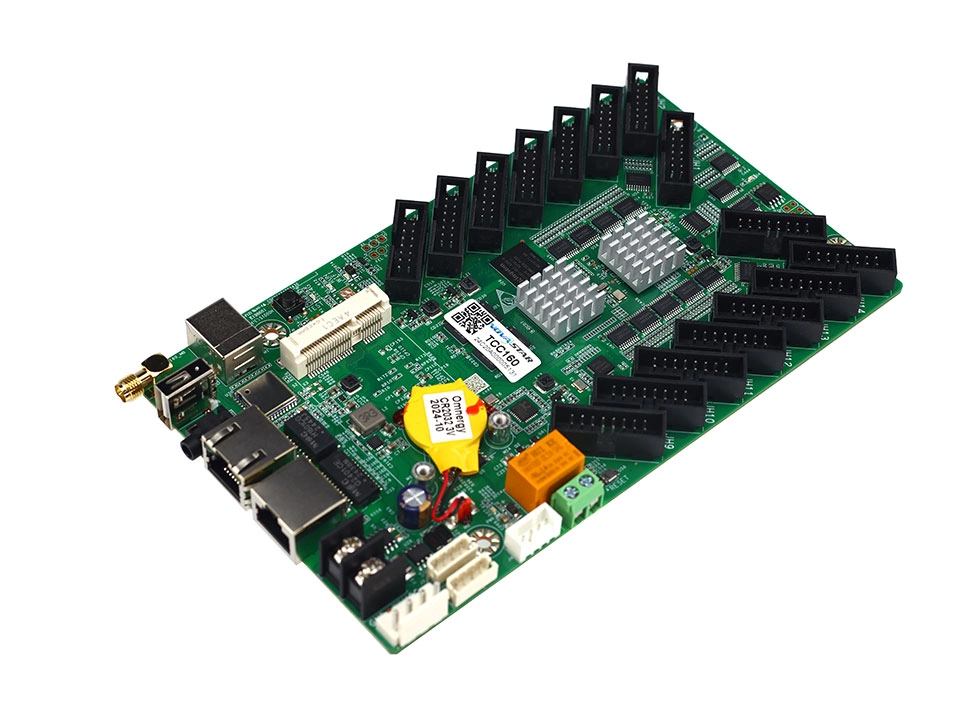

The TCC160 is an asynchronous full-color LED display control card from NovaStar. It integrates sending and receiving capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with cloud-based publishing and monitoring platforms, the TCC160 enables users to manage LED displays from an Internet-connected device anywhere, anytime. The TCC160 comes with 16 standard HUB75E connectors for communication and supports a comprehensive range of LED driver ICs including MBI, MY, ICN, SM, TLC, CFD, SCL, FM, and CS series. Maximum pixel capacity per TCC160 is 260,000 pixels (512×512 for PWM driver ICs, 512×384 for general driver ICs). When cascaded, up to 650,000 pixels are supported. The hardware and software designs take into full consideration the on-site setup, operation and maintenance, making setup easier, operation more stable, and maintenance more efficient.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Key Highlights
Key Features
Light Sensor
Low Latency
Backup
Technical Specifications
Video Processing
| Layers | 1 layer |
| Maximum Pixels | 260,000 pixels (650,000 cascaded) |
| Maximum Width | 2048 pixels (8192 pixels ultra-long screen) |
| Maximum Height | 2048 pixels |
Output & Connectivity
| Ethernet Output | 1x Gigabit Ethernet (for cascading receiving cards) |
| Ethernet Control | 1x Fast Ethernet (network/control) |
| Audio Output | 1x Stereo audio output (OMTP headphones) |
| Wi-Fi | 2.4 GHz Wi-Fi (AP and Sta modes) |
| USB Ports | 1x USB 2.0 Type-A (upgrade/play/storage expansion, supports 128GB FAT32), 1x USB Type-B (for controlling computer connection) |
| RS485 Ports | 2x RS485 (optical sensor/temperature and humidity sensor) |
Hardware
| Processor | Quad-core 1.4 GHz |
| RAM | 2 GB |
| Storage | 32 GB |
| Operating System | Android 10 |
| Video Decoding | Hardware decoding of 4K videos (H.265/H.264/MPEG-4/VP9) |
| Playback Capability | 1x 4K, 3x 1080p, 8x 720p, 16x 480p, or 20x 360p videos |
Physical Specifications
| Power Input | DC 5V-12V (Max 12W) |
| Dimensions | 180.9 mm × 102.3 mm × 19.4 mm (7.1" × 4.0" × 0.8") |
| Net weight | 149.6 g |
Features
Software
| NovaLCT 5.9.1 | |
| ViPlex Express 3.0.5.1501 | |
| Compatible Software | NovaLCT, ViPlex Express |
🔌 Supported IC Drivers
📌 Firmware V1.1.0.0
📌 Firmware V1.1.0.3
📌 Firmware V1.1.0.4
📌 Firmware V1.1.0.5
📌 Firmware V1.1.0.6
Frequently Asked Questions
What is the password for the wireless network?
For older Taurus devices, the default Wi-Fi password is "12345678". For newer devices, the default password is "SN2008@+" unless you have already changed it. If you are locked out, there is a factory reset button on the device that will restore the default password.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
