NovaStar T10 Plus

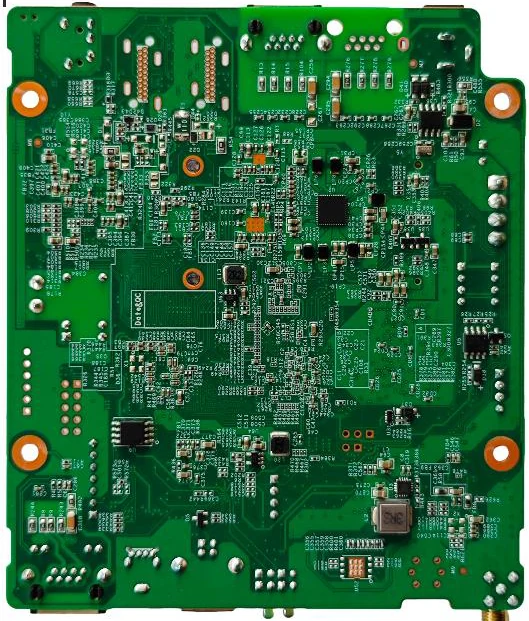

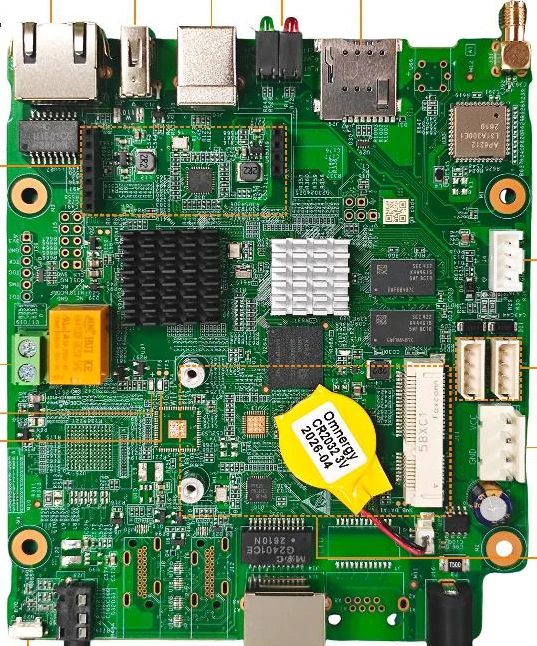

The T10 Plus is the open-frame (board-level) edition of NovaStar's Taurus multimedia player — the same integrated playback-and-sending electronics as the enclosed TB10 Plus, supplied as a bare control board for integration into custom LED cabinets and OEM enclosures. The TB10 Plus is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB10 Plus enables users to manage LED displays from an Internet-connected device anywhere, anytime. The TB10 Plus can play content from a USB drive, satisfying various playback demands. Multiple protection measures such as terminal authentication and player verification are taken to keep the playback secure.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Key Highlights
Key Features
Light Sensor
Technical Specifications
Video Processing
| Layers | 1 layer |
| Maximum Pixels | 0.65 million pixels |
| Maximum Width | 2048 pixels (8192 pixels ultra-long screen) |
| Maximum Height | 2048 pixels |
Input Connectors
| INPUTS | • 1x USB 2.0 (Type A) port • 1x USB (Type B) port |
Output & Connectivity
| Ethernet Output | 1x Gigabit Ethernet |
| Ethernet Control | 1x Fast Ethernet (network/control) |
| Audio Output | 1x Stereo audio output (3.5mm, 3-pole, 48kHz sample rate) |
| Wi-Fi | 2.4 GHz Wi-Fi (AP and Sta modes simultaneously) |
| USB Ports | 1x USB 2.0 Type-A (upgrade/play/storage expansion, supports up to 128GB FAT32/NTFS), 1x USB Type-B (for controlling computer connection) |
| Sensor Connectors | 1x Sensor connector (light sensor or temperature and humidity sensor) |
Hardware
| Processor | Allwinner T507 (Quad-core ARM Cortex-A53 @1.4GHz) |
| RAM | 2 GB |
| Storage | 32 GB |
| Operating System | Android 10 |
| Video Decoding | Hardware decoding of H.264/H.265 4K videos |
| Playback Capability | 1x 4K, 2x 1080p, 4x 720p, 4x 480p, or 20x 360p videos |
Physical Specifications
| Power Input | DC 5 V–12 V (max 15 W) |
| Dimensions | 136.5 mm × 110.5 mm × 18.0 mm (5.4" × 4.4" × 0.7") |
| Net weight | 114.1 g |
| IP Rating | IP20 |
Features
Working Modes
| • Asynchronous |
Software
| NovaLCT 5.9.1 | |
| ViPlex Express 3.0.5.1501 | |
| Compatible Software | NovaLCT, ViPlex Express |
Frequently Asked Questions
What is the password for the wireless network?
For older Taurus devices, the default Wi-Fi password is "12345678". For newer devices, the default password is "SN2008@+" unless you have already changed it. If you are locked out, there is a factory reset button on the device that will restore the default password.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the T10 Plus, contact Olympian LED today.
