NovaStar NovaPro UHD Jr

Name: NovaStar NovaPro UHD Jr
Brand: NovaStar
SKU: NovaPro UHD Jr
Price: 7049 USD
Availability: InStock

NRND

$7,049

✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time

Quantity:

📄 Specifications V1.5.1 📖 User Manual V1.5.1

🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

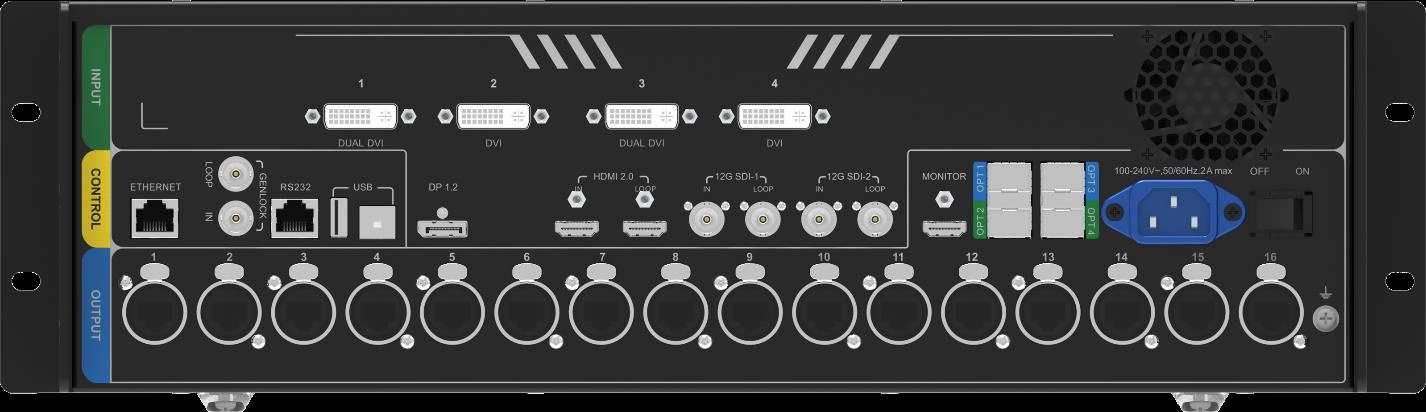

NovaStar NovaPro UHD Jr – Video Processors

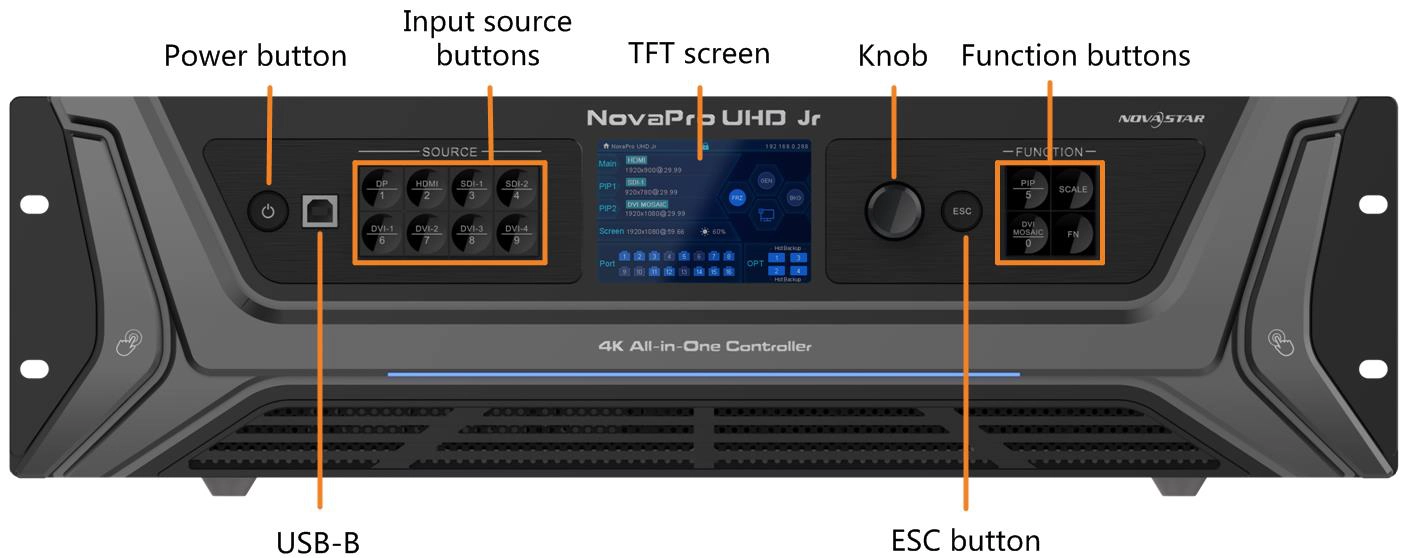

NovaStar NovaPro UHD Jr – Video Processors (view 2)

Ideal Applications

Perfect for a wide range of professional LED display scenarios

pitch LED displays.

Key Highlights

4K×2K@60Hz input support

10 user-defined presets

Key Features

HDR

Tone-maps HDR sources onto the wall's own brightness range instead of clipping the highlights.

Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.

Genlock

Locks output timing to an external sync reference (bi-level or tri-level) so the wall stays in step with cameras and other devices on the same clock.

10G Fiber

10G optical I/O - single-mode twin-core reaches 10 km, multi-mode 300 m. SFP modules are not fitted at the factory.

Free Layout

Cabinets can sit anywhere on the canvas rather than on a strict grid, and port capacity counts the cabinets you actually hang instead of the rectangle enclosing them.

Backup

Redundancy so one failure does not black the wall - a backup device, backup input source, backup Ethernet port, OPT-to-Ethernet failover, or dual receiving cards, depending on the model.

Mosaic

Splits one canvas across several devices so a wall larger than a single unit can drive still behaves as one screen.

12-bit

12-bit per-channel processing - finer gradients and more detail in the low greys than 8-bit, which is where LED banding usually shows.

Technical Specifications

Video Processing

Layers	3 layers
Max Input Resolution	4K×2K@60HZ

Input Connectors

DVI	4x DVI
SDI	2x 12G-SDI
DP	1x DP 1.2
HDMI	1x HDMI 2.0

Input Resolution Capabilities

DVI
Standard	Single-link mode: 4x DVI up to 2048×1152@60Hz each (DVI MOSAIC). Dual-link mode: DVI 1 & 3 up to 3840×1080@60Hz (DVI 2 & 4 unavailable)
Max. width	3840
Max. height	3840
Notes	HDCP 1.4 compliant. Supports input resolution settings. Does NOT support interlaced signal inputs. 4 DVI inputs can create DVI MOSAIC (single-link) or 2 DVI inputs can create DVI MOSAIC (dual-link).
12G-SDI
Standard	12G-SDI up to 4096×2160@60Hz
Max. width	8192
Max. height	8192
Notes	Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs. Supports interlaced signal inputs. Does NOT support input resolution and bit depth settings.
DP 1.2
Standard	DisplayPort 1.2 up to 3840×2160@60Hz
Max. width	8192
Max. height	8192
Notes	HDCP 1.3 compliant. Supports input resolution settings. Does NOT support interlaced signal inputs.
HDMI 2.0
Standard	HDMI 2.0 up to 3840×2160@60Hz
Max. width	8192
Max. height	8192
Notes	HDCP 2.2 compliant. Supports input resolution settings. Does NOT support interlaced signal inputs.

Output & Connectivity

Ethernet Output	16x Gigabit Ethernet See per-port loading capacity
Fiber Output	4x Fiber

Refresh	8-bit / port	8-bit / all 16 ports	10/12-bit / port	10/12-bit / all 16 ports
60 Hz	659,722	10,555,552	329,861	5,277,776
120 Hz	329,861	5,277,776	164,930	2,638,880
240 Hz	164,930	2,638,880	82,465	1,319,440

Physical Specifications

Dimensions	482.6 mm × 395.5 mm × 139.0 mm (19.0" × 15.6" × 5.5")
Net weight	6.3 kg (13.9 lbs)
Packing box	604mm × 524mm × 291mm (23.8" × 20.6" × 11.5")

Working Modes

• Video Controller

• Fiber Converter

Software

Firmware 1.9.2
NovaLCT 5.9.1
V-Can 3.8.0
Compatible Software	NovaLCT, V-Can

Frequently Asked Questions

What size LED wall can the NovaPro UHD Jr drive?

The NovaPro UHD Jr can drive N/A pixels with 16 Ethernet outputs, suitable for medium to large-scale LED displays.

Is the NovaPro UHD Jr suitable for rental applications?

Absolutely. The NovaPro UHD Jr is designed for professional rental, staging, and touring applications where reliability is critical.

What software controls the NovaPro UHD Jr?

The NovaPro UHD Jr is configured and controlled with NovaLCT, V-Can, a free download from Olympian LED.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.

Ready to Get Started?

For pricing, availability, or technical questions about the NovaPro UHD Jr, contact Olympian LED today.

📞 Call 321-747-3220 📧 Request a Quote
