NovaStar MSD600-1
Versatile sending card with 2.6 million pixel capacity and dual inputs (SL-DVI + HDMI) - flexible connectivity for mid-sized installations.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

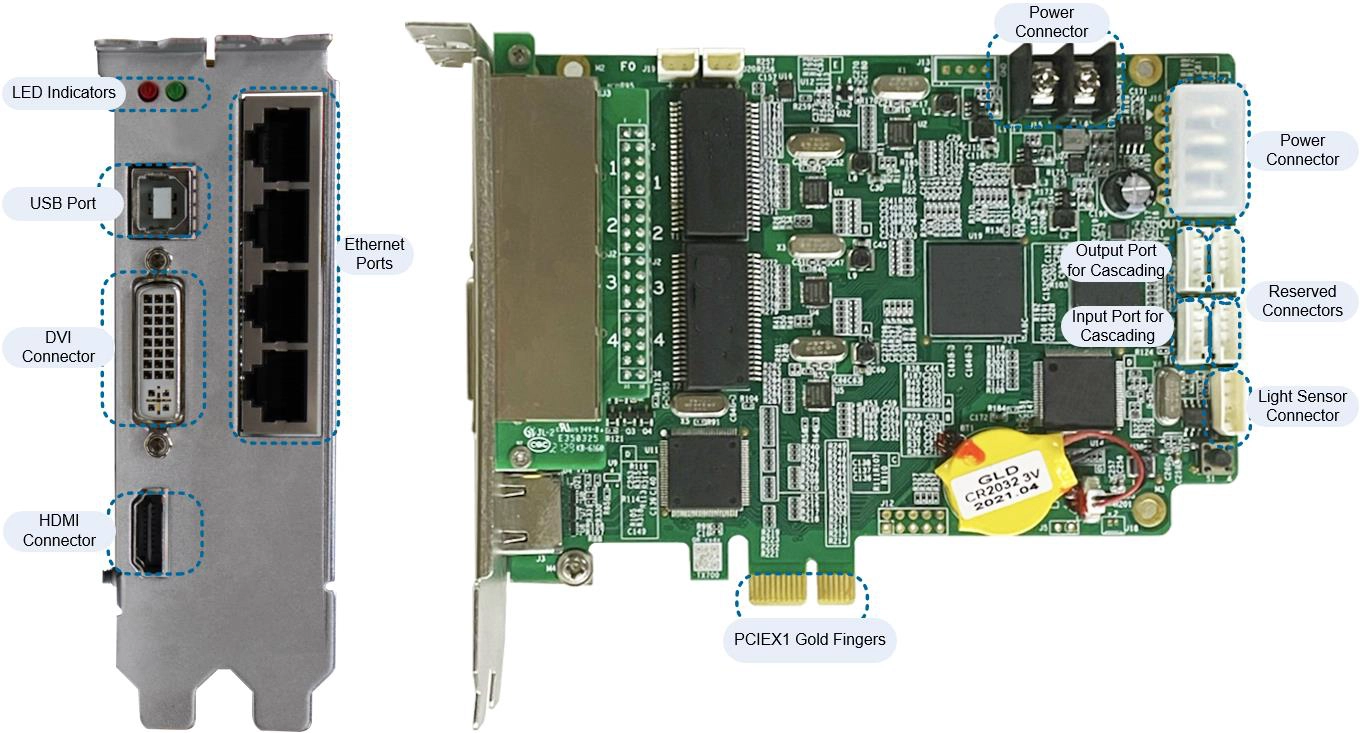

The MSD600-1 is NovaStar's mid-range sending card, offering enhanced capacity and input flexibility for growing installations. With 2.6 million pixel loading capacity and 4 Gigabit Ethernet outputs, it's ideal for medium-sized video walls in corporate environments, educational facilities, and broadcast studios. The dual input design (SL-DVI + HDMI 1.3) provides connectivity flexibility - use DVI for computer sources or HDMI for media players and other HDMI devices. Both inputs support resolutions up to 1920×1200@60Hz. Features include pixel-level brightness and chroma calibration for exceptional image quality, plus light sensor support for automatic brightness adjustment. Multiple units can be cascaded for expansion, and it's fully compatible with all NovaStar receiving cards. The perfect step-up when you need more capacity or input flexibility than the MSD300 series.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Maximum Pixels | 2.6 million pixels |
Input Connectors
| DVI | 1x SL-DVI |
| HDMI | 1x HDMI 1.3 |
Input Resolution Capabilities
| SL-DVI | |
| Standard | Single-link DVI up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 3840 |
| Notes | Custom resolutions supported. Does NOT support interlaced signal input. |
| HDMI 1.3 | |
| Standard | HDMI 1.3 up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 3840 |
| Notes | HDCP 1.4 compliant. Custom resolutions supported. Does NOT support interlaced signal input. |
Output & Connectivity
| Ethernet Output | 4x Gigabit Ethernet |
Physical Specifications
| Dimensions | 151.0 mm × 121.0 mm × 42.0 mm (5.9" × 4.8" × 1.7") |
| Net weight | 157.6 g |
| Packing box | 400 mm × 365 mm × 355 mm (15.7" × 14.4" × 14.0") |
Software
| Firmware V4.9.3.0 | |
| NovaLCT 5.9.2 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
What size LED wall can the MSD600-1 drive?
The MSD600-1 can drive 2.6 million pixels with 4 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the MSD600-1 suitable for rental applications?
Absolutely. The MSD600-1 is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the MSD600-1?
The MSD600-1 is configured and controlled with NovaLCT, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We keep over $2 million in inventory at our Titusville, Florida warehouse, and most orders ship same-day. Even if a product shows out of stock on the site, email us before you rule it out — we may have just received a batch we have not logged yet, have reserved units that freed up, or have more arriving within a day, and if not we can usually source it fast. We will check the real count and get right back to you.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
