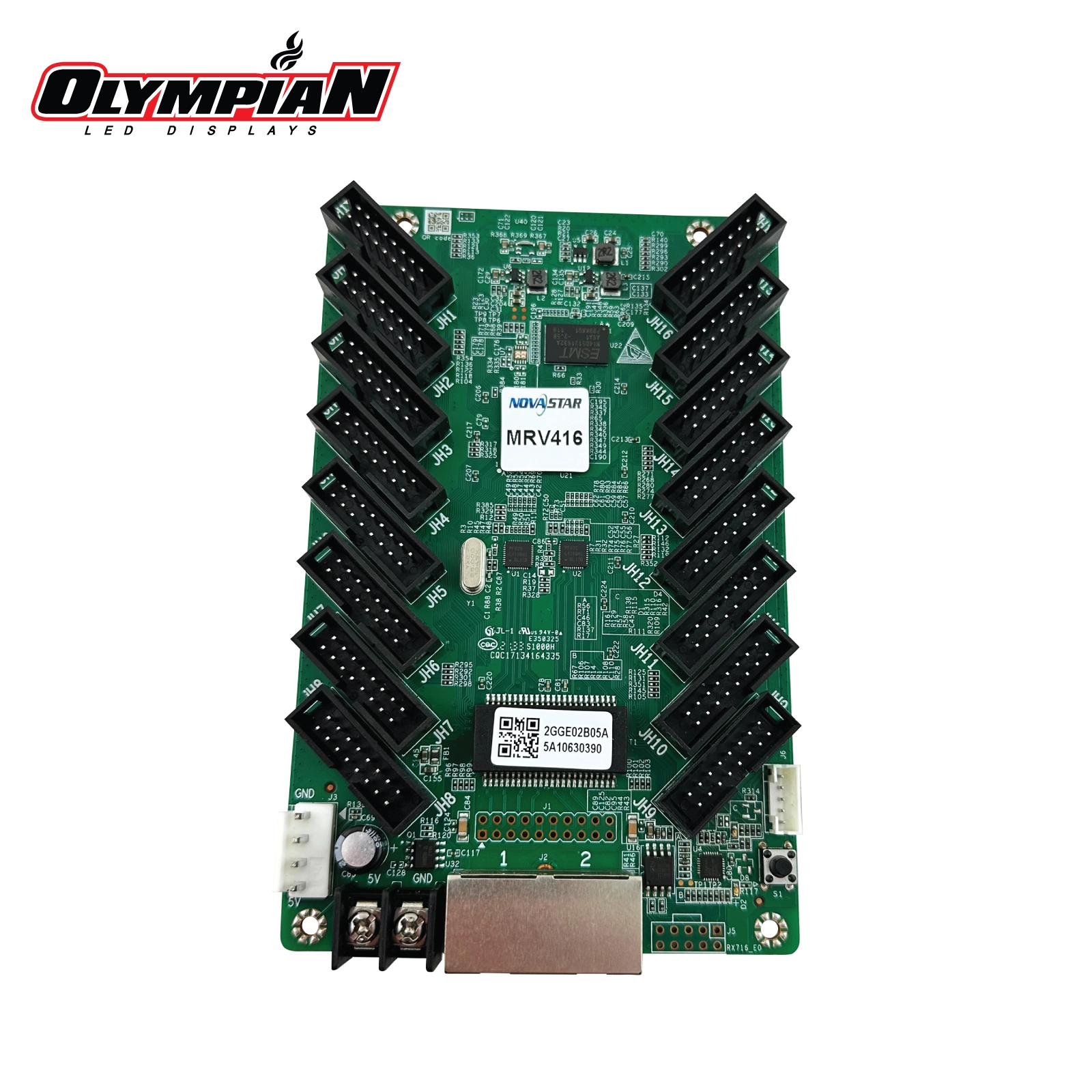

NovaStar MRV416
A single MRV416 supports resolutions up to 512×384@60Hz (NovaLCT V5.3.0 or later required).
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
A single MRV416 supports resolutions up to 512×384@60Hz (NovaLCT V5.3.0 or later required). Supporting various functions such as the brightness calibration, quick adjustment of dark or bright lines, 3D, and individual Gamma adjustment for RGB, the MRV416 can greatly improve the display effect and user experience. The MRV416 uses 16 standard HUB75E connectors for communication, resulting in high stability. It supports up to 32 groups of parallel RGB data and is suitable for various on-site setups.
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 145.7 mm × 91.5 mm × 18.4 mm (5.7" × 3.6" × 0.7") |
| Net weight | 101.9 g |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features — each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the MRV416 for my LED modules?
The MRV416 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the MRV416?
The MRV416 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the MRV416, contact Olympian LED today.
