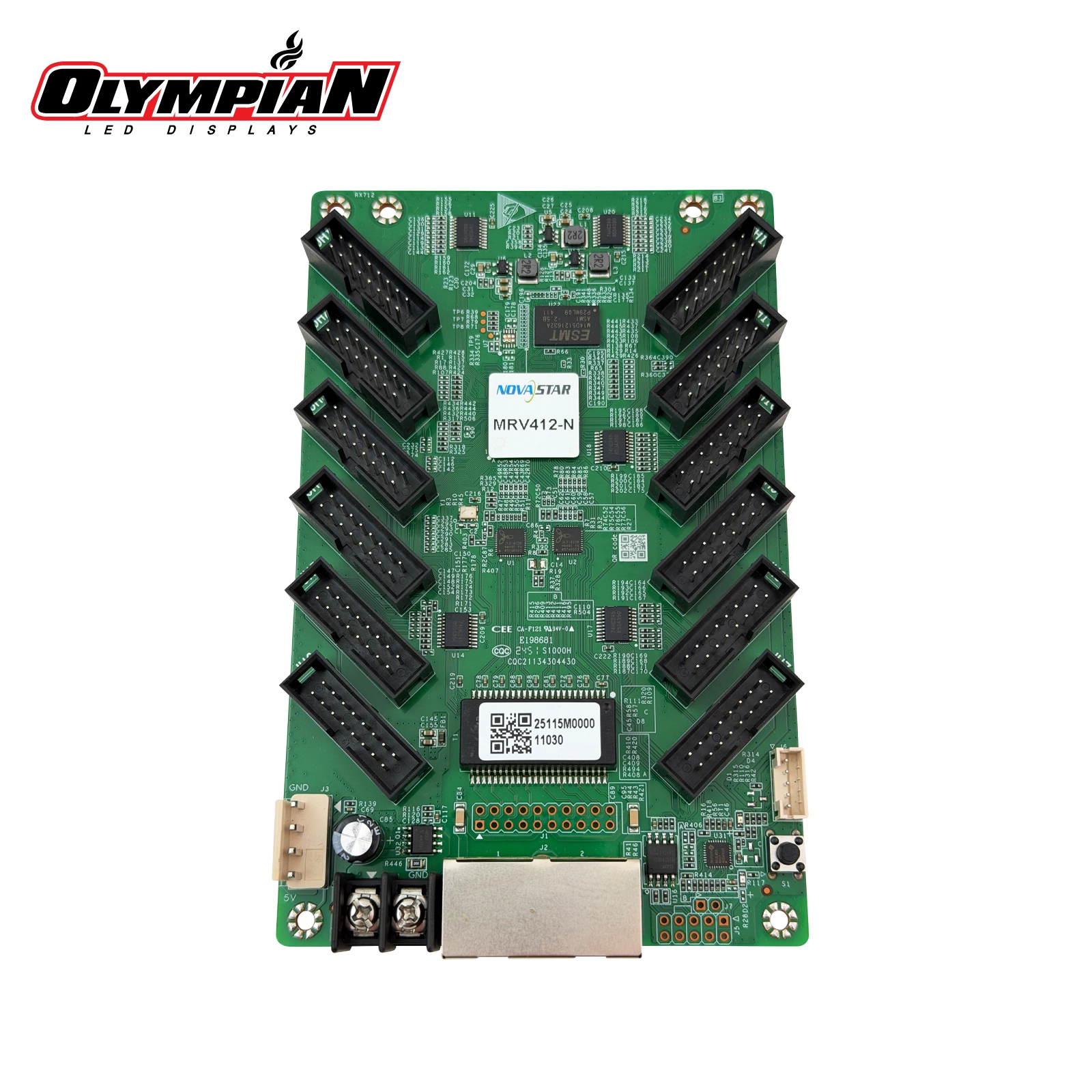

NovaStar MRV412-N
Supporting various functions such as Color Management, 18bit+, Pixel Level Brightness and Chroma C alibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90Β° Image Rotation, the MRV412-N can significantly improve the display effect and user experience.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Supporting various functions such as Color Management, 18bit+, Pixel Level Brightness and Chroma C alibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90Β° Image Rotation, the MRV412-N can significantly improve the display effect and user experience. The MRV412-N uses 12 standard HUB75E connectors for communication. It supports up to 24 groups of parallel RGB data and is suitable for various on-site setups. When working with 8bit video sources, the maximum load capacity per card is: ο¬ 512Γ512@60Hz (PWM driver IC) ο¬ 512Γ384@60H z (common driver IC)
Key Highlights
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 145.6 mm Γ 91.5 mm Γ 19.3 mm (5.7" Γ 3.6" Γ 0.8") |
| Net weight | 96.0 g |
| Packing box | 625.0 mm Γ 180.0 mm Γ 470.0 mm (24.6" Γ 7.1" Γ 18.5") |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features β each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the MRV412-N for my LED modules?
The MRV412-N is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the MRV412-N?
The MRV412-N works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the MRV412-N, contact Olympian LED today.
