NovaStar MRV366

The MRV366 is a general receiving card that supports up to 1/64 scan.

Contact for Pricing
✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time
Request a Quote
📄 Specifications V366
  • 🛡️ 3-Year NovaStar Warranty
  • 📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.
NovaStar MRV366 – Receiving Cards
Get 10% off your first online order

Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

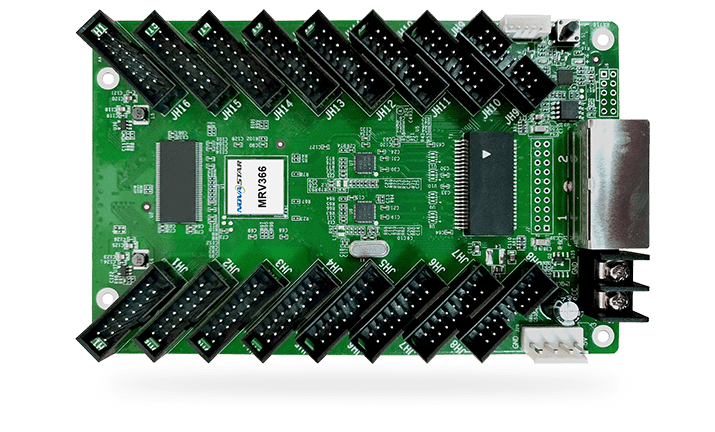

The MRV366 is a general receiving card that supports up to 1/64 scan. A single MRV366 loads up to 512×256 pixels (8bit) or 256×256 pixels (10bit/12bit). With various highlights such as 12-bit precision pixel level brightness and chroma calibration and individual Gamma adjustment for RGB, the MRV366 can greatly improve the display effect and user experience. The MRV366 uses standard HUB75 connectors for communication, resulting in high stability and reliability. It supports up to 32 sets of parallel RGB data.

Key Highlights

Pixel-level brightness & chroma calibration

Key Features

3D
Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.
Backup
Redundancy so one failure does not black the wall - a backup device, backup input source, backup Ethernet port, OPT-to-Ethernet failover, or dual receiving cards, depending on the model.
Color Calibration
Per-pixel correction of the brightness and colour differences between modules and cabinets, so a wall built from mixed batches reads as one panel.
Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Physical Specifications

Dimensions145.6 mm × 91.5 mm × 17.2 mm (5.7" × 3.6" × 0.7")
Net weight100.1 g

Software

NovaLCT 5.9.1
Compatible SoftwareNovaLCT

Related Guides

Long-form articles covering this product family:

Frequently Asked Questions

How do I configure the MRV366 for my LED modules?

The MRV366 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.

What controllers work with the MRV366?

The MRV366 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.

Ready to Get Started?

For pricing, availability, or technical questions about the MRV366, contact Olympian LED today.
