NovaStar MRV328

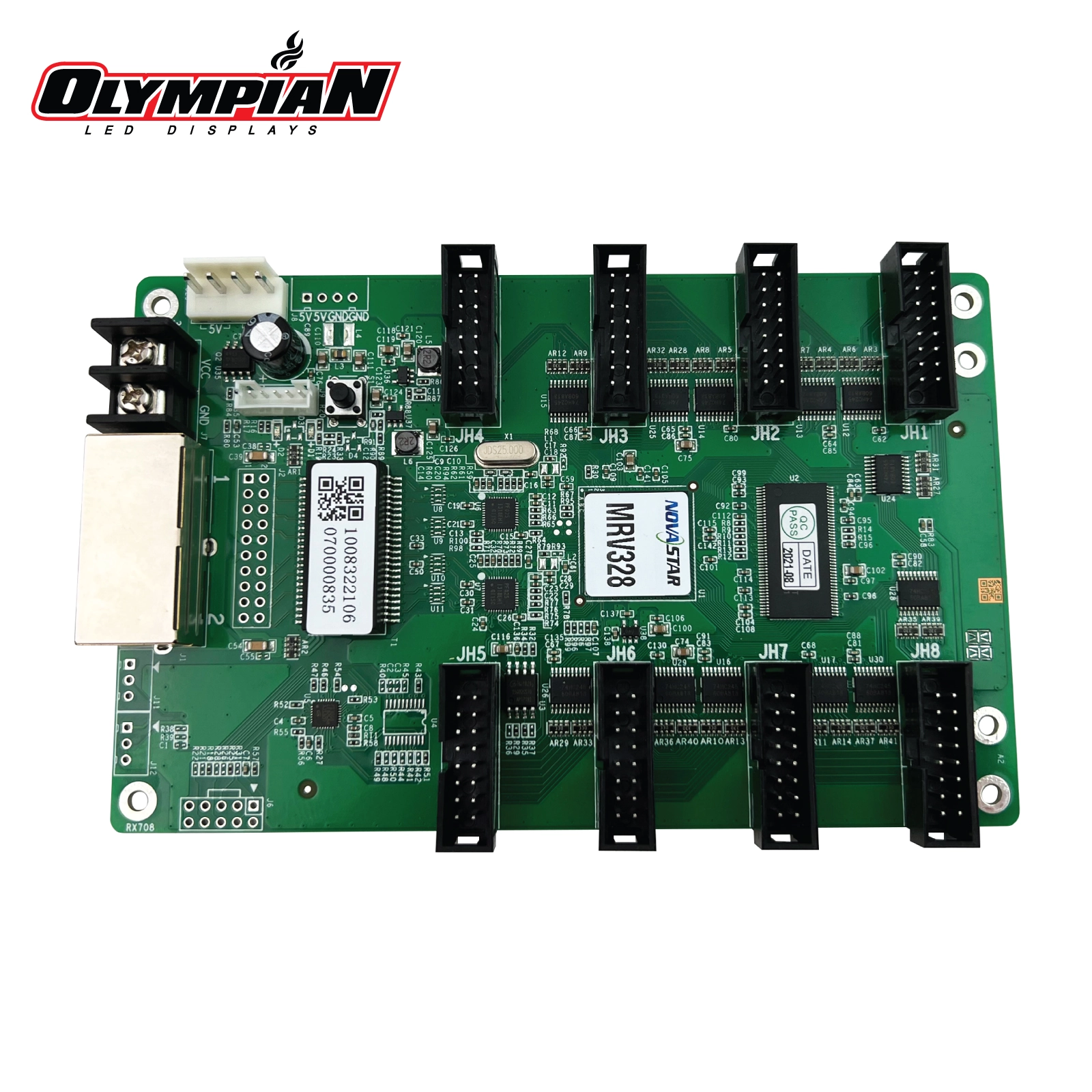

The MRV328 is a general receiving card that supports up to 1/32 scan.

Contact for Pricing
✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time
Request a Quote
📄 Specifications V328
  • 🛡️ 3-Year NovaStar Warranty
  • 📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.
NovaStar MRV328 – Receiving Cards
Get 10% off your first online order

Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

The MRV328 is a general receiving card that supports up to 1/32 scan. For PWM driver ICs, a single MRV328 supports resolutions up to 256×256@60Hz. Supporting various functions such as pixel level brightness and chroma calibration, quick adjustment of dark or bright lines, and 3D, the MRV328 can significantly improve the display effect and user experience. The MRV328 uses 8 standard HUB75E connectors for communication, resulting in high stability. It supports up to 16 groups of parallel RGB data.

Key Highlights

Pixel-level brightness & chroma calibration

Key Features

3D
Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.
Backup
Redundancy so one failure does not black the wall - a backup device, backup input source, backup Ethernet port, OPT-to-Ethernet failover, or dual receiving cards, depending on the model.
Color Calibration
Per-pixel correction of the brightness and colour differences between modules and cabinets, so a wall built from mixed batches reads as one panel.
Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Physical Specifications

Dimensions625.0 mm × 180.0 mm × 470.0 mm (24.6" × 7.1" × 18.5")
Net weight85.5 g

Software

NovaLCT 5.9.1
Compatible SoftwareNovaLCT

Frequently Asked Questions

How do I configure the MRV328 for my LED modules?

The MRV328 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.

What controllers work with the MRV328?

The MRV328 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
