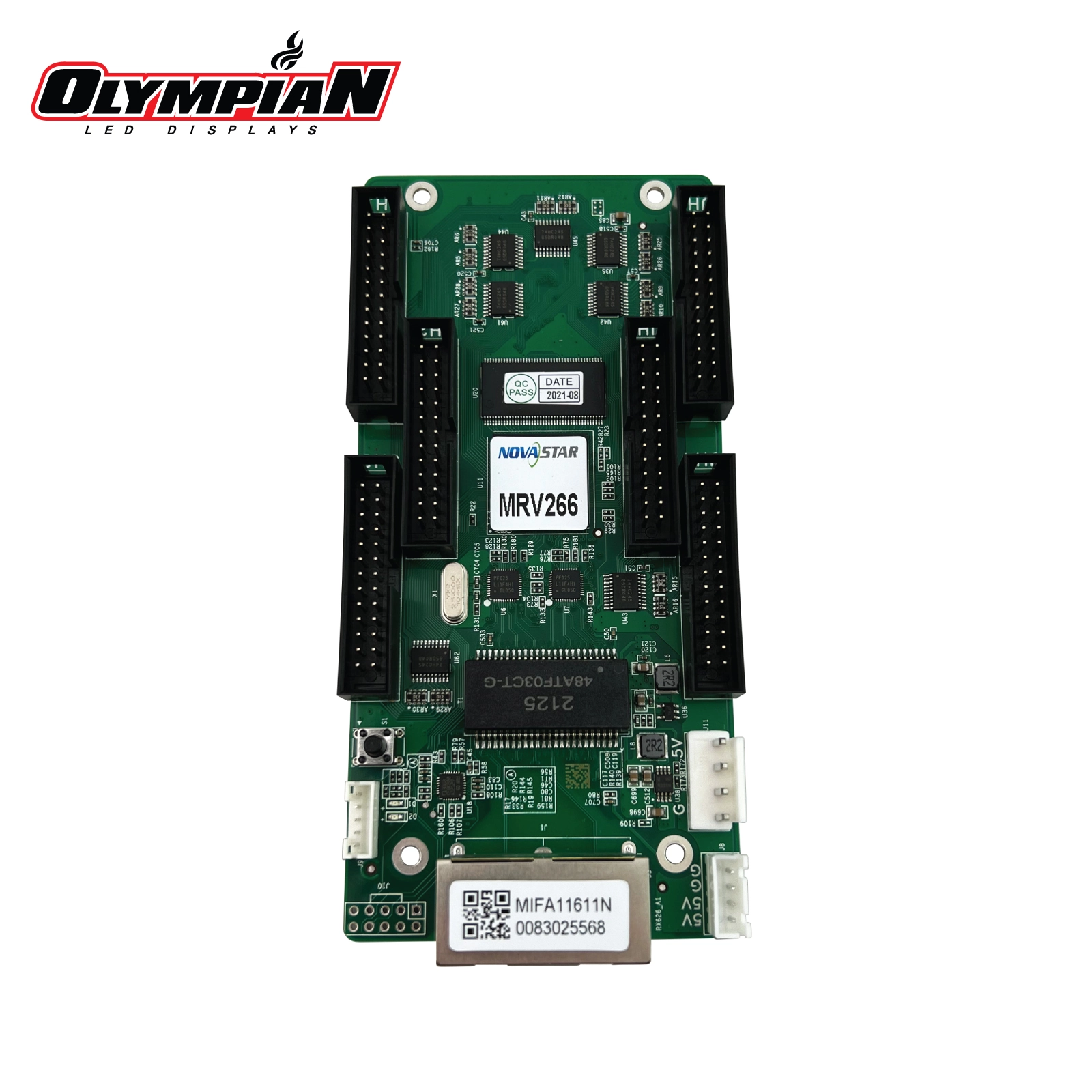

NovaStar MRV266
For PWM driver ICs, a single MRV266 supports resolutions up to 512×384@60Hz.
Our system shows zero right now, but that is often not the whole story — we may have just received a batch we have not logged yet, have reserved units that freed up, or have more arriving within a day, and if not we can usually source it fast. Email us and we will check the real count and come right back to you.
📧 Email Us — We May Have It Check Availability 📞 Call 321-747-3220
For PWM driver ICs, a single MRV266 supports resolutions up to 512×384@60Hz. Supporting various functions such as the brightness calibration, quick adjustment of dark or bright lines, 3D, and individual gamma adjustment for RGB, the MRV266 can significantly improve the display effect and user experience. The MRV266 uses 6 HUB320 (26 pins) connectors for communication, resulting in high stability. It supports up to 24 groups of parallel RGB data and is suitable for various on-site setups.
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 138.9 mm × 66.4 mm × 17.1 mm (5.5" × 2.6" × 0.7") |
| Net weight | 68.0 g |
Software
| NovaLCT 5.9.2 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the MRV266 for my LED modules?
The MRV266 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the MRV266?
The MRV266 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We keep over $2 million in inventory at our Titusville, Florida warehouse, and most orders ship same-day. Even if a product shows out of stock on the site, email us before you rule it out — we may have just received a batch we have not logged yet, have reserved units that freed up, or have more arriving within a day, and if not we can usually source it fast. We will check the real count and get right back to you.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the MRV266, contact Olympian LED today.
