NovaStar MCTRL700
High-capacity LED controller with 3.9 million pixels and 6 Ethernet outputs - dual inputs with loop-through for larger installations.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.

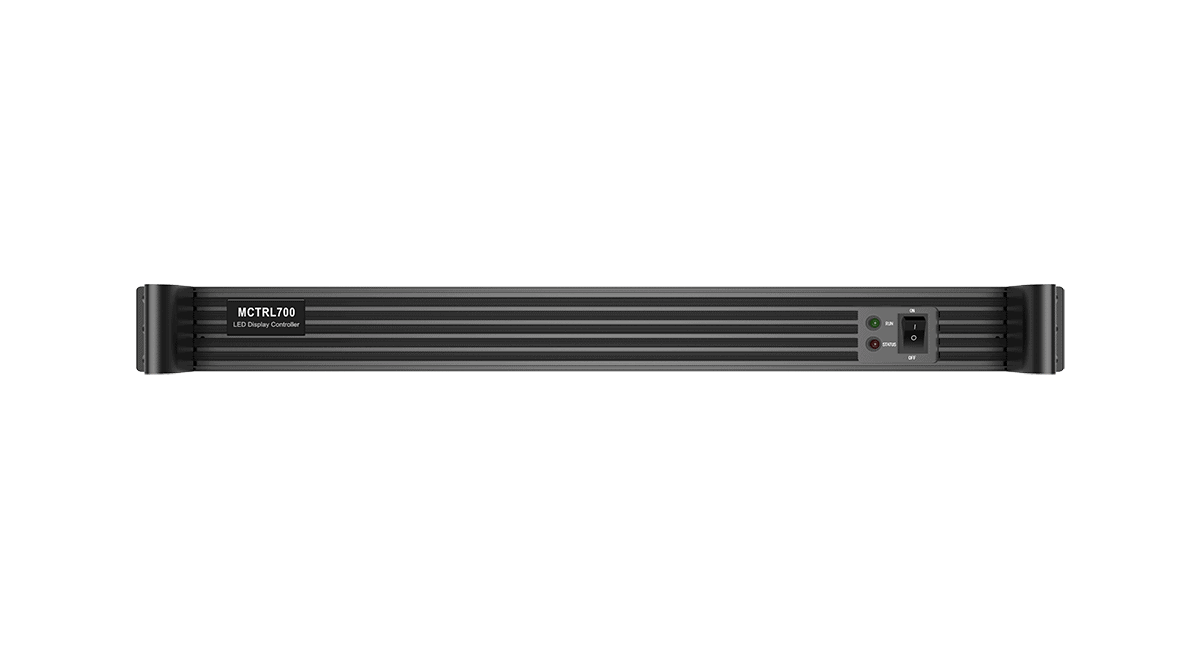

The MCTRL700 is a high-capacity LED display controller designed for larger installations and demanding applications. With 3.9 million pixel capacity and 6 Gigabit Ethernet outputs, it's ideal for substantial video walls in sports venues, convention centers, command and control rooms, and large-scale rental events. The dual input design (SL-DVI + HDMI 1.3) both feature loop-through capability (IN-OUT), making it easy to daisy-chain signals to additional displays or monitors. Both inputs support resolutions up to 1920×1200@60Hz, with audio pass-through for complete multimedia support. Advanced features include pixel-level brightness and chroma calibration for exceptional image quality. Multiple units can be cascaded via UART for massive video wall installations. The MCTRL700 is the go-to choice when you need higher capacity and more outputs than entry-level controllers, with the signal loop-through capability that rental companies and system integrators value.
Key Highlights
Key Features
Technical Specifications
Video Processing
| Maximum Pixels | 3.9 million pixels |
Input Connectors
| DVI | 1x SL-DVI (IN-OUT) |
| HDMI | 1x HDMI 1.3 (IN-OUT) |
| AUDIO | 1x Audio |
Input Resolution Capabilities
| SL-DVI | |
| Standard | Single-link DVI up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 3840 |
| Notes | HDCP 1.4 compliant. Custom resolutions supported. Does NOT support interlaced signal input. |
| HDMI 1.3 | |
| Standard | HDMI 1.3 up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 3840 |
| Notes | HDCP 1.4 compliant. Custom resolutions supported. Does NOT support interlaced signal input. |
Output & Connectivity
| Ethernet Output | 6x Gigabit Ethernet |
Physical Specifications
| Dimensions | 482.0 mm × 268.5 mm × 44.4 mm (19.0" × 10.6" × 1.7") |
| Net weight | 2.6 kg (5.7 lbs) |
| Packing box | 585 mm × 465 mm × 353 mm (23.0" × 18.3" × 13.9") |
Software
| Firmware 4.8.6 | |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
What size LED wall can the MCTRL700 drive?
The MCTRL700 can drive 3.9 million pixels with 6 Ethernet outputs, suitable for medium to large-scale LED displays.
Is the MCTRL700 suitable for rental applications?
Absolutely. The MCTRL700 is designed for professional rental, staging, and touring applications where reliability is critical.
What software controls the MCTRL700?
The MCTRL700 is configured and controlled with NovaLCT, a free download from Olympian LED.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the MCTRL700, contact Olympian LED today.
