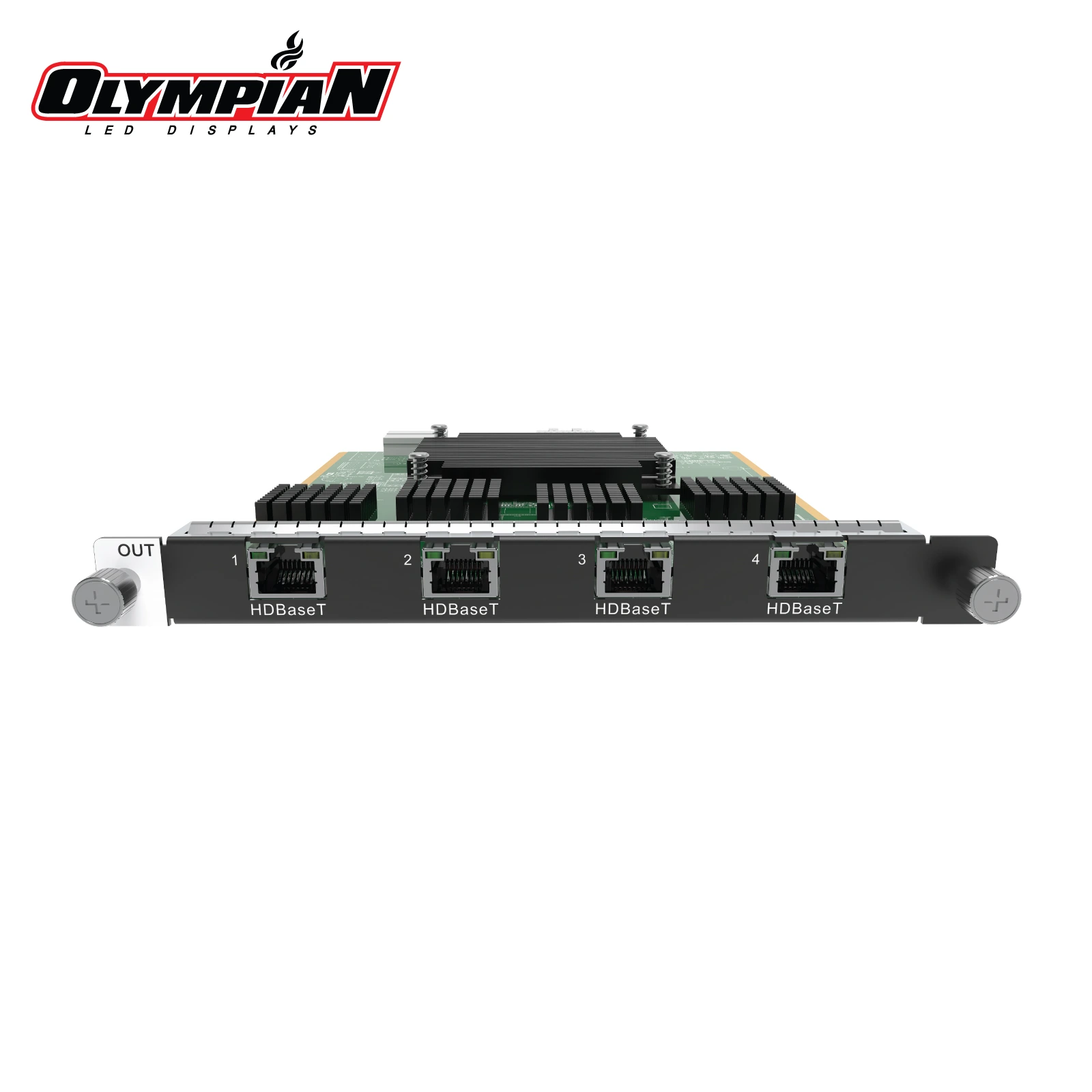

NovaStar H_4 HDBaseT Output Card
A four-output HDBaseT card for H-Series processors that sends processed video over standard Cat (twisted-pair) cabling to remote HDBaseT receivers or displays — well beyond HDMI's reach. It is the choice when output destinations are far from the processor. Compatible with the H2, H5, H9, H15 and H20 modular video wall processors.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Remote displays and projectors far from the processor
Large venues and campuses with long cable runs
Fixed installs where re-cabling with fiber isn't practical
Distributed monitoring to multiple far-end points
Why an HDBaseT output card?
HDMI cables become unreliable past about 15 meters. HDBaseT solves that by sending video over ordinary Cat5e/6 twisted-pair cabling for much longer distances (up to roughly 100 m), to a matching HDBaseT receiver at the far end.
Use this card when the processor's output needs to reach displays or projectors that are far away — across a large venue or campus — without running fiber or adding extenders. Four outputs let you feed several remote destinations from one card.
Key Highlights
Technical Specifications
4x HDBaseT
| Description | Four HDBaseT outputs over Cat5e/6 cabling to compatible receivers/displays |
Specifications
- 4x HDBaseT outputs over standard Cat (twisted-pair) cabling
- Long-distance output to remote HDBaseT receivers/displays (HDBaseT runs up to ~100 m)
- Sends the processor's processed video to far-end destinations beyond HDMI's reach
Frequently Asked Questions
What is this card for?
It outputs the processor's processed video over HDBaseT (Cat cabling) to remote receivers or displays — ideal when destinations are too far for HDMI.
How far can HDBaseT run?
HDBaseT typically reaches up to about 100 m over Cat5e/6 cabling, far beyond HDMI's practical limit.
What do I need at the far end?
A compatible HDBaseT receiver (or HDBaseT-equipped display) to convert the signal back to HDMI for the display.
How many outputs does it have?
Four HDBaseT outputs on a single card.
Which processors is it compatible with?
The H2, H5, H9, H15 and H20 modular video wall processors.
