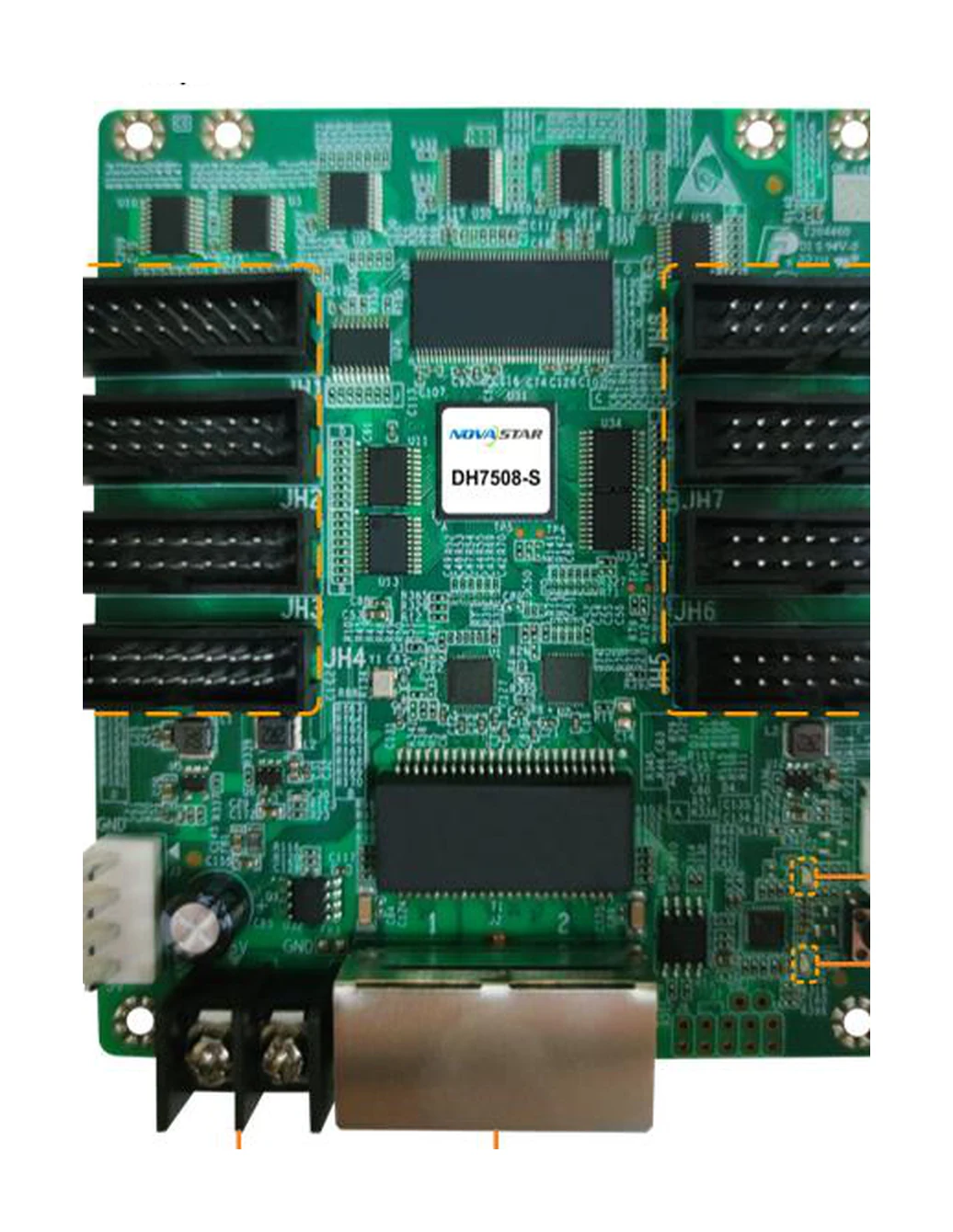

NovaStar DH7508-S
The DH7508-S is a cost-effective receiving card developed by NovaStar.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The DH7508-S is a cost-effective receiving card developed by NovaStar. Supporting various functions such as brightness calibration, quick adjustment of dark or bright lines, multi-batch adjustment, 3D, individual gamma adjustment for RGB, and 90° image rotation, the DH7508-S can significantly improve the display effect and user experience. The DH7508-S uses 8 standard HUB75E connectors for high stability communication and supports up to 16 groups of parallel RGB data. Thanks to its EMC compliant hardware design, the DH7508-S has improved electromagnetic compatibility and is suitable for various on-site setups. For PWM driver ICs, the maximum load capacity per card is 512×512@60Hz; for common driver ICs, the maximum load capacity per card is 512×384@60Hz.
Key Highlights
Key Features
Technical Specifications
Physical Specifications
| Power Input | DC 3.8 V to 5.5 V |
| Dimensions | 95.5 mm × 109.0 mm × 19.4 mm (3.8" × 4.3" × 0.8") |
| Net weight | 72.4 g |
| Packing box | 625.0 mm × 180.0 mm × 470.0 mm (24.6" × 7.1" × 18.5") |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features — each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.2 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the DH7508-S for my LED modules?
The DH7508-S is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the DH7508-S?
The DH7508-S works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We keep over $2 million in inventory at our Titusville, Florida warehouse, and most orders ship same-day. Even if a product shows out of stock on the site, email us before you rule it out — we may have just received a batch we have not logged yet, have reserved units that freed up, or have more arriving within a day, and if not we can usually source it fast. We will check the real count and get right back to you.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the DH7508-S, contact Olympian LED today.
