NovaStar DH3208

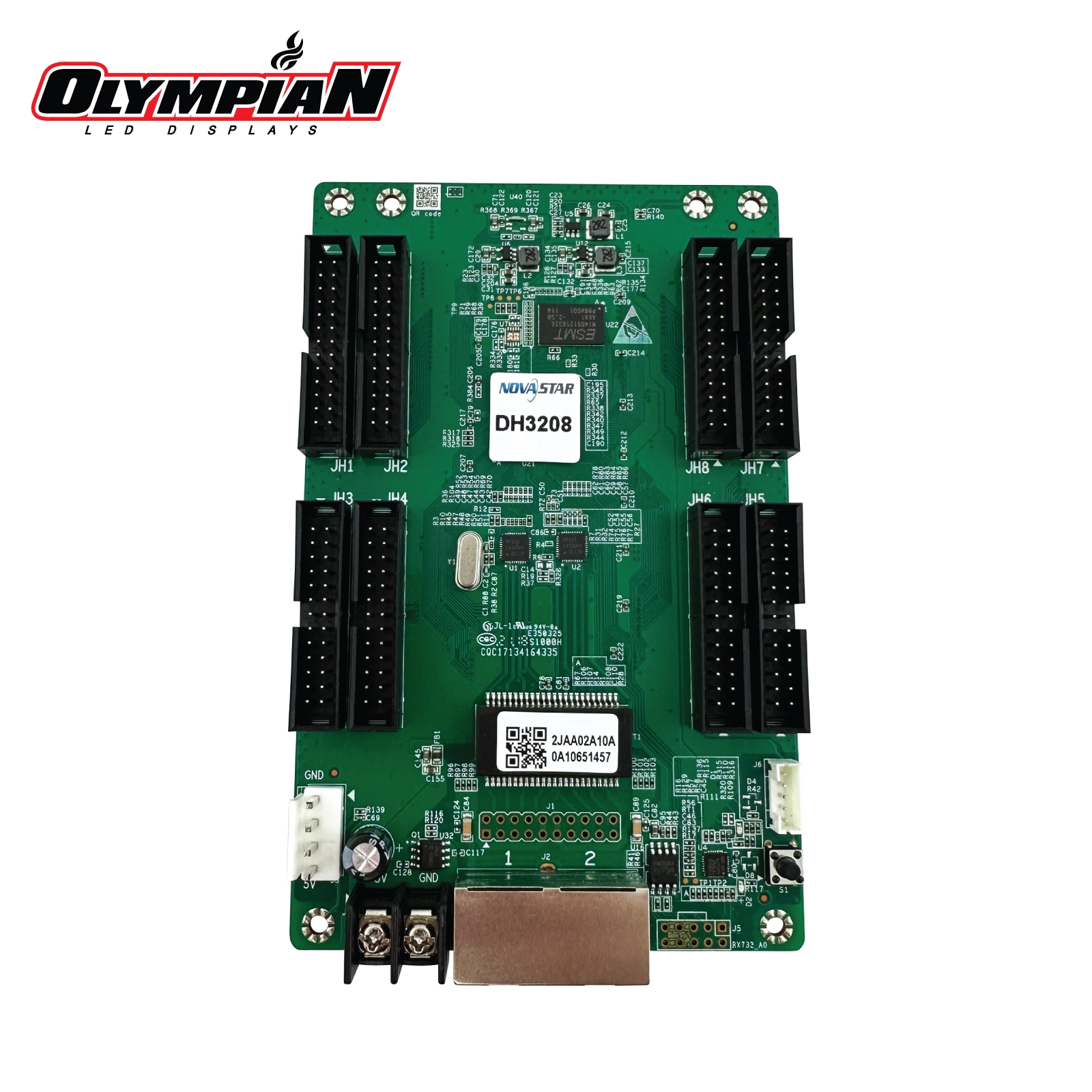

The DH3208 is a general receiving card developed by NovaStar.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
The DH3208 is a general receiving card developed by NovaStar. For PWM driver ICs, a single DH3208 supports resolutions up to 512×512@60Hz. For common driver ICs, a single DH3208 supports resolutions up to 512×384@60Hz. Supporting various functions such as color management, 18bit +, pixel level brightness and chroma calibration, quick adjustment of dark or bright lines, 3D, individual gamma adjustment for RGB, and image rotation in 90° increments, the DH3208 can significantly improve the display effect and user experience. The DH3208 uses 8 HUB320 connectors for communication.
Key Highlights
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 145.7 mm × 91.5 mm × 18.3 mm (5.7" × 3.6" × 0.7") |
| Net weight | 100.0 g |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features — each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the DH3208 for my LED modules?
The DH3208 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the DH3208?
The DH3208 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
