NovaStar CA50E

Name: NovaStar CA50E
Brand: NovaStar
SKU: CA50E
Availability: InStock

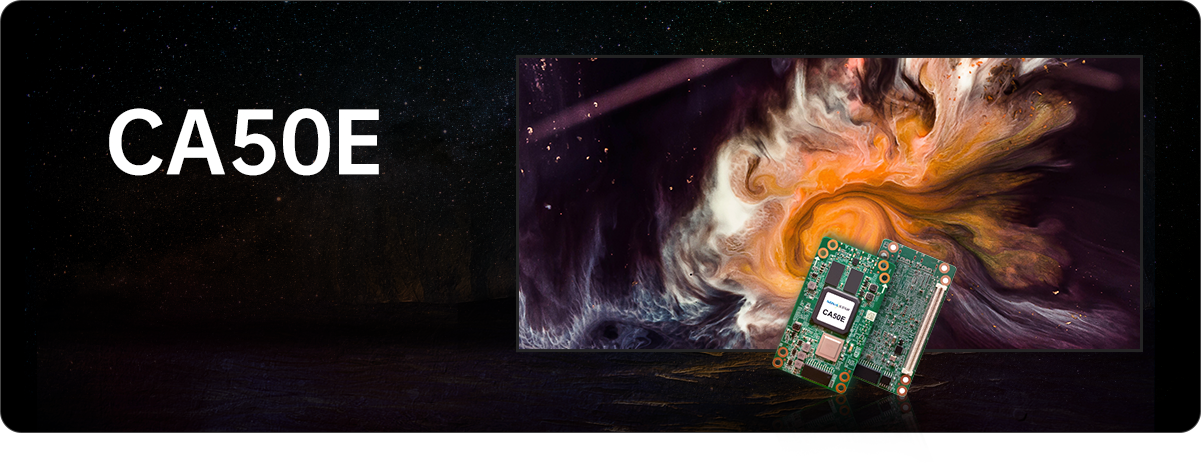

The CA50E is a high-end 5G receiving card in the new-generation control system COEX series of Xi’an NovaStar.

Contact for Pricing

✓ Usually In StockShips from our Florida warehouse - contact to confirm lead time

Request a Quote

📄 Specifications V1.1.1

🛡️ 3-Year NovaStar Warranty
📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

The CA50E is a high-end 5G receiving card in the new-generation control system COEX series of Xi’an NovaStar. For 8-bit and 10-bit video sources, a single CA50E supports resolutions up to 768×512@60Hz. For 12-bit video sources, a single CA50E supports resolutions up to 512×4 80@60Hz. This receiving card supports the exclusive Thermal Compensation 2.0, Dynamic Booster, Full Grayscale Calibration and LED Image Booster technologies of NovaStar. It also supports the HDR, Frame Rate Adaptive 3.0, Shutter Fit, quick adjustment of dark or bright lines, low latency, the pixel level brightn ess and chroma calibra tion, 3D, image rotation in 90° increments, and more, greatly improving the brightness, grayscale and color performance from every aspect and offering users an ultimate visual experience with a uniform, smooth and lifelike image.

Key Highlights

Pixel-level brightness & chroma calibration

Key Features

HDR

Tone-maps HDR sources onto the wall's own brightness range instead of clipping the highlights.

Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.

Low Latency

Shortens the processing pipeline for live camera-to-wall work. Mutually exclusive with some scaling and effect features.

Backup

Redundancy so one failure does not black the wall - a backup device, backup input source, backup Ethernet port, OPT-to-Ethernet failover, or dual receiving cards, depending on the model.

Color Calibration

Per-pixel correction of the brightness and colour differences between modules and cabinets, so a wall built from mixed batches reads as one panel.

Full-Grayscale Calibration

Thermal Compensation 2.0

Mapping 2.0

Image Booster

Dynamic Booster

Grayscale Calibration

Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Physical Specifications

Dimensions	80.0 mm × 45.0 mm × 8.6 mm (3.1" × 1.8" × 0.3")
Net weight	25.5 g

Software

NovaLCT 5.9.1
Compatible Software	NovaLCT

Frequently Asked Questions

How do I configure the CA50E for my LED modules?

The CA50E is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.

What controllers work with the CA50E?

The CA50E works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
