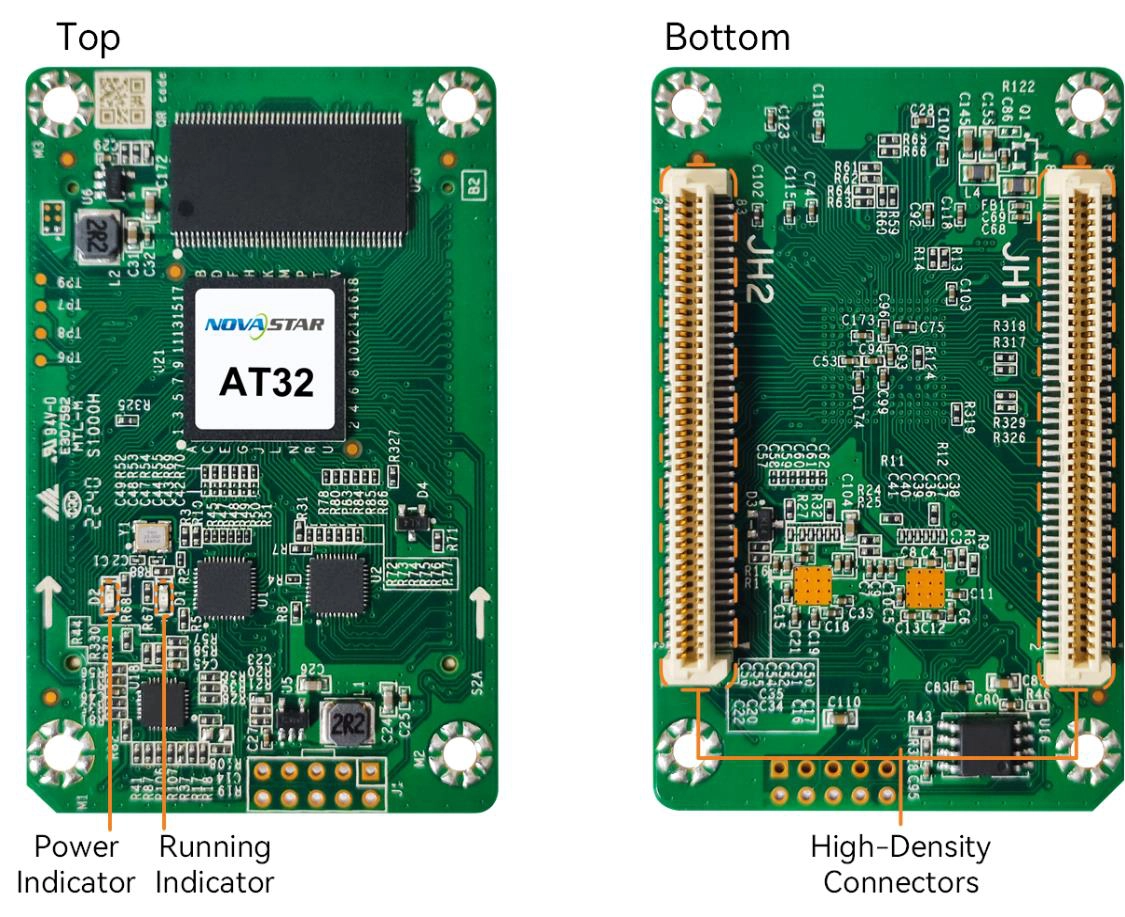

NovaStar AT32
Supporting various functions such as Pixel Level Brightness and Chroma Calibrati on, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the AT32 can significantly improve the display effect and user experience.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Supporting various functions such as Pixel Level Brightness and Chroma Calibrati on, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the AT32 can significantly improve the display effect and user experience. The AT32 uses high-density connectors for comm unication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware design, the AT32 has improved electromagnetic compatibility and is suitable for various on-site setups.
Key Highlights
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 70.0 mm × 45.0 mm × 8.7 mm (2.8" × 1.8" × 0.3") |
| Net weight | 16.5 g |
| Packing box | 378.0 mm × 190.0 mm × 120.0 mm (14.9" × 7.5" × 4.7") |
Software
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the AT32 for my LED modules?
The AT32 is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the AT32?
The AT32 works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
