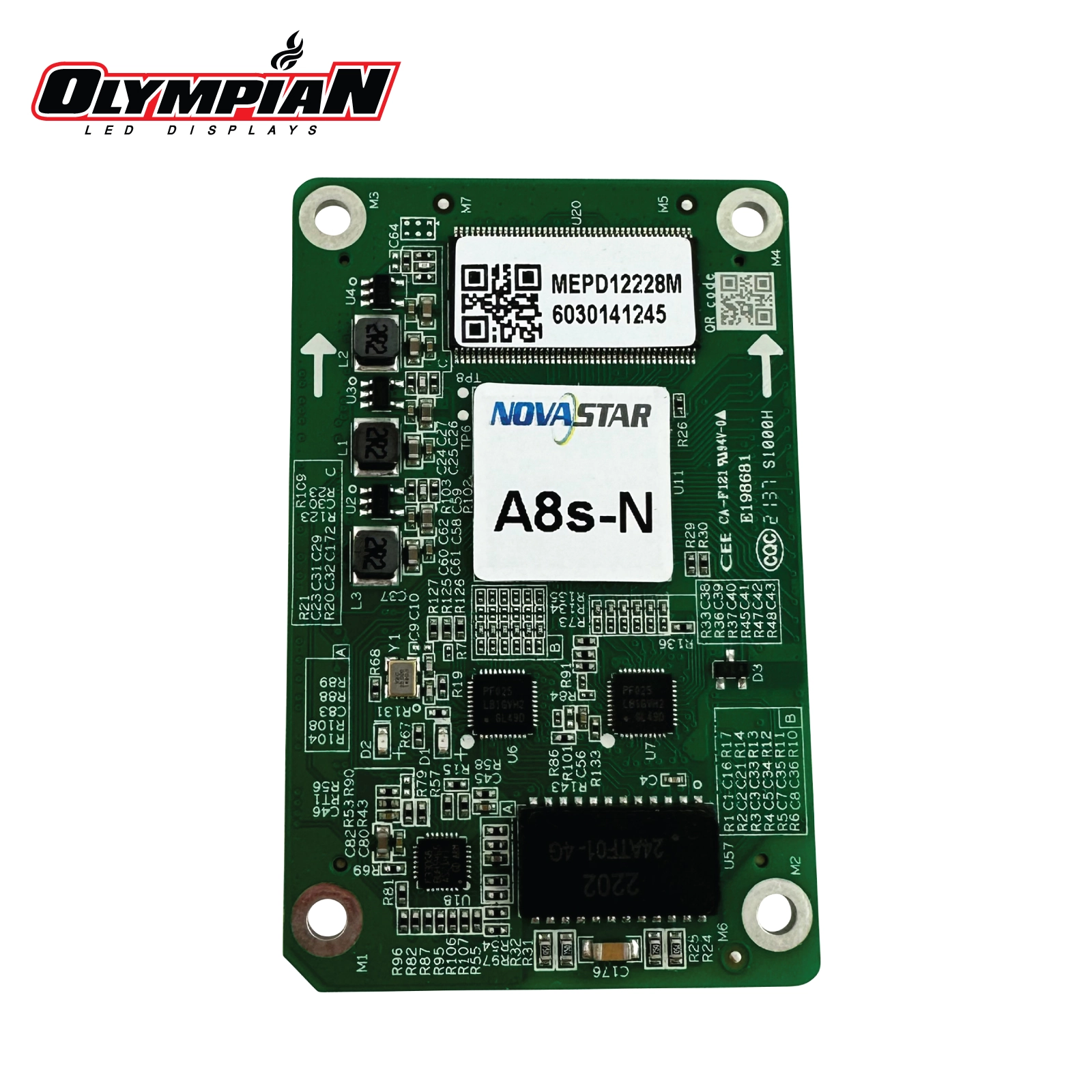

NovaStar A8s-N
Supporting the exclusive Image Booster technology of NovaStar, the A8s-N can precisely calibrate the color gamut and grayscale of the screen, and improve the grayscale by 64 times.
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
Supporting the exclusive Image Booster technology of NovaStar, the A8s-N can precisely calibrate the color gamut and grayscale of the screen, and improve the grayscale by 64 times. With other various functions, such as HDR, Pixel Level Brightnes s and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Low Latency, 3D, Individual Gamma Adjustment for RGB, 90° Image Rotation, and Free Image Rotation, this receiving card can greatly improve the brightness, grayscale and color performance from every aspect, offering users an ultimate visual experience with a uniform, smooth and lifelike image. The A8s-N uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users.
Key Highlights
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 70.0 mm × 45.0 mm × 8.1 mm (2.8" × 1.8" × 0.3") |
| Net weight | 18.7 g |
| Packing box | 392.0 mm × 200.0 mm × 123.0 mm (15.4" × 7.9" × 4.8") |
Load Capacity
| PWM Driver ICs | 512×384@60Hz (8-bit) · 512×256@60Hz (10/12-bit) |
| Common Driver ICs | 512×384@60Hz (8-bit) · 512×256@60Hz (10/12-bit) |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features — each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the A8s-N for my LED modules?
The A8s-N is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the A8s-N?
The A8s-N works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the A8s-N, contact Olympian LED today.
