NovaStar A6s

Name: NovaStar A6s
Brand: NovaStar
SKU: A6s
Availability: OutOfStock

EOL

The A6s is a general small receiving card developed by NovaStar.

End of Life - No Longer Available

A6s is currently out of stock

Our warehouse count is zero right now. Contact us for the next delivery date and recommended alternatives.

Check Lead Time & Pricing Call 321-747-3220

📄 Specifications V1.0.1

This product is end-of-life and no longer available for purchase. Contact us about current alternatives.

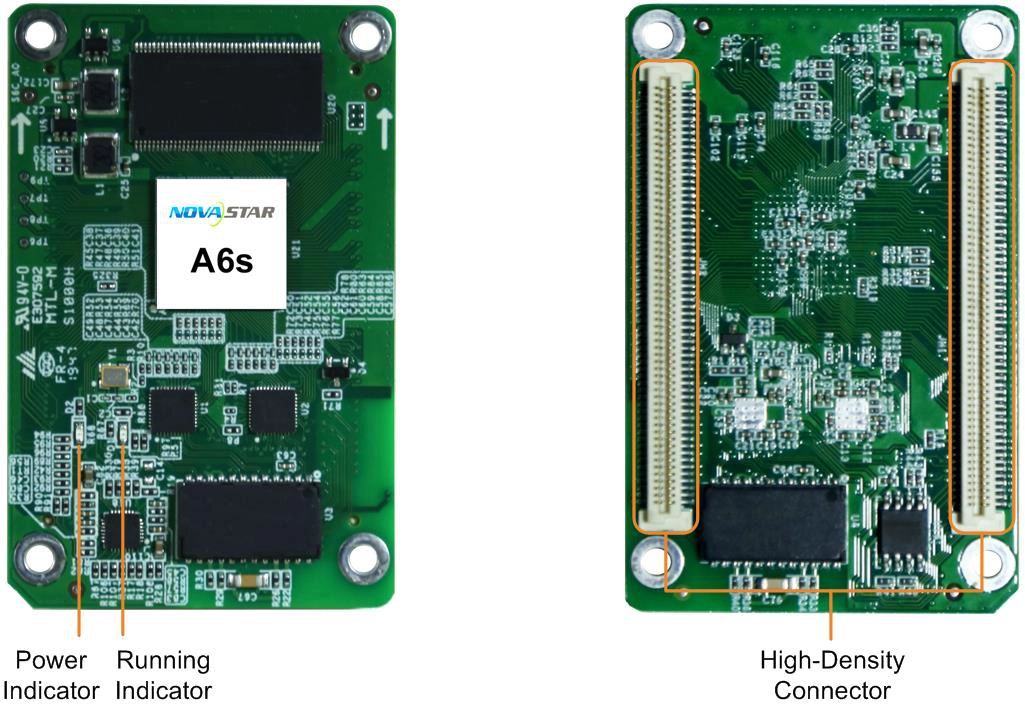

The A6s is a general small receiving card developed by NovaStar. A single A6s loads up to 512×256 pixels. With various highlights such as pixel level brightness and chroma calibration, individual Gamma adjustment for RGB, 3D function, 18bit+ and low latency, the A6s can greatly improve the display effect and user experience. The A6s uses high-density connector s for communication to limit effects of dust and vibration, resulting in high stability and reliability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (extendable to 128 groups of serial data).

Key Highlights

Pixel-level brightness & chroma calibration

Key Features

Drives active 3D glasses through a 3D emitter. Side-by-Side and Top-and-Bottom sources halve the output capacity.

Low Latency

Shortens the processing pipeline for live camera-to-wall work. Mutually exclusive with some scaling and effect features.

Backup

Redundancy so one failure does not black the wall - a backup device, backup input source, backup Ethernet port, OPT-to-Ethernet failover, or dual receiving cards, depending on the model.

Color Calibration

Per-pixel correction of the brightness and colour differences between modules and cabinets, so a wall built from mixed batches reads as one panel.

18bit+

Pixel-Level Brightness and Chroma Calibration

Technical Specifications

Output & Connectivity

Ethernet Output

2x Gigabit Ethernet

See per-port loading capacity

Refresh	8-bit / port	8-bit / all 2 ports	10/12-bit / port	10/12-bit / all 2 ports
60 Hz	659,722	1,319,444	329,861	659,722
120 Hz	329,861	659,722	164,930	329,860
240 Hz	164,930	329,860	82,465	164,930

Physical Specifications

Dimensions	70.0 mm × 45.0 mm × 7.9 mm (2.8" × 1.8" × 0.3")
Net weight	16.2 g

Software

NovaLCT 5.9.1
Compatible Software	NovaLCT

Frequently Asked Questions

How do I configure the A6s for my LED modules?

The A6s is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.

What controllers work with the A6s?

The A6s works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.

What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
