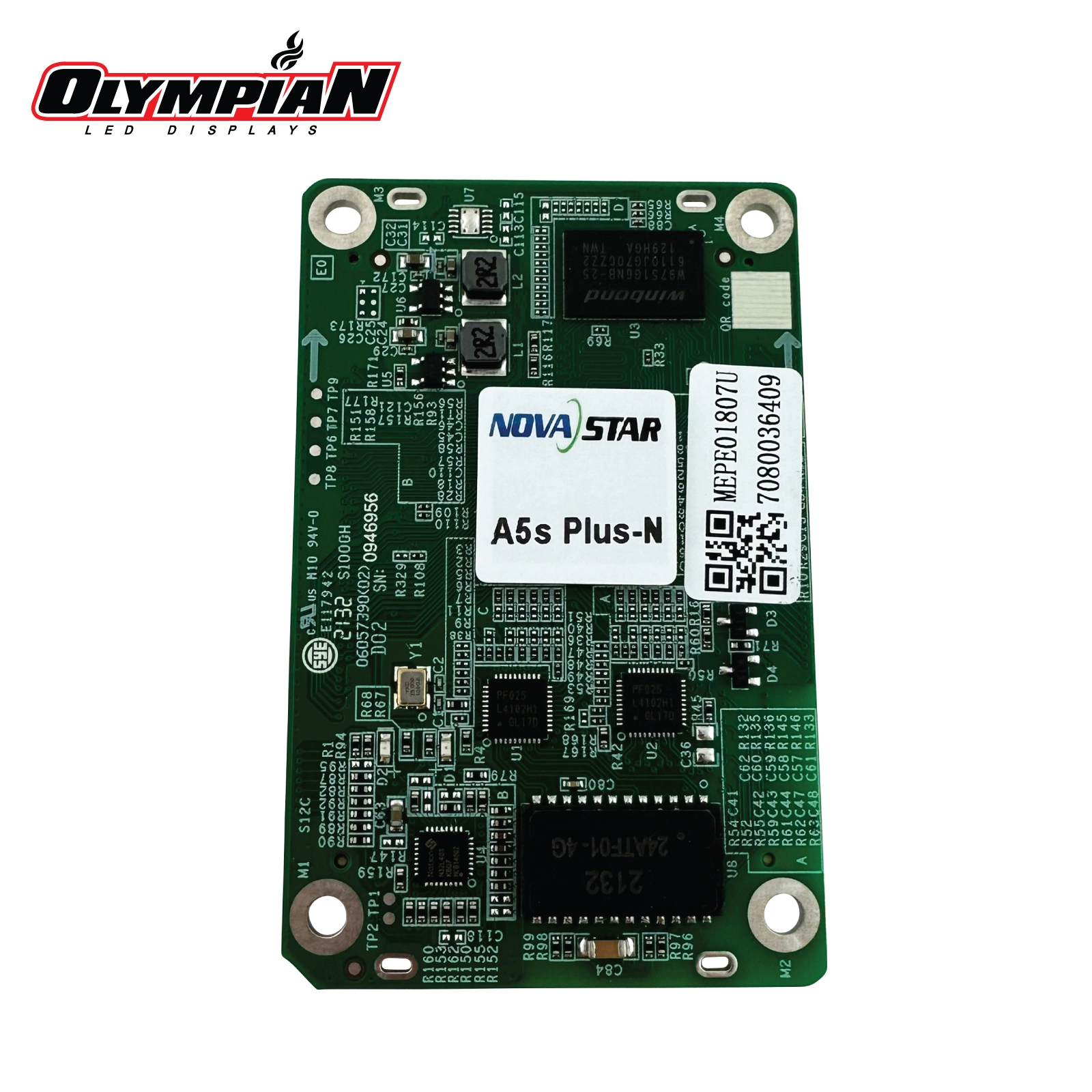

NovaStar A5s Plus-N
A single A5s Plus-N supports resolutions up to 512×384@60Hz (NovaLCT V5.3.1 or later required).
Retail first-order promo only. Dealer, custom-pricing, and terms accounts cannot combine this with special pricing.
A single A5s Plus-N supports resolutions up to 512×384@60Hz (NovaLCT V5.3.1 or later required). Supporting various functions such as color management, 18bit+, pixel level brightness and chroma calibration, quick adjustment of dark or bright lines, low latency, 3D, individual gamma adjustment for RGB, and image rotation in 90 increments, the A5s Plus-N can significantly improve the display effect and user experience. The A5s Plus-N uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users.
Key Highlights
Key Features
Technical Specifications
Physical Specifications
| Dimensions | 70.0 mm × 45.0 mm × 8.0 mm (2.8" × 1.8" × 0.3") |
| Net weight | 17.2 g |
Software
| Receiving Card Firmware | Don't upgrade unless you have a specific reason to. Receiving-card firmware is not like a controller update that adds features — each version simply supports a different group of driver ICs. Flash only the version that matches your panel's driver IC; if your screen already works, leave it alone. Find your driver IC to see the exact version, or upload your config and we'll read it. |
| NovaLCT 5.9.1 | |
| Compatible Software | NovaLCT |
Frequently Asked Questions
How do I configure the A5s Plus-N for my LED modules?
The A5s Plus-N is configured with an RCFG configuration file loaded through NovaLCT (Screen Configuration, Receiving Card, Load Configuration File, then Save to Hardware). Your module or sign manufacturer supplies the file, or read it back from a working card. Olympian LED hosts a free browser-based RCFGX viewer at olympianled.com/tools/rcfgx-viewer to inspect any config file.
What controllers work with the A5s Plus-N?
The A5s Plus-N works with the full NovaStar sending lineup: VX all-in-one controllers, COEX MX controllers, MCTRL sending boxes, and Taurus multimedia players. Match the receiving-card firmware to your driver IC generation.
What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Ready to Get Started?
For pricing, availability, or technical questions about the A5s Plus-N, contact Olympian LED today.
